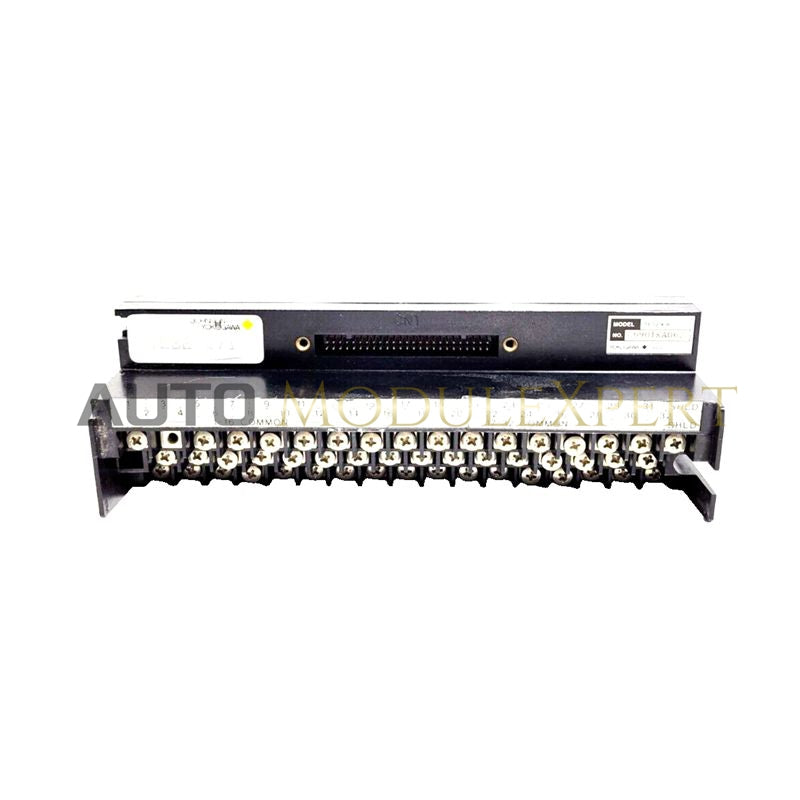

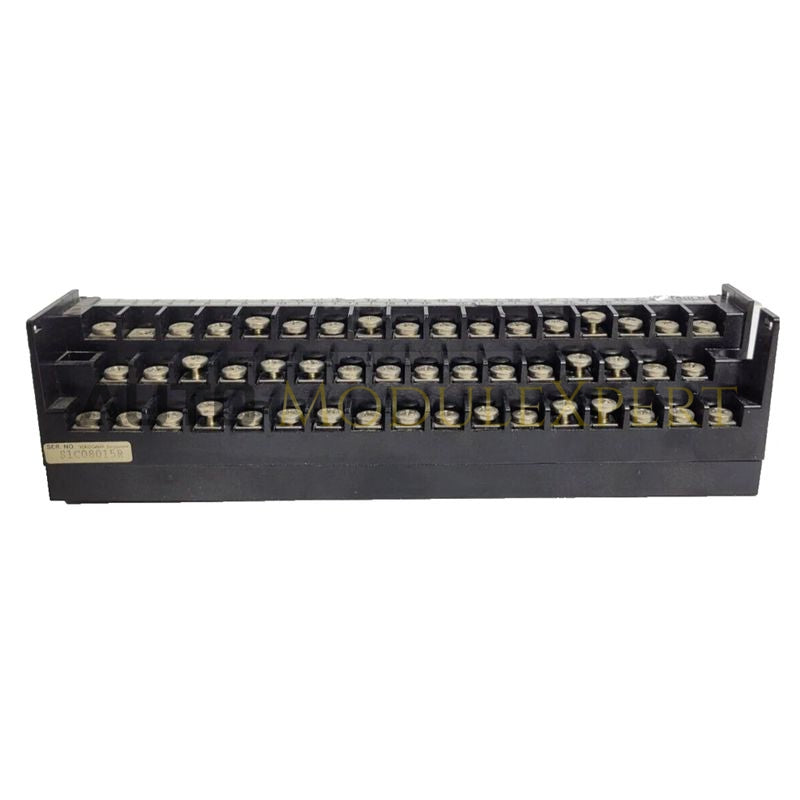

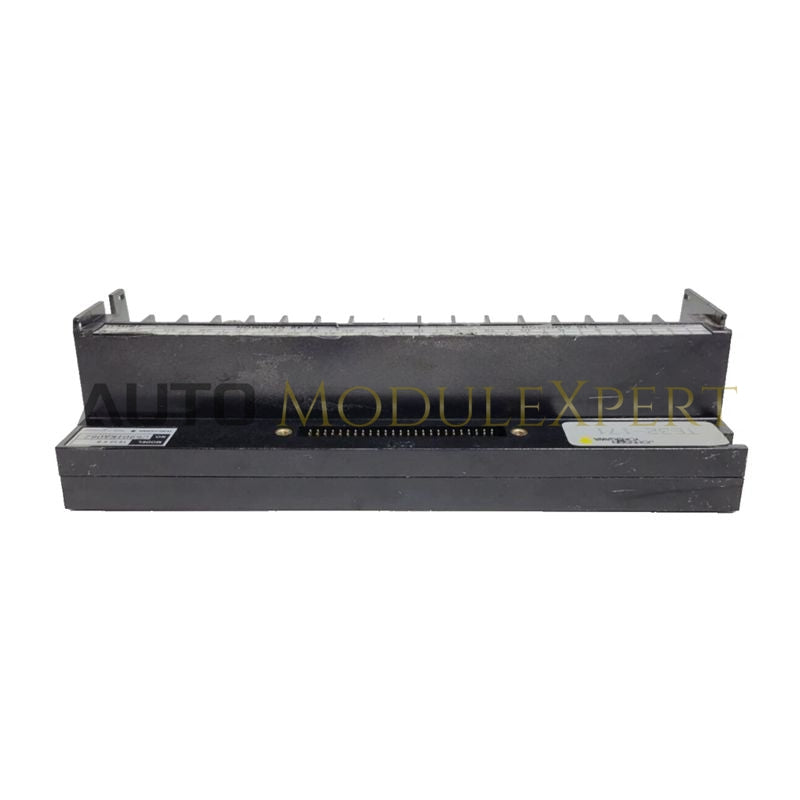

YOKOGAWA TE32 Terminal Block Module
Configured for multi-channel field signal termination in CENTUM VP and ProSafe-RS control architectures, the YOKOGAWA TE32 (TE32 Terminal Block) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TE32 |
| Brand | YOKOGAWA |
| Origin | Japan |
| Weight | 0.2 kg |
| Dimensions | Standard CENTUM VP / ProSafe-RS terminal footprint |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive component (0 W) |
| Function | Terminal block |
| Terminal Count | 32 termination points |
| System Compatibility | CENTUM VP and ProSafe-RS I/O systems |
Channel-to-Channel Isolation & 4-20 mA HART Loop Protocol Execution
The terminal block maintains individual physical conductor routing pathways that preserve channel-to-channel isolation specs established by connected analog and discrete I/O modules. When routing 4-20 mA HART loop protocol signals through the 32 termination points, internal copper traces minimize impedance shifts and signal attenuation. This ensures clean HART digital FSK modulation overlay transmission across analog current loops without introducing crosstalk or signal degradation between adjacent processing channels.
Frequently Asked Questions
Q: Does the TE32 terminal block require external power supply feeds for passive signal passthrough?
A: No. The TE32 is a passive termination interface that routes analog and discrete field cabling directly to I/O module connectors without consuming internal backplane or loop power.
Q: How does the module prevent wiring strain from damaging internal connector pins?
A: Integrated mechanical cable anchor points and screw-down terminal clamps secure individual field wires, distributing physical tension away from internal backplane connections.
Field Installation Guidelines
Verify that field signal lines are de-energized before connecting wires to the terminal assembly. Align the terminal housing with the DIN-rail or rack interface slot and press until the locking tabs snap into place.
For signal conductor landing and cabinet wiring:
- Strip field wire insulation to 7 mm and insert solid or ferruled conductors directly into the screw-clamp terminal slots.
- Tighten terminal screws to specified torque limits using an insulated screwdriver to maintain low-resistance contact and prevent thermal hot spots.
- Keep field signal lines, especially 4-20 mA HART loops, separated from high-voltage AC power cables in dedicated wiring ducts.
- Fasten overall cable shield drain wires directly to the cabinet enclosure copper earth busbar using low-impedance ground clamps.
