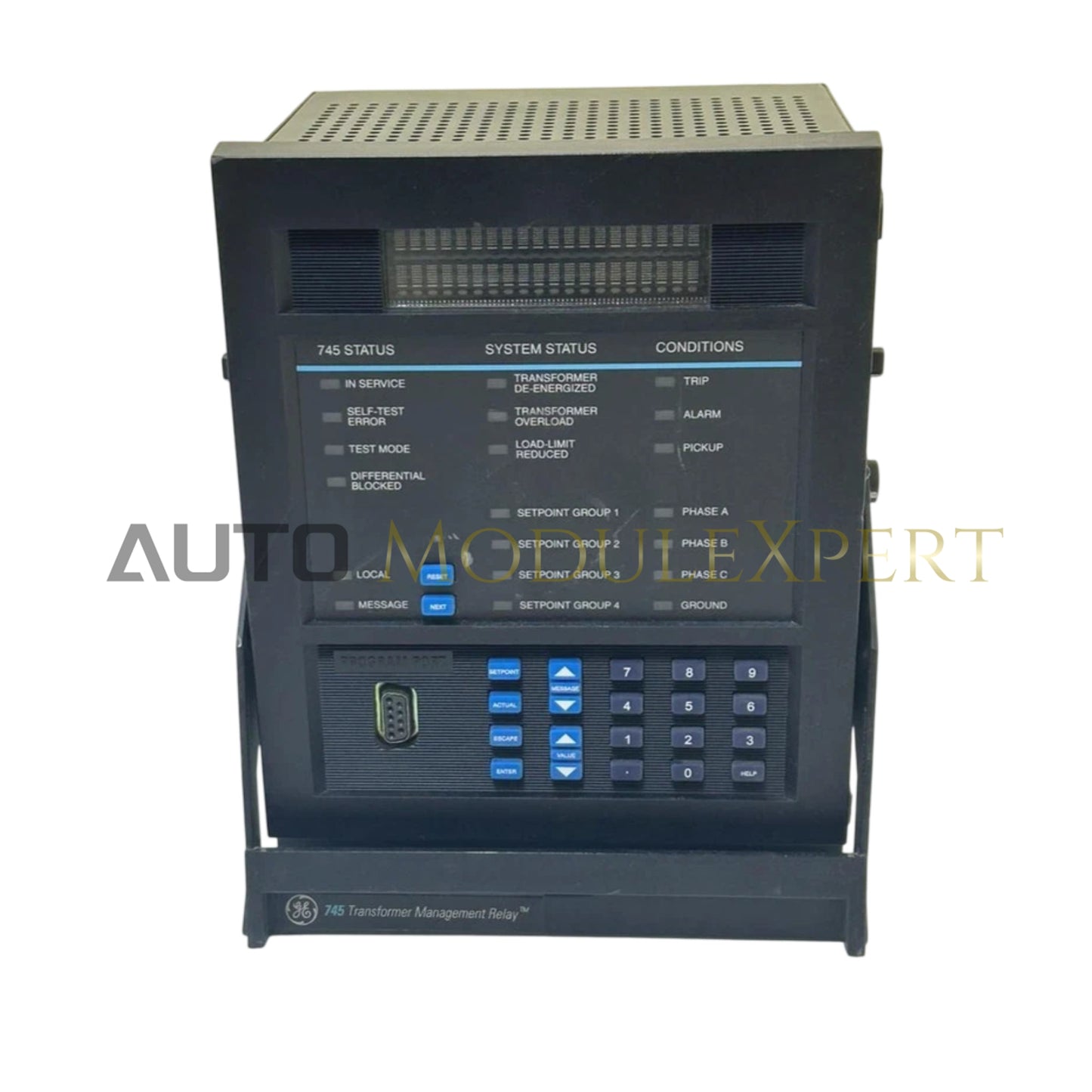

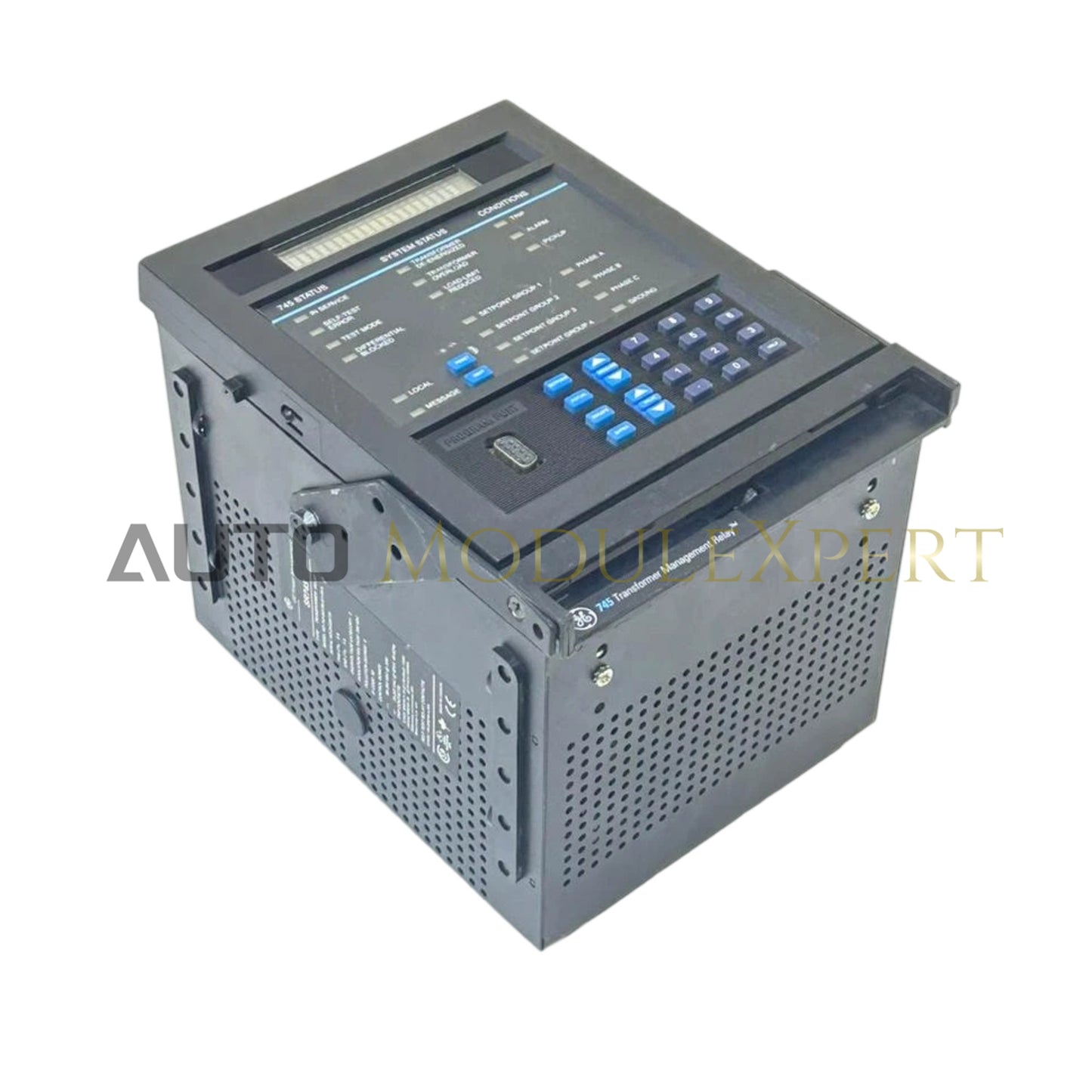

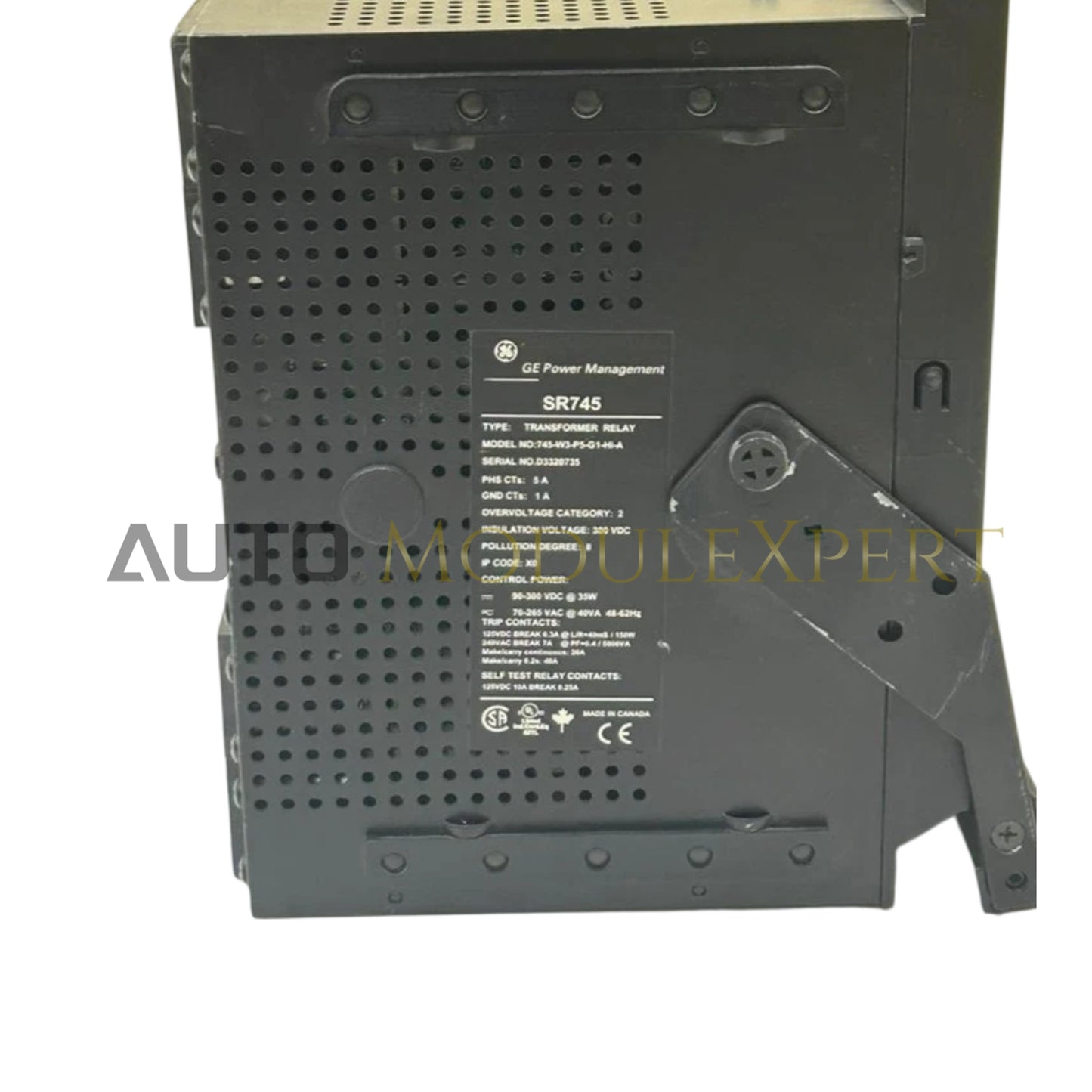

The GE Multilin SR745-W3-P5-G5-LO-A, also cataloged as the SR745 Transformer Protection Relay, operates as a dedicated hardware component for primary and backup electrical fault detection within transformer network platforms.

Suffix Breakdown & Model Matrix

• SR745: Base series for transformer protection.
• W3: Three-winding transformer application configuration.
• P5: 5 A nominal current input rating for current transformer (CT) interfaces.
• G5: Control power supply and communication capability configuration.
• LO: Low voltage power supply option (40–60 VDC / 20–48 VAC).
• A: Standard firmware and hardware revision level.

Hardware Specifications

Industrial Control Deterministic Network Connectivity

The SR745 utilizes high-speed firmware flash compatibility to support protocol updates for system integration. The deterministic network performance is optimized for DNP 3.0 Level 2 and Modbus communication, ensuring low-latency data polling across SCADA links. I/O density scaling and processing cycles are managed to ensure protection trip logic execution remains independent of communication load, preventing command execution delays during network congestion.

Frequently Asked Questions

Q: Does the relay support hot-swapping of the draw-out module?

A: The draw-out design allows for physical module removal; however, all current transformer (CT) secondary circuits must be shorted using the integrated CT shorting mechanism before the module is extracted to prevent lethal voltage generation and equipment damage.

Q: Can the 1 A and 5 A current input ratings be mixed on the same unit?

A: The input rating is configurable per CT input channel. Users must ensure that the hardware settings and firmware configuration match the specific physical current transformer secondary connection to avoid protection blinding or nuisance tripping.

Field Installation Guidelines

• Ensure the chassis is securely panel-mounted with adequate depth for the draw-out mechanism operation.
• Verify all ground connections to the rear terminal block are tight and use low-impedance conductors to provide a robust reference for surge suppression.
• Confirm the control power source polarity (for DC) or voltage/frequency (for AC) matches the "LO" suffix specifications before applying power.
• Route all communication cabling through dedicated conduits, separated from high-current power cables, to minimize electromagnetic interference (EMI) on the RS-485/Ethernet interfaces.
• Install physical ferrules on all wire terminations to ensure secure contact in the relay terminal blocks and prevent thermal hot spots.
