Product Description

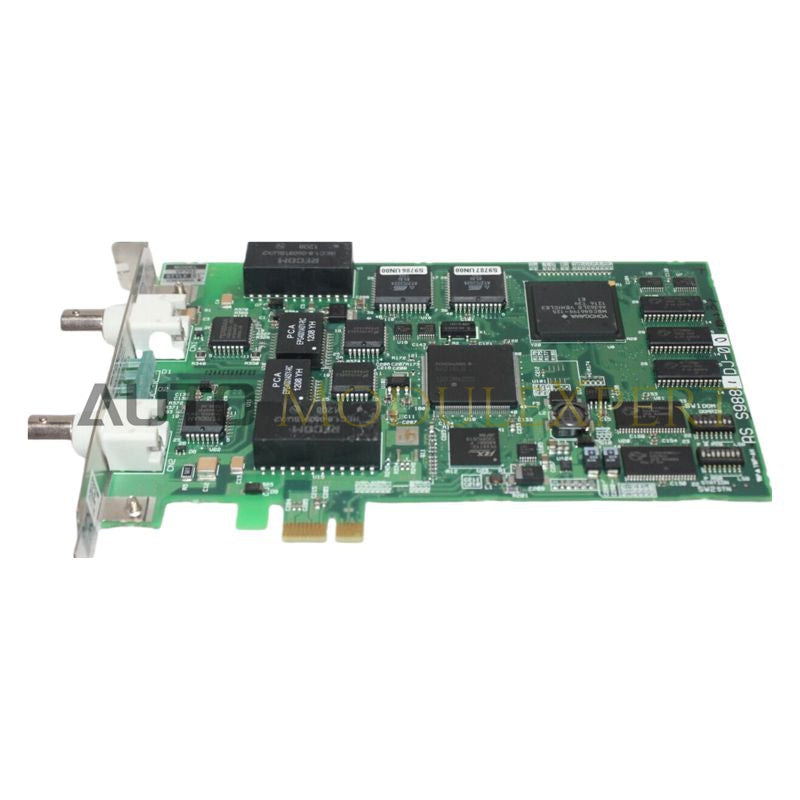

The VF702 S1 is a high-performance communication interface card that connects PC/AT-compatible workstations (HIS/ENG) to the Yokogawa V net control bus. Designed for legacy and specialized CENTUM systems, it provides a deterministic, coaxial-based communication path for reliable process data exchange.
Built on PCI Express (PCIe), the VF702 S1 supports modern workstation integration while maintaining compatibility with 10BASE-2 coaxial networks, making it ideal for upgrading or extending existing V net infrastructures.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | VF702 S1 |
| Module Type | V net Control Bus Interface Card |
| Bus Architecture | PCI Express (PCIe) CEM 1.0a compliant |
| Bus Signaling | x1 lane at 2.5 GT/s (compatible with x1, x4, x8, x16 slots) |
| Communication Standard | 10BASE-2 Coaxial |
| Physical Connector | BNC connector port |
| Wiring Compatibility | YCB146 coaxial cable with T-type connector |
| Maximum Transmission Distance | 185 meters per segment via 10BASE-2 cable |
| Input Voltage | 3.3 V DC ±9% |
| Maximum Current Draw | 2.4 A |
| Hardware Revision | S1 |
| Module Weight | 0.15 kg |
Application Scenarios
-
Legacy DCS Integration: Connect modern operator consoles to existing V net coaxial backbones in older CENTUM systems.
-
Engineering Station Upgrades: Provide a stable communication link for configuration and maintenance tasks on new PC hardware.
-
Redundant Control Links: Install multiple VF702 S1 cards per workstation to enable fault-tolerant communication paths to FCS units.
Product FAQ
Q: Can the VF702 S1 be used in standard PCI slots?
A: No, it is strictly a PCI Express (PCIe) card and cannot be installed in legacy 32-bit or 64-bit PCI slots.
Q: What cabling is required for proper operation?
A: Requires high-quality 10BASE-2 coaxial cables (Yokogawa YCB146) with T-type BNC connectors for bus termination and signal propagation.
