Product Description

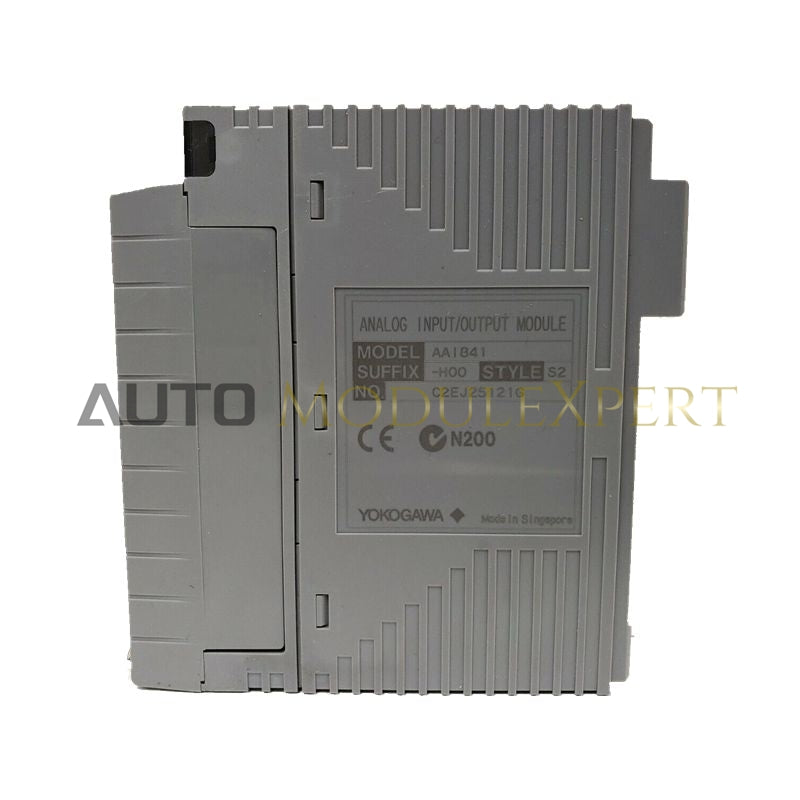

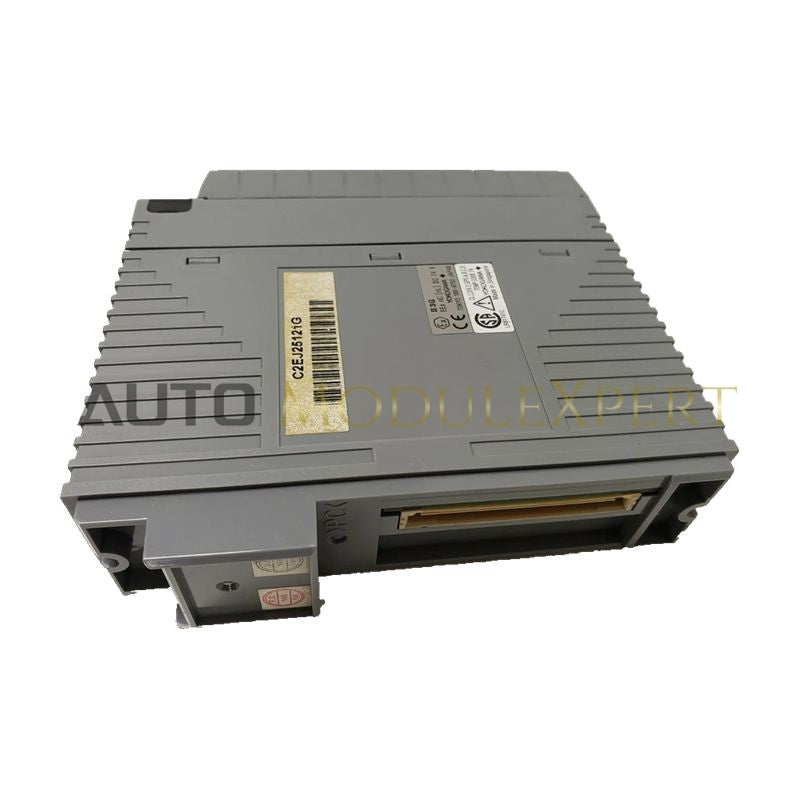

The AAI841 (P/N: AAI841-S00/K4A00) is a high-density analog interface module for the Yokogawa CENTUM VP distributed control system. It provides 8 dedicated current input channels and 8 dedicated current output channels (16 total) within a single slot, enabling both sensing and actuation in a compact footprint.
As a Standard (S-suffix) variant, the module is optimized for high-speed, reliable 4–20 mA signal transmission without HART digital communication. Its non-isolated (common ground) architecture allows maximum channel density while the ATK4A-00 KS cable interface (K4A00 option) provides plug-and-play connectivity to terminal boards, simplifying cabinet assembly and minimizing footprint.
Technical Specifications
| Item | Specification |
|---|---|
| Input Channels | 8 × analog current input |
| Output Channels | 8 × analog current output |
| Signal Range | 4 to 20 mA DC |
| Common Mode Architecture | Non-isolated, channels share common ground |
| System Connectivity | ATK4A-00 KS Cable Interface Adapter for AEA4D/AED4D terminal boards |
| Input Accuracy | ±16 µA |
| Output Accuracy | ±48 µA |
| Input Resistance | 250 Ω to 500 Ω (dynamic based on signal state) |
| Allowable Input Current | Up to 25 mA continuous |
| Withstanding Voltage | 500 V AC for 1 minute (I/O to system) |
| Configuration Type | Basic type, non-explosion protected (S00) |
| Data Refresh Speed | Optimized for real-time control in FIO nodes |
| Module Weight | 0.3 kg |
Application Use Cases
The AAI841-S00/K4A00 is ideal for:
-
Utility management systems
-
Water treatment facilities
-
Industrial HVAC and process control
Its 16-channel density makes it perfect for space-constrained cabinets where multiple control loops (e.g., pressure monitoring with pump speed control) need to be integrated without sacrificing reliability.
FAQ
What is the primary advantage of the AAI841 over the AAI835?
The AAI841 provides double the I/O capacity (8-in/8-out vs 4-in/4-out) but is non-isolated, whereas the AAI835 offers full channel-to-channel isolation.
Can I use this module with smart transmitters?
Yes, it will read 4–20 mA analog signals from smart transmitters. However, HART digital communication is not supported; for HART capability, choose the H-suffix version (AAI841-Hxx).
