Product Description

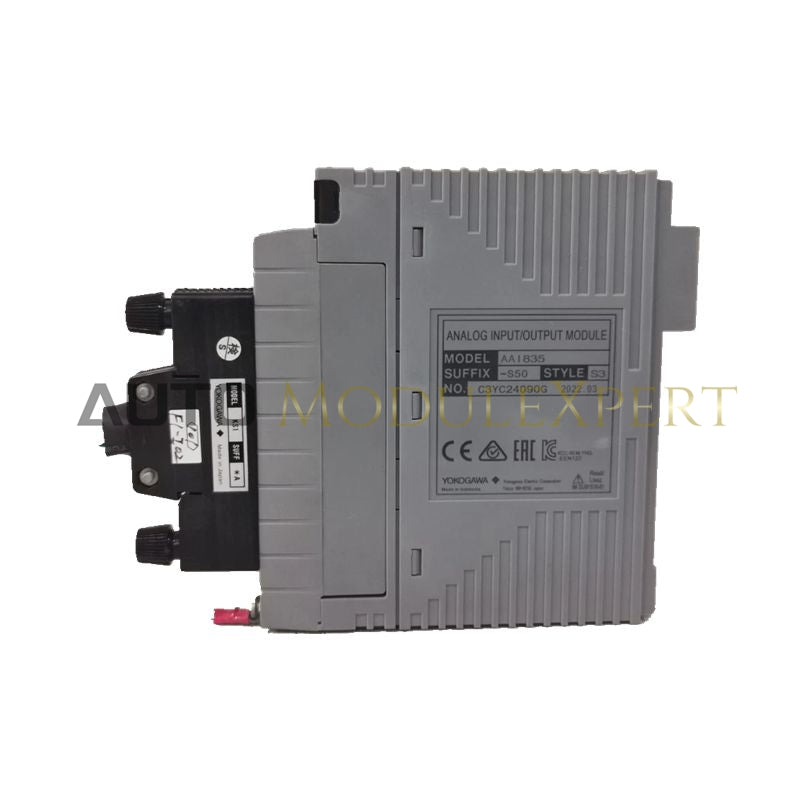

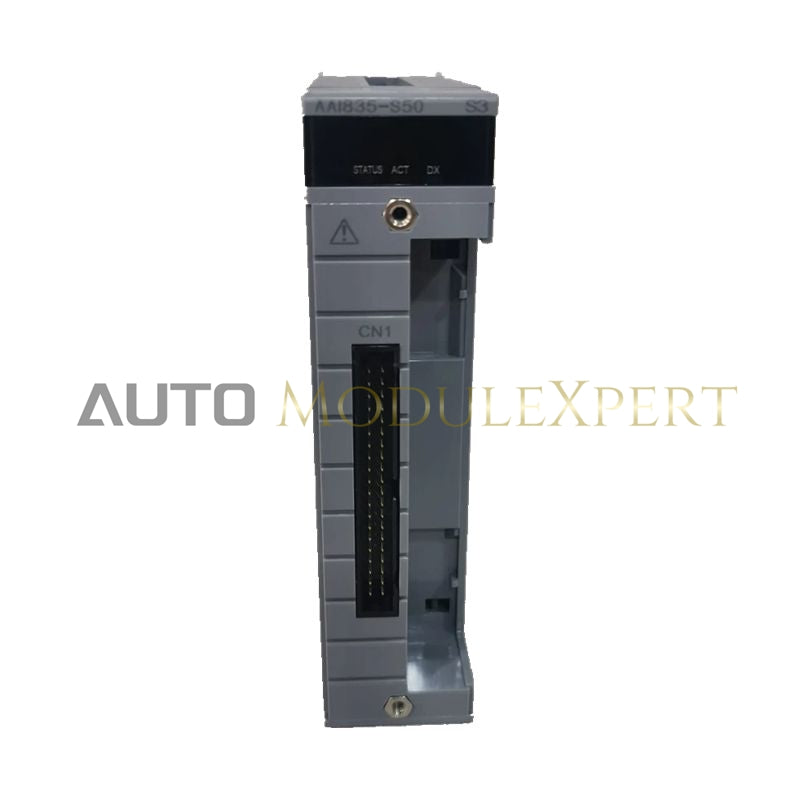

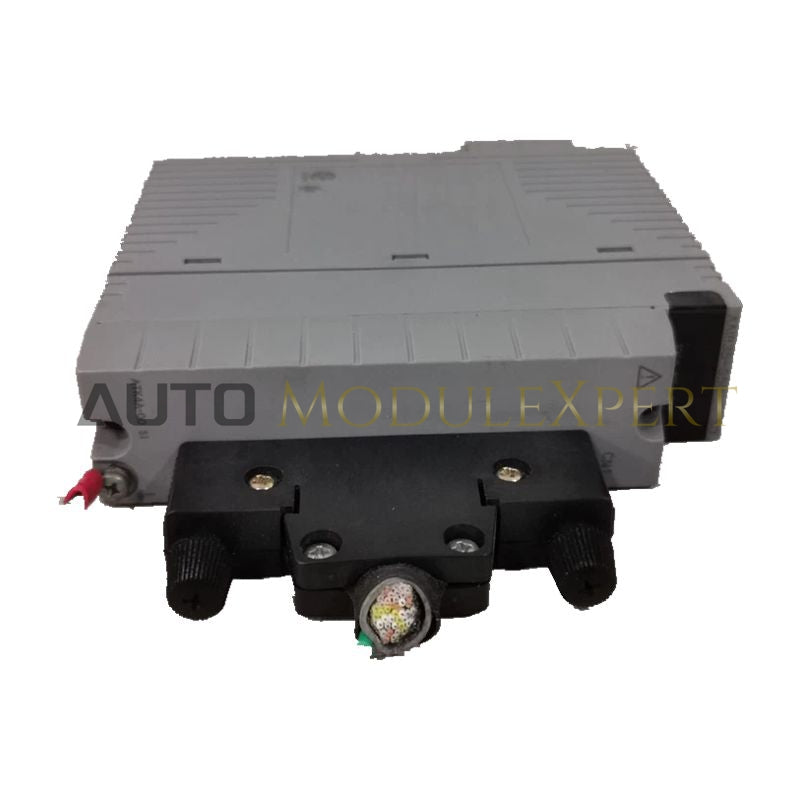

The AAI835-S50 is a hybrid analog I/O module for the Yokogawa CENTUM VP system. It combines 4 isolated input channels and 4 isolated output channels in a single module, supporting 4–20 mA signals for both sensing and actuation.
The S50 designation indicates a standard basic module for non-hazardous environments, with flexible connectivity via pressure clamp terminals, MIL connectors, or KS1 cabling. Its isolated architecture ensures reliable operation and protection against ground loops.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channel Configuration | 4 input / 4 output channels |
| Signal Type | 4–20 mA DC (both input and output) |
| Isolation | Fully isolated channels (input/output and system) |
| Accuracy | ±0.1% of full scale |
| Data Update Cycle | 10 ms |
| Power Consumption | 360 mA @ 5 V DC; 450 mA @ 24 V DC |
| Allowable Output Load | 0–750 Ω |
| Connection Options | Pressure clamp, MIL connector, KS1 cable |
| Module Type | S-type, Basic (0) configuration |
| Form Factor | 3.3 × 10.7 × 13 cm |
| Weight | 0.3 kg |
Application Scenarios
The AAI835-S50 is ideal for localized control loops such as dosing pumps, small-scale temperature control, and other 1:1 sensor-to-actuator systems. Its compact footprint saves cabinet space while maintaining high isolation standards for stable industrial operation.
Technical FAQ
Q: Can this module drive a control valve while reading a pressure transmitter simultaneously?
A: Yes. The module provides independent input and output circuitry, enabling simultaneous feedback acquisition and actuator control.
Q: Is this module suitable for redundant configurations?
A: Yes. The S50 version supports standard switch-over response, allowing use in dual-redundant I/O nests to enhance reliability and eliminate single points of failure.
