Technical Overview

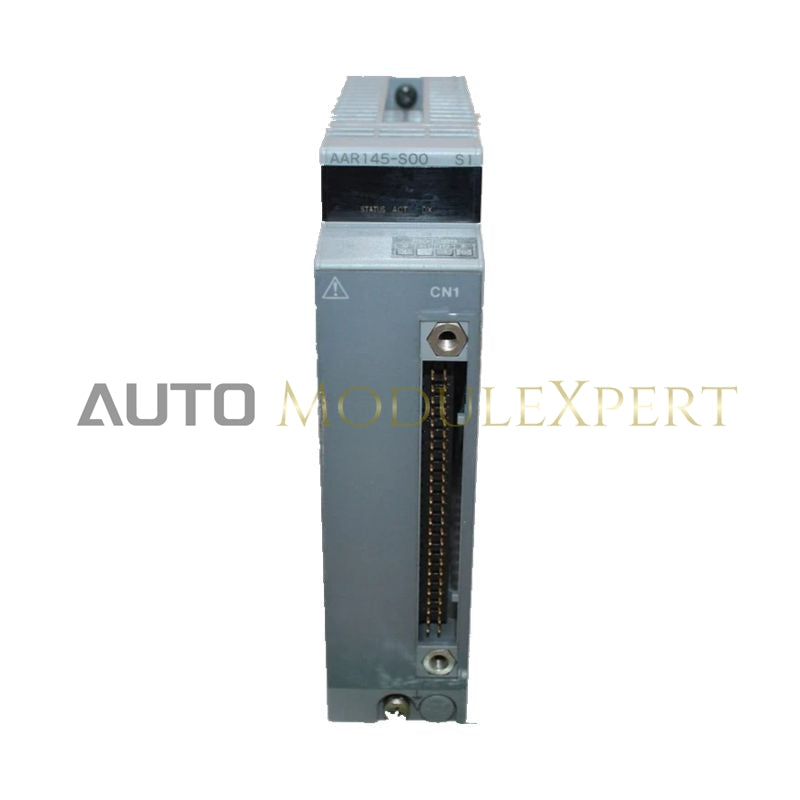

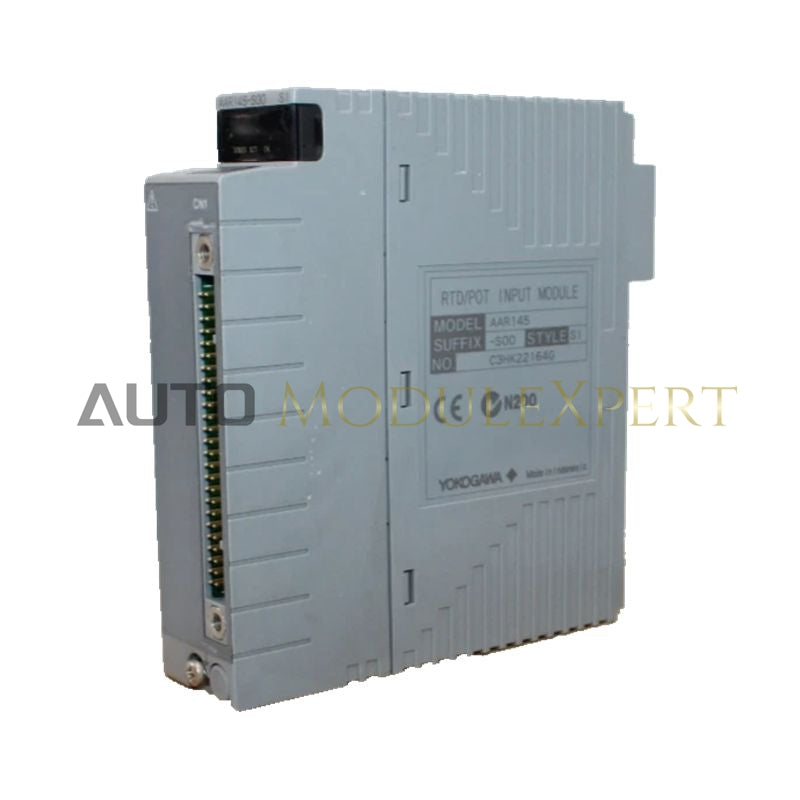

The AAR145-S00 S1 is a high-precision, 16-channel universal analog input module for the Yokogawa CENTUM VP and CS 3000 systems.
-
S1 (Style 1): Initial hardware revision
-
S00: Channel-to-channel isolation
-
Sensor Compatibility: RTDs, thermocouples (TCs), potentiometers (POTs), and millivolt sources
This module is designed for harsh industrial environments, meeting ISA Standard G3 specifications, with conformal coating to resist corrosive gases and extend module longevity. Channel-to-channel isolation ensures signal integrity and protects the system from ground loops or sensor faults.
Technical Specifications
| Feature | Specification |
|---|---|
| Input Channels | 16 fully isolated inputs |
| Sensor Compatibility | RTD (Pt100, JPt100, Pt50, etc.), Thermocouple (J, K, E, T, R, S, B, N), Potentiometer (POT), Millivolt sources |
| Isolation Architecture | Galvanic isolation between field and system, and between individual channels |
| RTD Measurement Current | 1 mA |
| Wiring Resistance Support | Up to 150 Ω per wire |
| Data Update Cycle | 1 second for all 16 channels |
| Drift Characteristics | RTD: ±0.3 Ω / 10°C, POT: ±0.4 % / 10°C |
| Burn-out Detection | Configurable (UP / DOWN / None), 60-second detection |
| Current Draw | 350 mA maximum at 5 V DC |
| Weight | 0.3 kg |
Key Features
-
Universal Input Compatibility: Supports multiple sensor types without additional signal conditioning.
-
Channel-to-Channel Isolation: Ensures that a fault in one channel does not affect others.
-
Harsh Environment Ready: Conformal coating protects against H₂S, Cl₂, and other corrosive gases.
-
Precision Measurement: Stable RTD, POT, and thermocouple readings for critical process control.
-
Hot-Swappable: Can be replaced in dual-redundant configurations without interrupting operation.
Strategic Applications
-
Turbine Temperature Monitoring: Multi-point TC data acquisition from bearing housings and exhaust paths.
-
Valve Position Feedback: High-accuracy measurement of valve stem position via potentiometers.
-
Chemical Reactor Profiling: Monitoring RTD arrays for precise temperature gradients.
-
Corrosive Industrial Environments: Wastewater treatment, pulp & paper mills, and chemical plants with G3-rated conditions.
Engineering FAQ
What is the benefit of channel-to-channel isolation?
-
Prevents electromagnetic interference or ground potential differences in one sensor from affecting others, ensuring accurate readings across all 16 channels.
Does the AAR145-S00 S1 support hot-swapping?
-
Yes. In a dual-redundant I/O nest, the module can be replaced while the system remains energized, without data interruption.
How does the G3 option affect module lifespan?
-
The G3 conformal coating protects the PCB from corrosive gases such as H₂S and Cl₂, extending the operational life in harsh industrial environments.
