Product Description

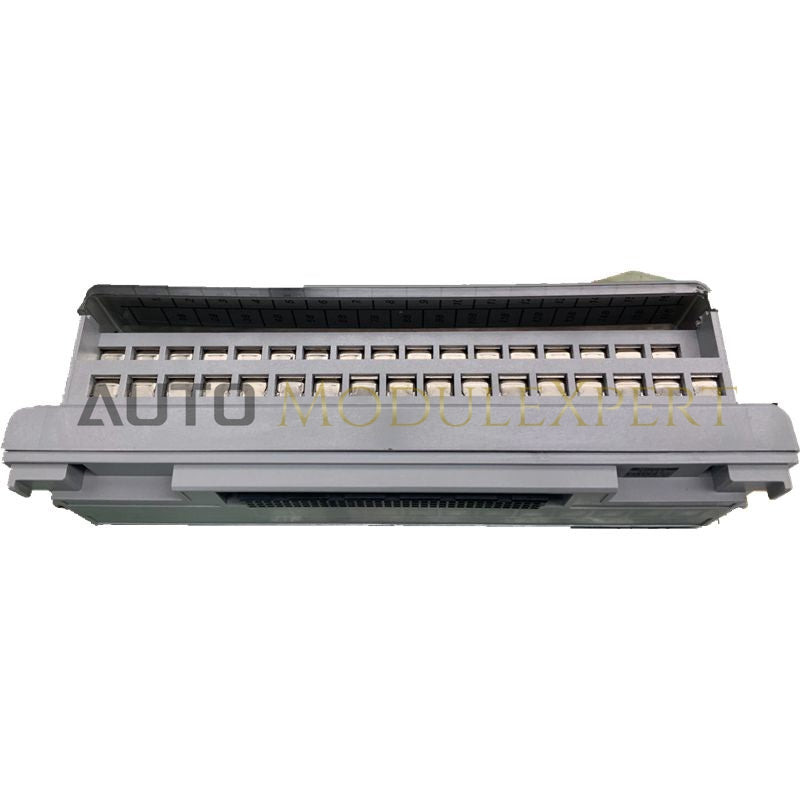

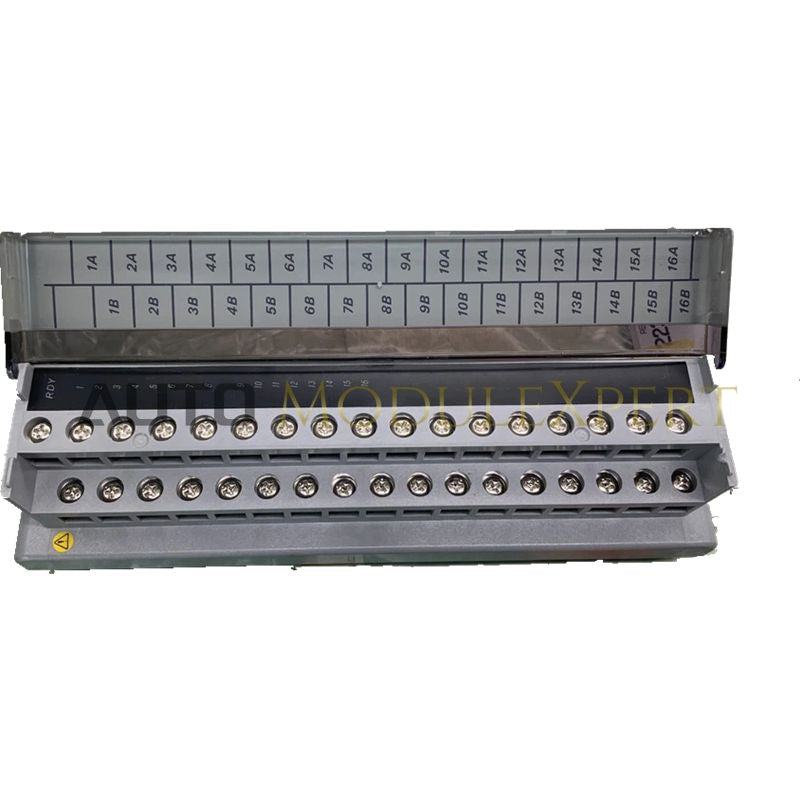

The ADM11T is a high-performance contact (digital) input module for Yokogawa CENTUM control systems. It acquires binary status signals from field devices such as limit switches, pushbuttons, and relay contacts. Designed for rugged industrial environments, the “T” designation indicates compatibility with terminal block interfaces for secure, vibration-resistant connections.
Featuring optical isolation, the ADM11T protects the system logic from electrical surges and common-mode noise. Its 16 independent channels provide reliable detection of open/closed states, while its compact form factor enables high-density I/O rack installation. The module is ideal for sequence control, equipment interlocking, and distributed status monitoring.
Technical Specifications
| Item | Specification |
|---|---|
| Model Identification | ADM11T |
| Module Function | Contact Input / Digital Input |
| Input Channels | 16 isolated channels |
| Supported Signal | Dry contact (voltage-free) / discrete digital signals |
| Isolation Method | Optocoupler (protects internal system logic) |
| Connection Interface | Terminal block units (T-type interface) |
| Status Update Period | Real-time scanning |
| System Compatibility | CENTUM CS, CS 3000, CENTUM VP |
| Operating Environment | Industrial grade, continuous operation |
| Hardware Design | Slim-profile for high-density I/O racks |
| Diagnostic Features | Internal health monitoring and channel-level status reporting |
Application Scenarios
-
Motor Status Feedback
Monitoring auxiliary contacts of motor starters to confirm “Running” or “Tripped” states. -
Safety Interlocking
Connecting to emergency stop circuits for immediate digital feedback to safety logic. -
Valve Position Tracking
Using limit switch inputs to verify fully open or fully closed positions of automated process valves.
Product FAQ
Q: What does the “T” suffix indicate?
A: The “T” signifies the module is designed for terminal block connections, allowing direct field wiring rather than multi-pin cable connectors.
Q: Can the ADM11T detect wire breaks?
A: It monitors basic open/closed states. For hardware-level line monitoring or supervised inputs, specialized modules are required.
