Product Description

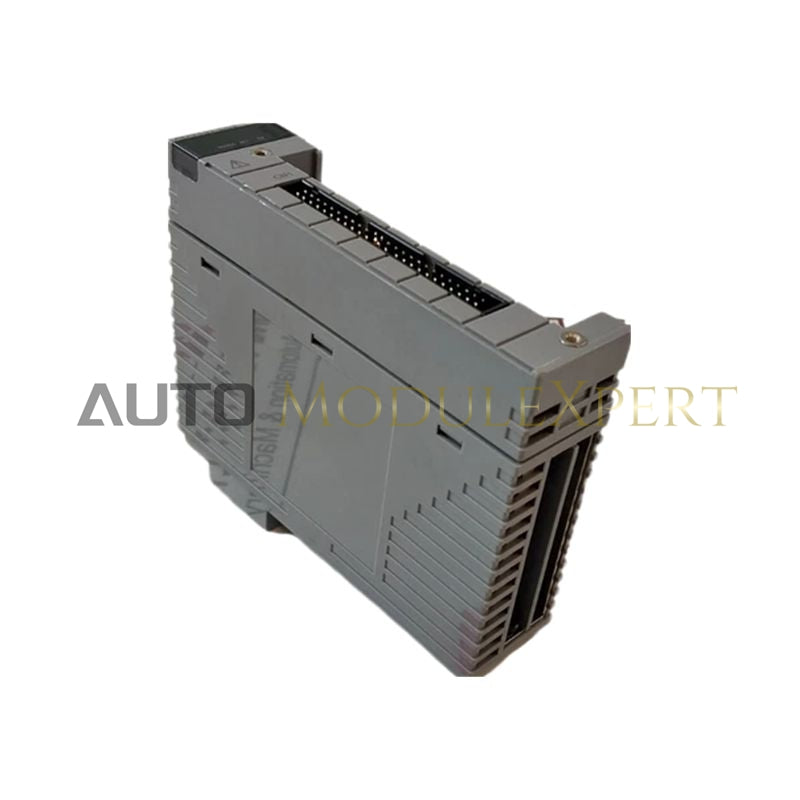

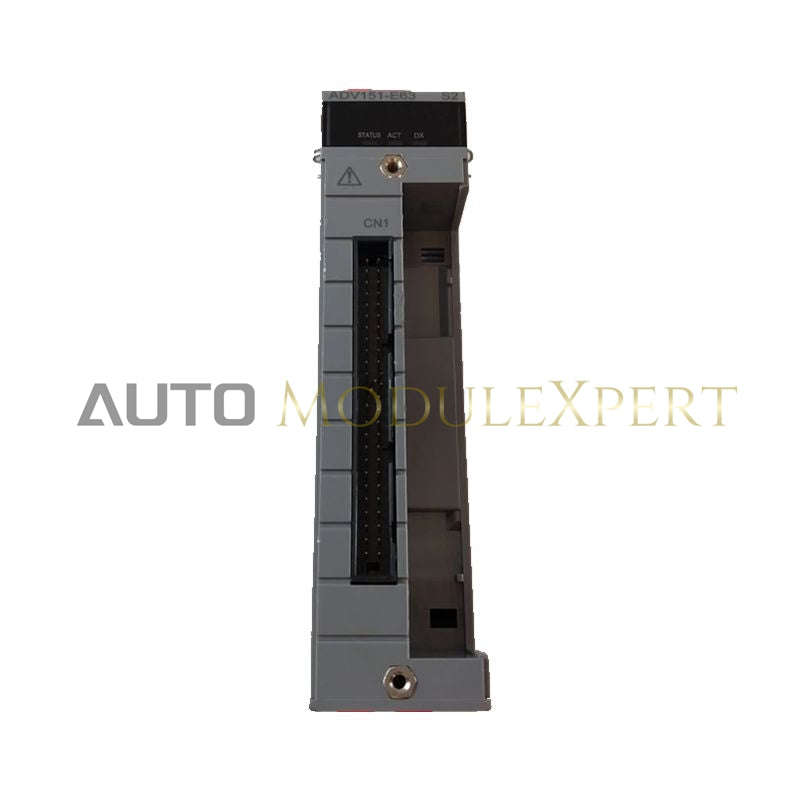

The ADV151-E63 S2 (ADV151) is a 32-channel digital input module designed for high-availability operation in Yokogawa CENTUM VP and ProSafe-RS control systems. It collects discrete ON/OFF signals from field devices such as limit switches and sensors, converting them into actionable logic for the DCS.
As a premium E63 variant, this module is engineered for extreme industrial environments. It carries an ISA Standard G3 corrosive resistance rating, safeguarding internal circuitry against chemical pollutants like hydrogen sulfide (H₂S) and chlorine (Cl₂). Additionally, the module supports a wide operating temperature range of −20 to 70°C, making it suitable for field-mounted enclosures in harsh or variable climates. The Style S2 hardware revision ensures optimized thermal management, component longevity, and full backward compatibility with standard FIO nests.
The E suffix denotes SOE (Sequence of Events) capture capability, allowing precise millisecond-level logging of signal transitions, which is critical for post-incident analysis and industrial safety monitoring.
Core Technical Specifications
| Item | Specification |
|---|---|
| Input Capacity | 32 channels, group-isolated (16 channels per common) |
| Rated Input Voltage | 24 V DC (Operational range ±10%) |
| Input Signal Logic | ON: 18–26.4 V DC; OFF: ≤ 5 V DC |
| Response Time | ≤ 8 ms (Standard status input) |
| Environmental Protection | ISA Standard G3 Corrosive Gas Compliance |
| Thermal Range | −20 to 70°C operating temperature |
| Hardware Revision | Style S2 |
| Diagnostics | Per-channel LED status indicators (6 suffix) |
| Features | SOE (Sequence of Events) capture (E suffix) |
| Dielectric Strength | 2 kV AC for 1 minute (Signal to system) |
| Internal Power Usage | 500 mA max at 5 V DC |
| Dimensions (W × H × D) | 5.1 × 25.4 × 11.4 cm |
| Weight | 0.63 kg |
Application Scenarios
The ADV151-E63 S2 is ideal for high-demand industrial environments, including:
-
Offshore oil and gas platforms
-
Mining operations
-
Chemical processing plants
Its SOE capture capability provides precise millisecond-level event logging, enabling accurate root-cause analysis after incidents. The G3 protection and wide thermal range ensure reliable operation in harsh atmospheric and temperature conditions.
Technical FAQ
Is this module manufactured by Yaskawa?
No. Despite some mislabeling in distribution records, the ADV151-E63 S2 is manufactured exclusively by Yokogawa for their integrated control and safety systems.
What is the benefit of the "E" suffix compared to "P"?
The E suffix indicates SOE capture functionality, allowing the module to record the exact time each input changes state. The P suffix variants do not include SOE functionality and are designed primarily for standard status or pulse-width applications.
