Product Description

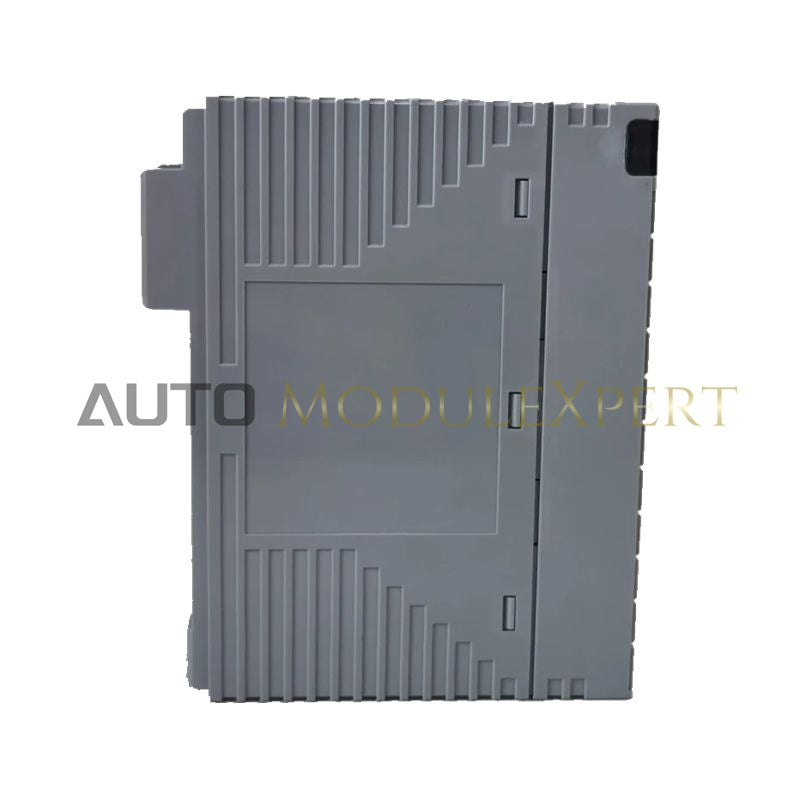

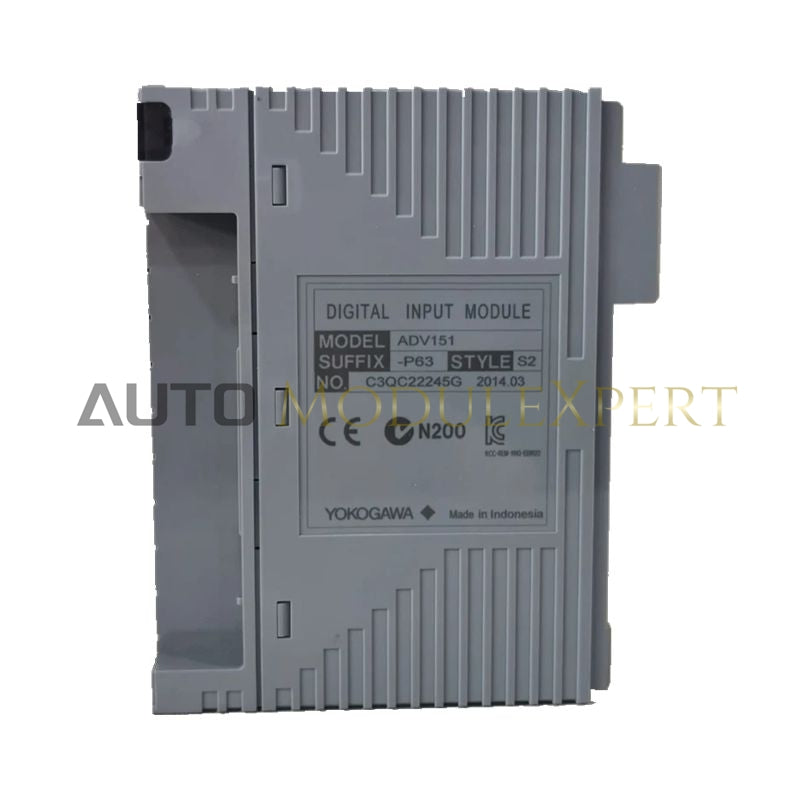

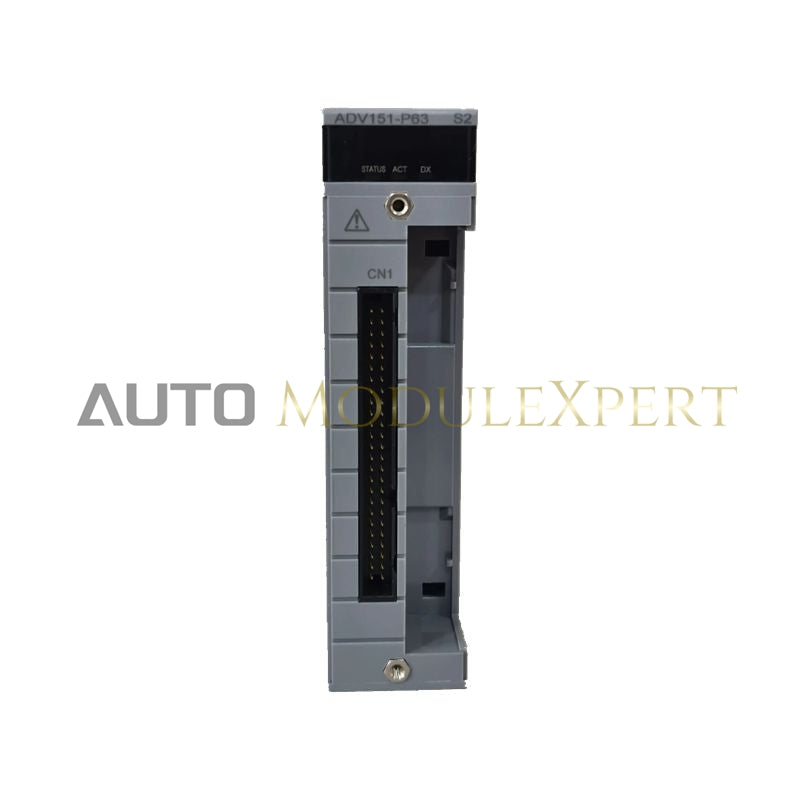

The ADV151-P63 (ADV151) is a 32-channel isolated digital input module designed for Yokogawa CENTUM VP and ProSafe-RS control systems. It captures 24 V DC field signals from devices such as relay contacts and limit switches, ensuring reliable data acquisition in demanding industrial environments.
This P63 variant is a premium environmental module, featuring:
-
ISA Standard G3 corrosive gas protection for chemical pollutant resistance
-
Extended operating temperature range: −20 to 70°C
-
Integrated pushbutton for manual diagnostics
-
Per-channel LED status display for immediate visual verification of field signals
Technical Specifications
| Item | Specification |
|---|---|
| Input Channels | 32 points, isolated |
| Rated Voltage | 24 V DC (Supports sinking or sourcing inputs) |
| Input ON Threshold | 18–26.4 V DC |
| Input OFF Threshold | ≤ 5 V DC |
| Input Current | 4.1 mA ±20% per channel at rated voltage |
| Maximum Input Voltage | 30 V DC |
| Isolation (Signal to System) | 2 kV AC for 1 minute |
| Group Isolation | 500 V AC between 16-channel commons |
| Response Time | ≤ 8 ms (status input transitions) |
| Environmental Protection | ISA Standard G3 corrosive gas resistance |
| Thermal Range | −20 to 70°C |
| Diagnostics | Per-channel LED status indicators and manual pushbutton |
| Internal Power Usage | Max 500 mA at 5 V DC |
| Weight | 0.3 kg |
Application Scenarios
The ADV151-P63 is ideal for harsh industrial and remote installations, including:
-
Offshore oil & gas platforms
-
Desert or extreme climate facilities
-
Chemical and petrochemical plants
Its G3 coating and wide temperature tolerance ensure long-term stability in humid, corrosive, or high-temperature environments, where standard digital input modules would degrade.
Technical FAQ
What is the benefit of the G3 option on this module?
The G3 rating provides chemical-resistant conformal coating and component treatment, protecting the PCB and circuitry from damage caused by corrosive gases such as H₂S or Cl₂.
Does this module require special mounting for the wide temperature range?
Yes. While rated for −20 to 70°C, the module must be installed in a Yokogawa-approved FIO nest with adequate airflow and thermal management to maintain these environmental ratings.
