Product Description

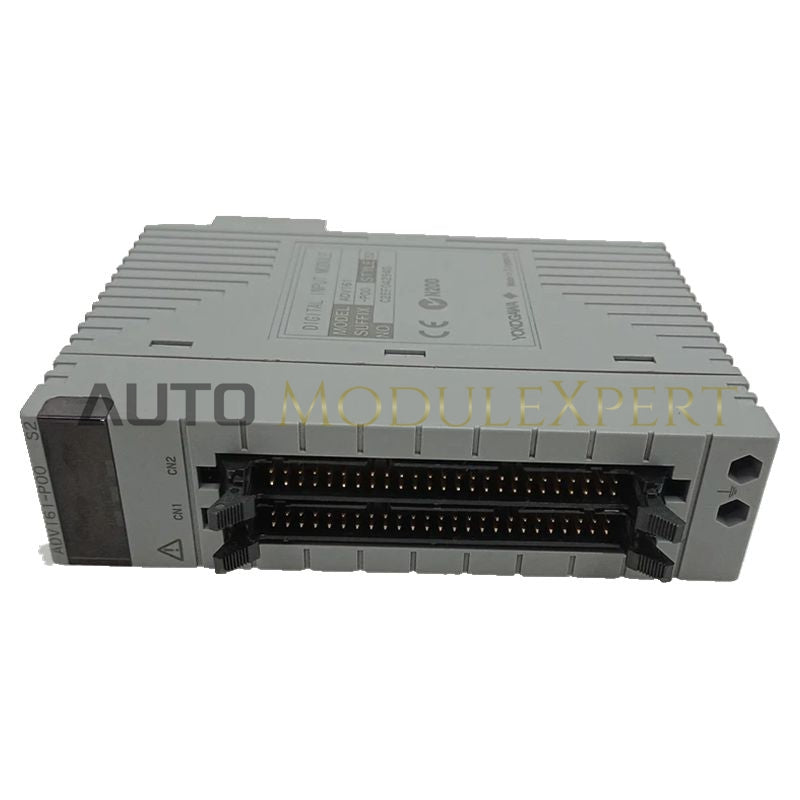

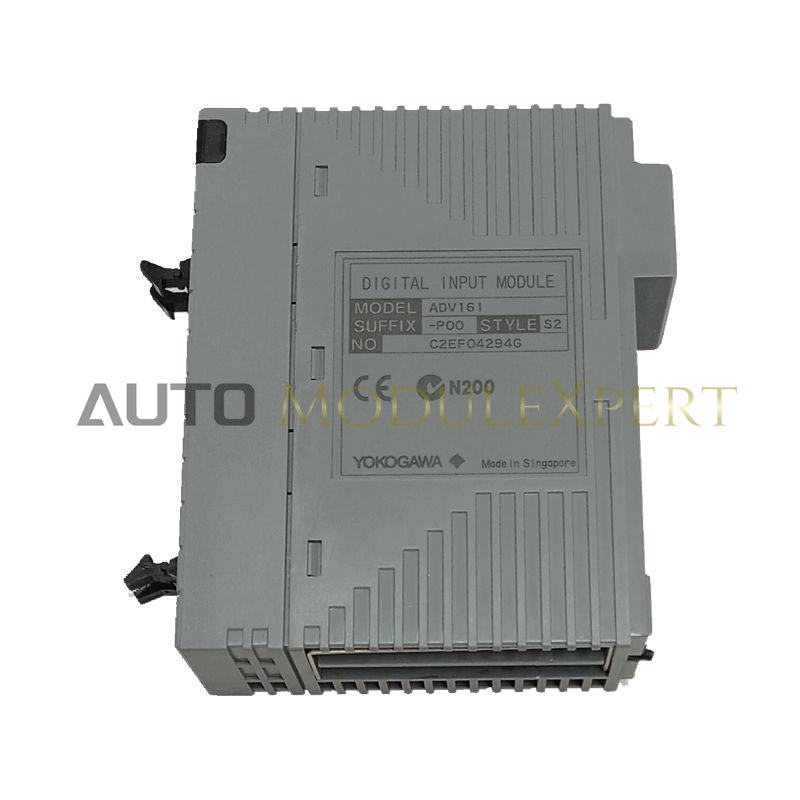

The ADV161-P51 (ADV161) is an ultra-high-density digital input module engineered for the Yokogawa CENTUM VP platform. It provides 64 isolated digital input channels, enabling extensive consolidation of 24 V DC discrete field signals into a single I/O slot.

Designed for interfacing with switches, relay contacts, and other discrete devices, the ADV161-P51 maintains high signal integrity through robust isolation between the field side and system logic.

Important clarification:
Although occasionally misclassified as an analog module in legacy databases, the ADV161-P51 is a dedicated digital input module. The P51 suffix indicates support for pushbutton input functionality, allowing manual triggering or diagnostic interaction directly at the module level.

This variant is manufactured with the ISA Standard G3 option, making it suitable for harsh industrial environments where corrosive gases may be present.

Technical Specifications

Application Scenarios

The ADV161-P51 is ideally suited for large-scale, high-density digital input applications, especially in environments where cabinet space is limited and atmospheric conditions are severe, including:

• Oil refineries and petrochemical plants

• Wastewater treatment facilities

• Pulp and paper mills

• Chemical processing plants

Its 64-channel density significantly reduces the number of required I/O modules and racks, lowering installation footprint and overall system cost.

Technical FAQ

What is the advantage of the ISA G3 option?
The G3 conformal protection enhances resistance to corrosive gases such as hydrogen sulfide, chlorine, and sulfur compounds, extending module lifespan in harsh environments.

How is wiring handled for 64 channels?
Due to the high channel density, the ADV161-P51 is typically connected using a KS cable interface to remote terminal boards, rather than direct pressure clamp wiring on the module.
