Technical Overview

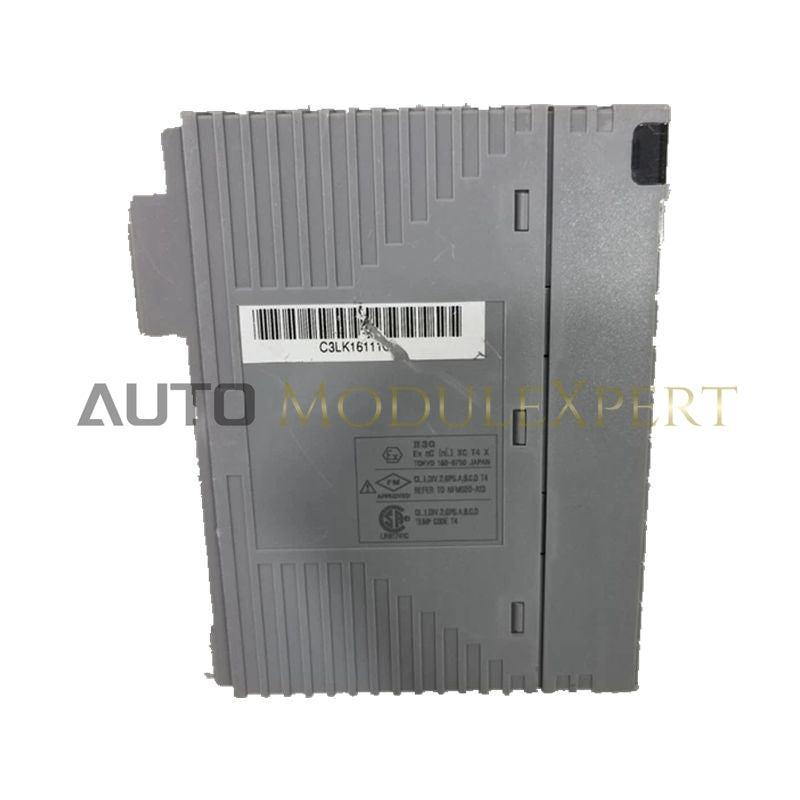

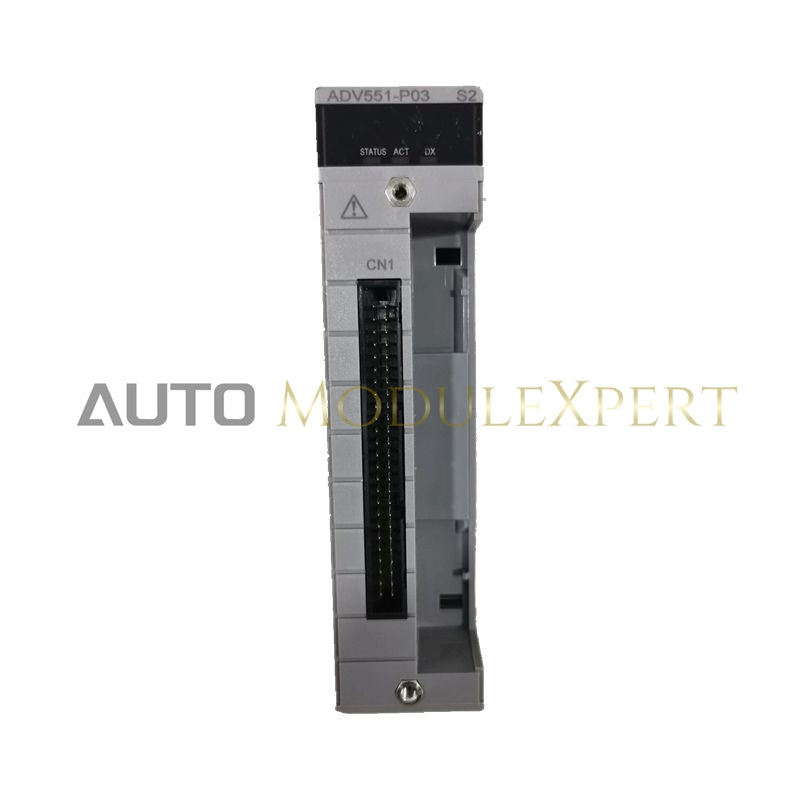

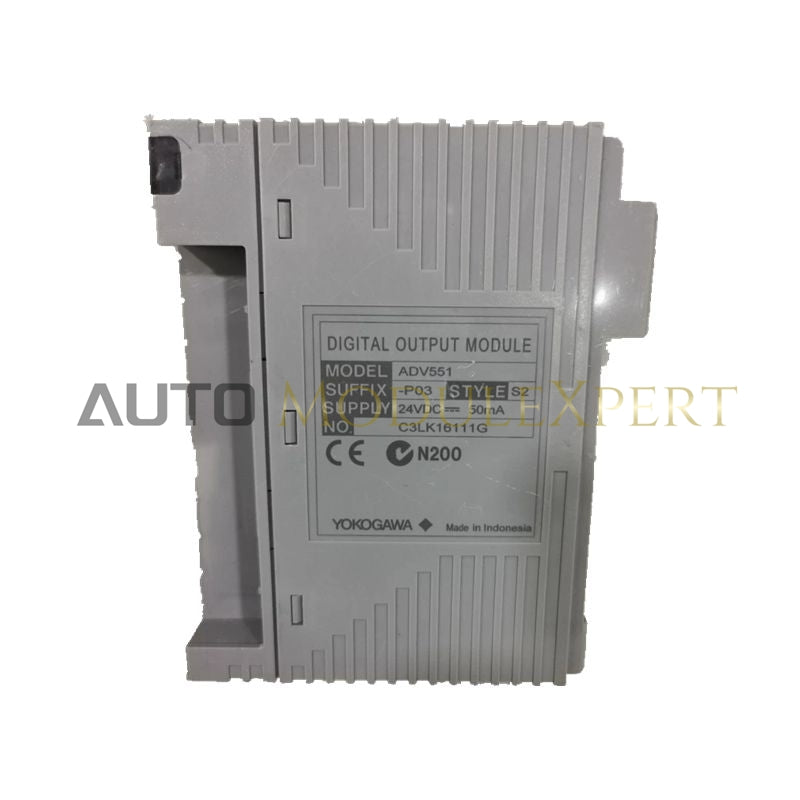

The ADV551-P03 S2 is a high-density discrete output module for the Yokogawa CENTUM VP and CS 3000 systems, providing 32 transistor-based output channels. The -P03 suffix enables pulse width and time-proportional output functions, while the S2 hardware revision ensures enhanced thermal stability and long-term reliability.
This module is designed for fast, low-power DC switching, making it ideal for controlling solenoids, pilot valves, annunciators, and SSR-driven heaters.
Technical Specifications
| Feature | Specification |
|---|---|
| Output Channels | 32 discrete outputs |
| Output Type | Transistor contact (Sink-type) |
| Module Configuration | ADV551-P03 S2 (Style 2 hardware) |
| Rated Load Voltage | Up to 30 V DC |
| Maximum Load Current | 100 mA per channel |
| Isolation | 500 V AC (Channel-to-System) |
| Response Time | ≤ 16 ms |
| Special Functions | Pulse Width & Time-Proportional Output (-P03 suffix) |
| Dimensions | 5.1 cm x 10.7 cm x 12.7 cm |
| Weight | 0.3 kg |
| Power Consumption | 500 mA at 5 V DC (internal logic) |
Functional Applications
-
Solenoid Valve Control: Driving small pilot valves in hydraulic or pneumatic manifolds.
-
Annunciator Panels: Operating LEDs, alarms, and indicator sirens in control rooms.
-
Time-Proportional Heating: Controlling SSRs for temperature regulation through duty cycle modulation.
-
Inter-System Signaling: Providing status and handshaking signals to PLCs or Safety Instrumented Systems (SIS).
Technical FAQ
What is the advantage of the Style 2 (S2) revision?
-
S2 represents a hardware update with better heat dissipation and power efficiency.
-
Fully backward compatible with standard ADV551 slots while offering improved long-term reliability.
Can this module drive 110V AC loads?
-
No. The ADV551-P03 S2 is DC-only (≤ 30 V DC).
-
Use an interposing relay for AC or higher-current DC applications.
How does the pulse width function work in the -P03 model?
-
The module varies the ON vs OFF time within a cycle.
-
Useful for dosing pumps or heating elements, allowing average power regulation through duty cycle control.
