Product Description

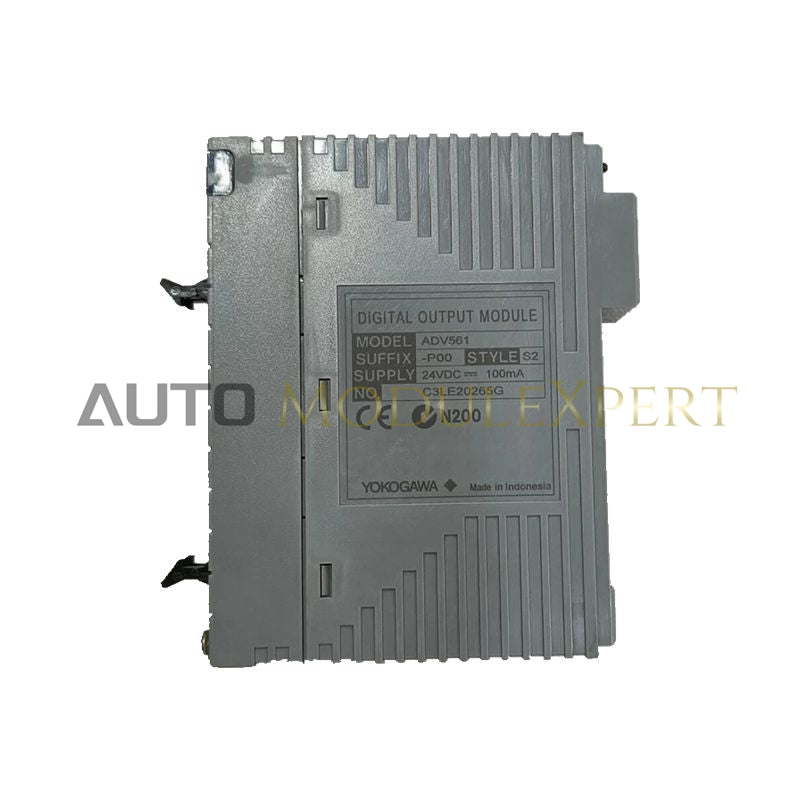

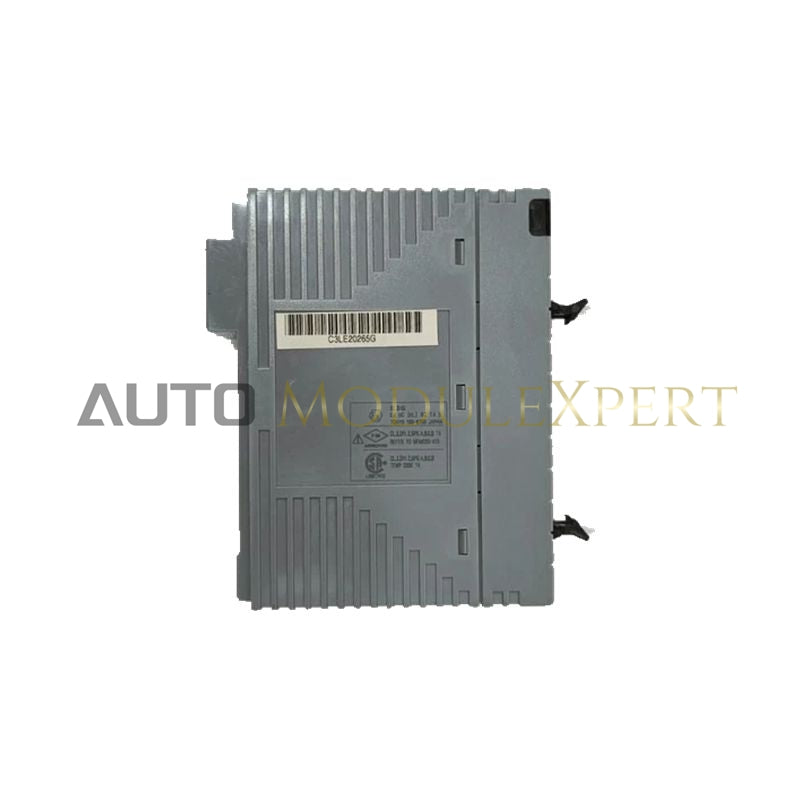

The ADV561-P01 (ADV561) is a high-density digital output module engineered for the Yokogawa CENTUM VP control system. It provides 64 current-sink (sinking) digital output channels, enabling efficient control of large volumes of discrete field devices in 24 V DC logic environments.

Designed for high-speed and flexible output control, the ADV561-P01 supports both steady-state output signaling and pulse-based output operation, including long-duration timing control. This makes it well suited for driving external relays, solenoid valves, annunciators, and indicator panels in space-constrained control cabinets.

Core Technical Specifications

Functional Comparison: ADV561 vs. ADV551

While both modules provide digital output functionality within the CENTUM VP platform, the ADV561-P01 offers double the channel density:

• ADV561-P01: 64 digital output channels

• ADV551: 32 digital output channels

The higher channel density of the ADV561 allows system designers to reduce I/O module count, minimize cabinet space, and lower overall hardware and wiring costs in large-scale installations.

Application

Typical applications include:

• Solenoid valve actuation

• Relay and contactor control

• Indicator lamps and alarm panels

• Time-proportional or pulse-based control (e.g., dosing systems)

• High-density discrete output control in DCS cabinets

Technical FAQ

Q: What wiring interface does the ADV561-P01 use?

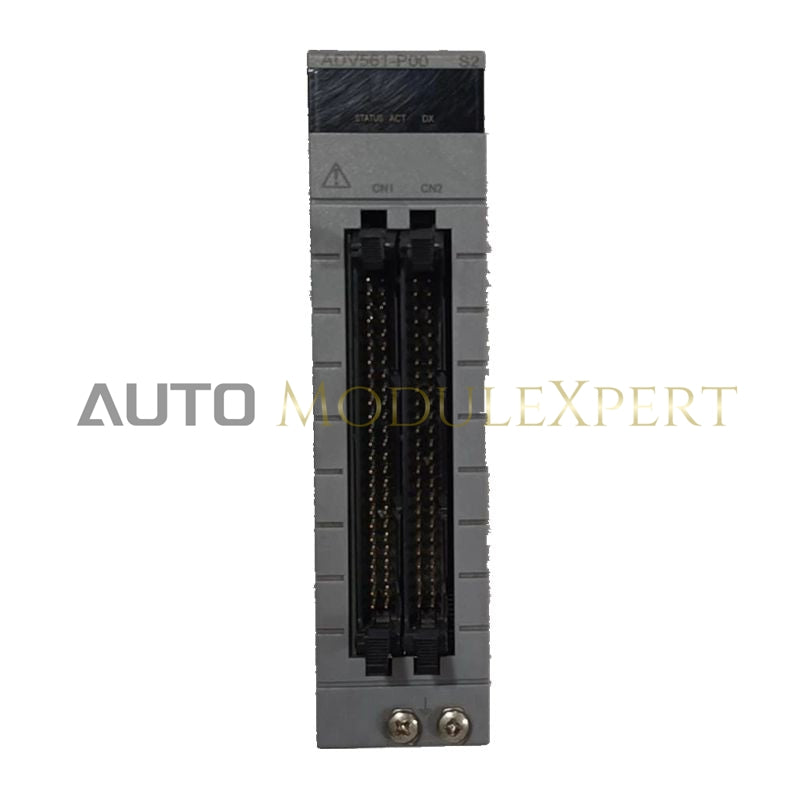

A: The module typically interfaces via high-density KS cables, enabling efficient connection and management of all 64 output channels.

Q: Can this module be used for pulse width control?
A: Yes. It supports pulse output durations from 8 ms up to 7200 seconds, making it suitable for applications such as dosing pumps, timed actuators, and proportional control schemes.
