Product Description

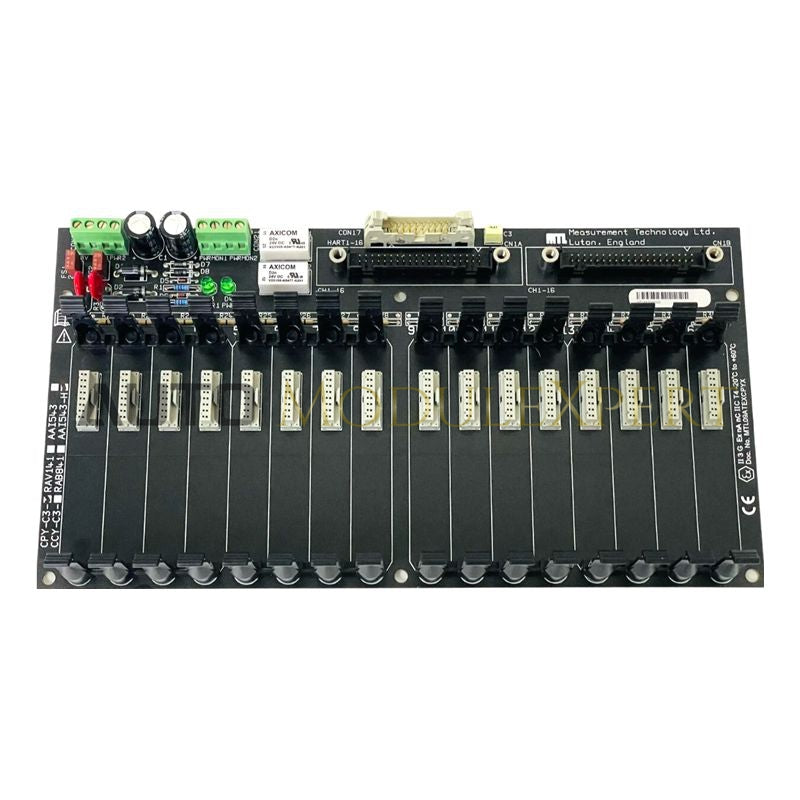

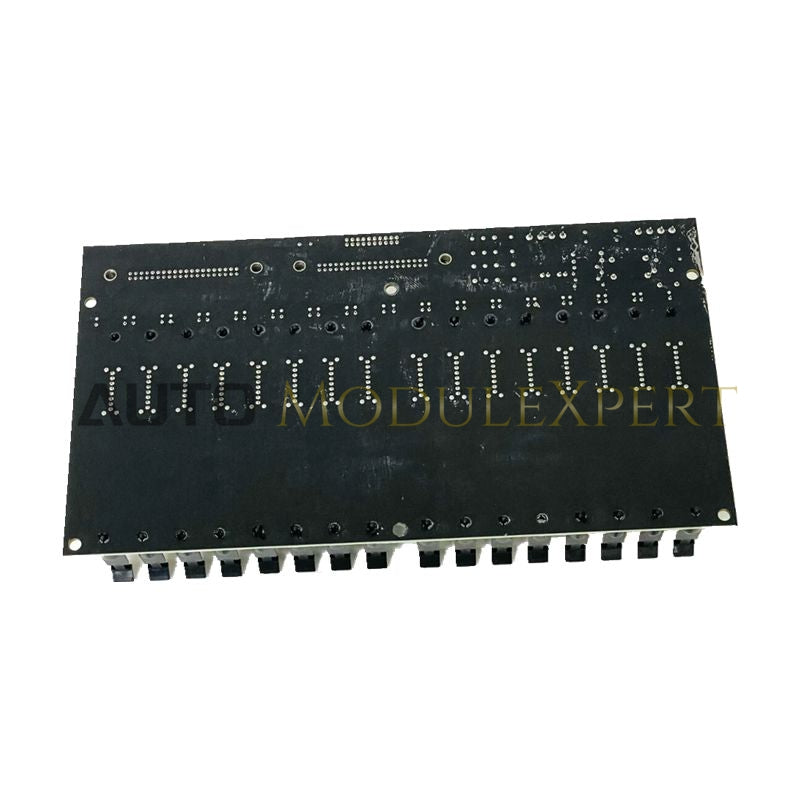

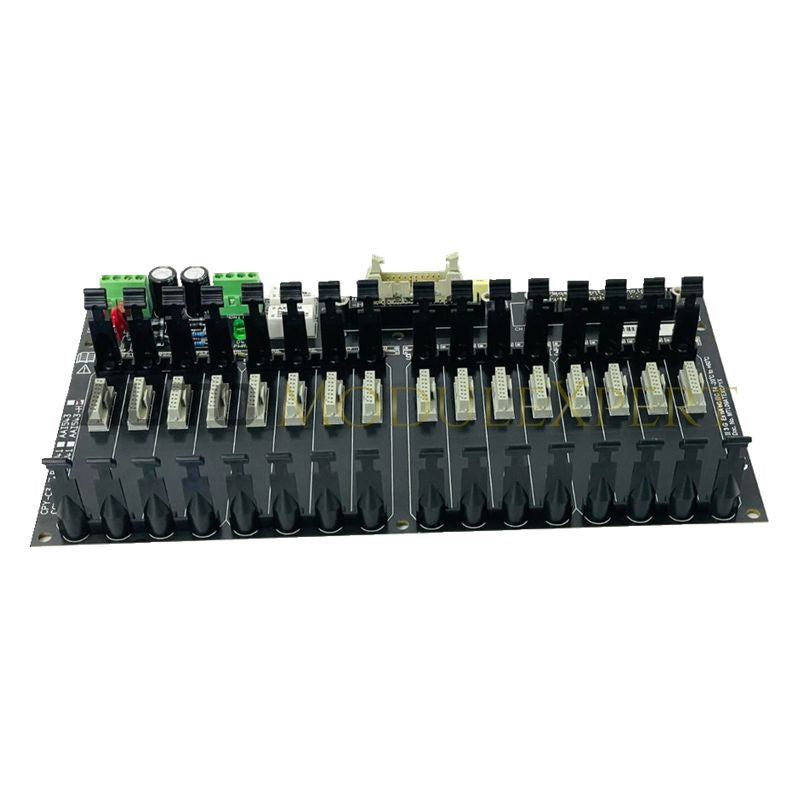

The CPY-C3-AAI543-H is a dedicated interface backplane designed for use within the Yokogawa CENTUM VP DCS. It serves as a signal conditioning and connectivity hub for AAI543 analog input modules, enabling high-density signal termination with enhanced EMI shielding and signal integrity.
By providing a stable physical and electrical interface between field wiring and I/O modules, this backplane reduces cabinet wiring complexity, optimizes space utilization, and ensures reliable transmission of critical 4–20 mA process signals.
Technical Specifications
| Parameter | Description |
|---|---|
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Component Type | Interface Backplane (Terminal Board Connection) |
| Supported Module | AAI543 Analog Input Module |
| Channel Capacity | 16 channels (4–20 mA) |
| Connection Interface | KS cable connector (system side) |
| Mounting | Surface mount, standard 19-inch rack |
| Signal Protection | Integrated surge suppression and noise filtering (per channel) |
| Environmental Rating | G3 corrosive gas resistance (coating dependent) |
| Power Consumption | Passive design (powered via connected I/O module) |
Application
The CPY-C3-AAI543-H is commonly deployed in large-scale industrial environments requiring high-density analog signal acquisition, including:
-
Oil refineries
-
Chemical and petrochemical plants
-
Power generation facilities
It is especially suited for applications where organized cabinet layout, long-term maintainability, and high signal reliability are critical.
Frequently Asked Questions
How does this differ from standard AAI543 wiring?
The CPY-C3-AAI543-H centralizes multi-channel field wiring, significantly reducing clutter and minimizing signal degradation compared to direct module wiring—particularly in high-vibration or EMI-heavy environments.
Is the backplane hot-swappable?
The backplane itself is a passive interface; however, it fully supports the hot-swap functionality of the Yokogawa AAI543 modules installed on it.
