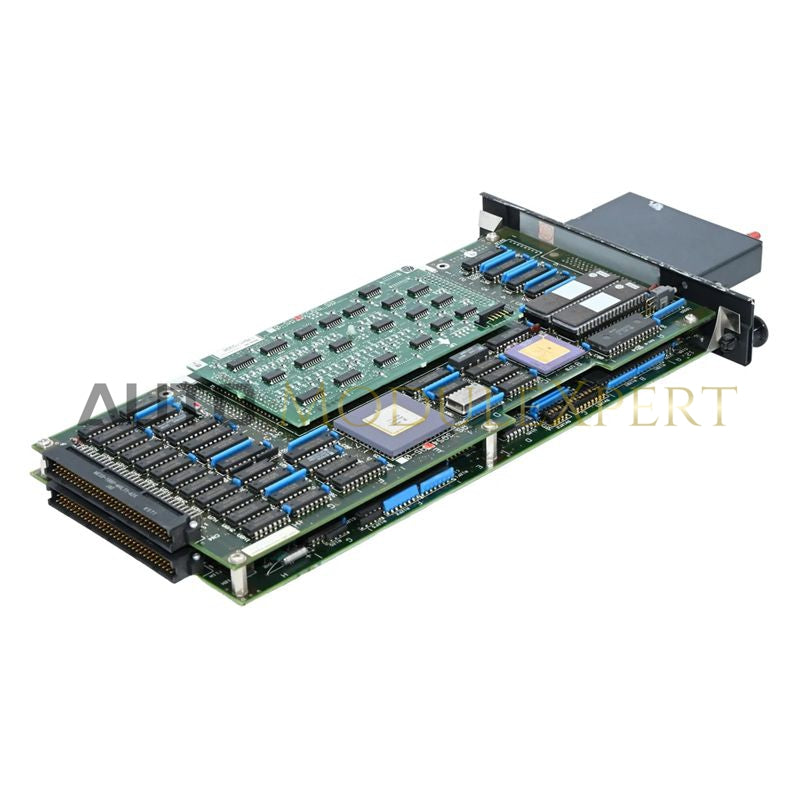

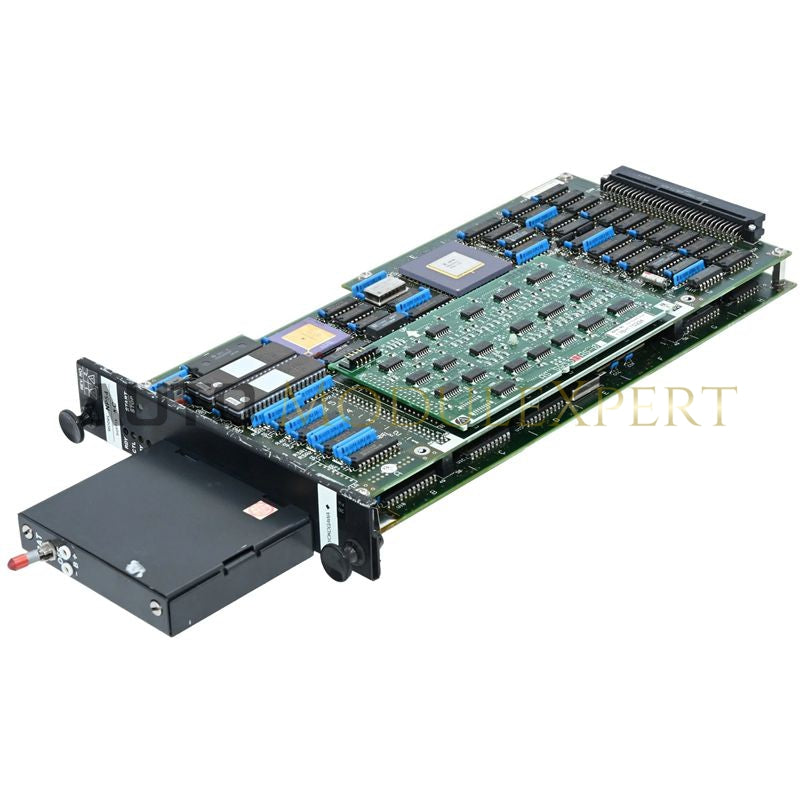

YOKOGAWA NP54*C CENTUM VP Communication Module

The YOKOGAWA NP54*C, also cataloged as the NP54 Communication Module, operates as a dedicated hardware component for high-speed deterministic fieldbus data transmission within CENTUM VP Field Control Unit architectures. It manages physical interface signals and control protocols to execute continuous real-time data frame exchange between the main field control station and distributed network subnodes.

Hardware Specifications

Channel-to-Channel Isolation & HART Loop Protocol Support

The YOKOGAWA NP54*C communication interface board utilizes galvanic channel-to-channel isolation to decouple internal system backplane logic from external line transients and ground potential shifts. Integrated signal conditioning circuitry supports downstream 4-20 mA HART loop protocol pass-through alongside primary bus communications. Furthermore, active high-frequency noise filters prevent electromagnetic interference from distorting high-speed serial data frames during continuous DCS scanning operations.

Frequently Asked Questions

Q: What power bus parameters must engineers check before installing the NP54*C into an active rack chassis?

A: Technicians must verify that total backplane current draw remains within power supply limits, accounting for the maximum 3 W consumption of the module to prevent backplane DC bus voltage drops.

Q: How does the hardware maintain signal integrity over long field wiring paths?

A: Isolated transceiver components and differential communication drivers suppress common-mode line noise and eliminate ground loops across field interconnects.

Field Installation Guidelines

Mount the YOKOGAWA NP54*C module directly into its designated option slot within the Field Control Unit rack, pressing firmly to verify full backplane connector engagement. Route all external communication cables using shielded twisted-pair (STP) conductors kept strictly isolated from high-voltage AC lines. Connect the cable shield to an isolated single-point instrument ground (IG) terminal to prevent earth loop currents. Secure all module retaining screws prior to applying power to the rack enclosure.
