Product Description

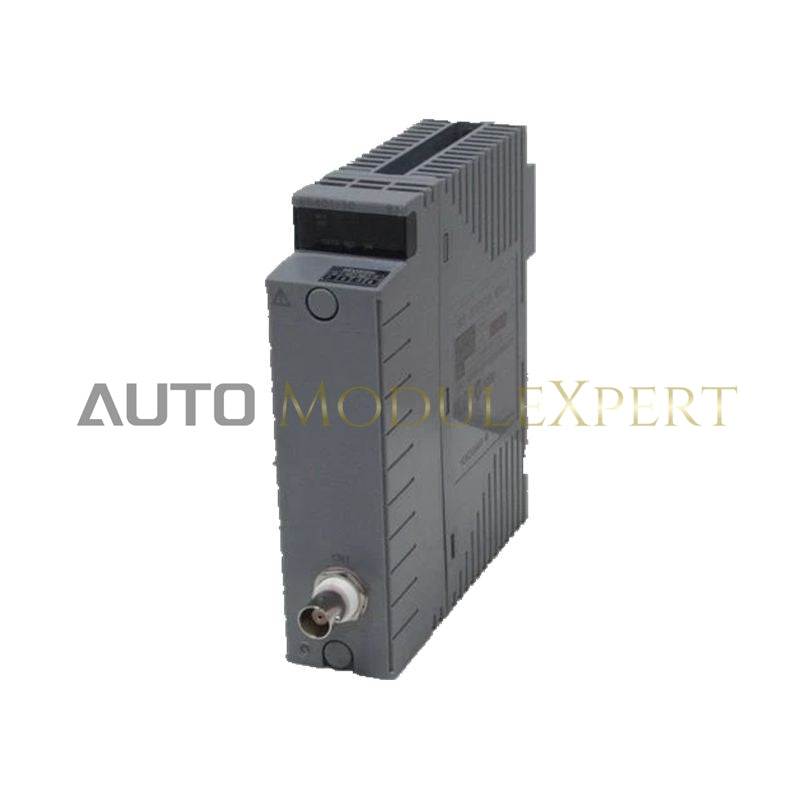

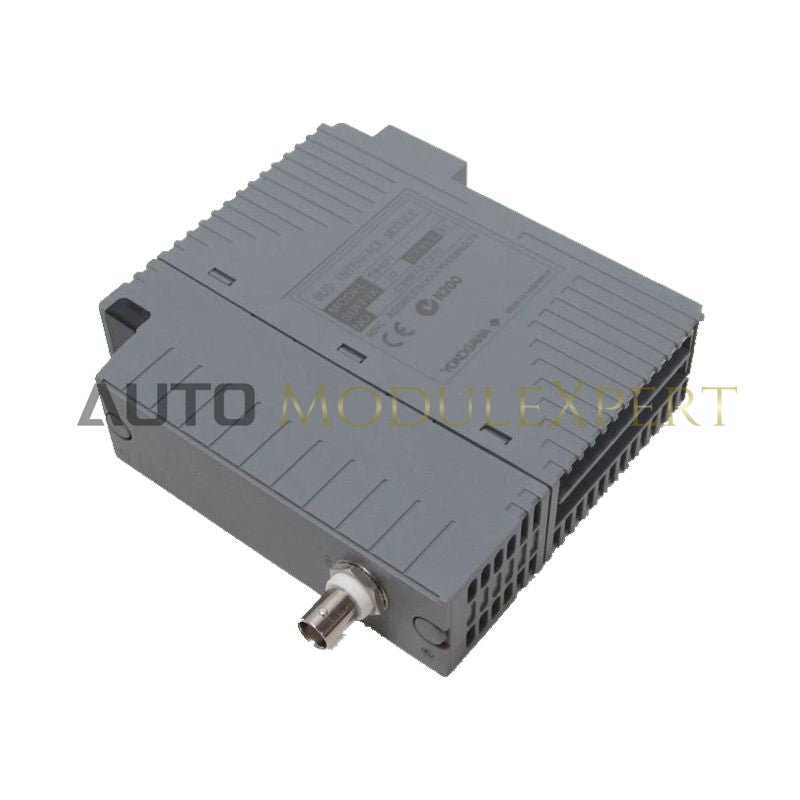

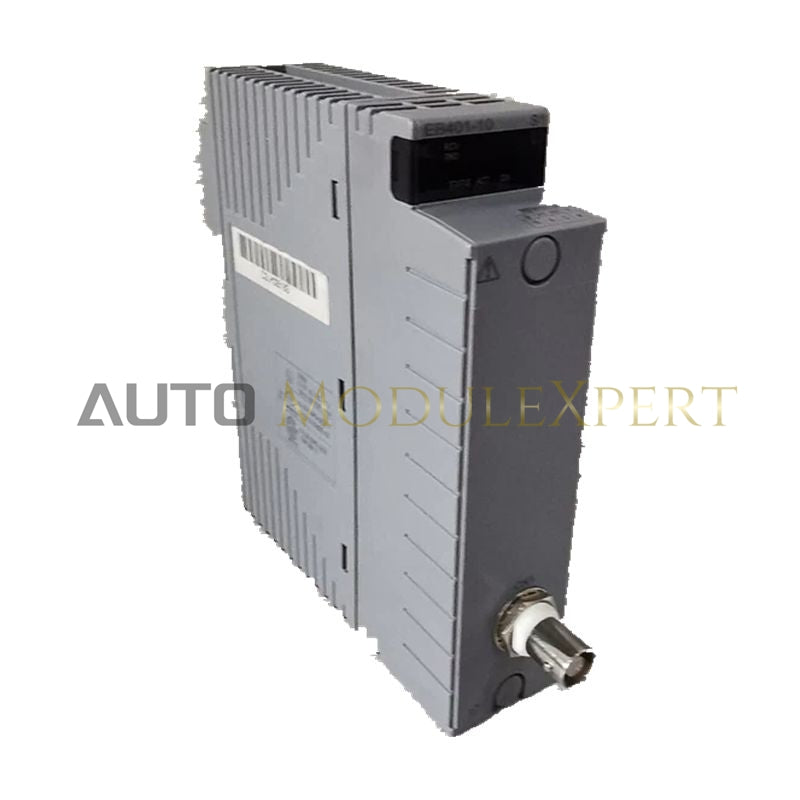

The EB401-10 S1 is an ER (Ethernet Remote) Bus Interface Master designed for the Yokogawa CENTUM VP and CS 3000 systems. It provides a high-speed Ethernet link between Field Control Stations (FCS) and remote I/O nodes, enabling deterministic communication for analog, digital, and pulse signals across geographically dispersed installations.
The S1 revision ensures long-term stability and high reliability, supporting dual-redundant network configurations to eliminate single points of failure. Its DIN-rail mounting and wide operating range allow deployment in harsh industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | EB401-10 S1 |
| Module Function | ER Bus Interface Master |
| Network Protocol | Ethernet Remote Bus (ER) |
| Network Speed | 10/100 Mbps Auto-negotiation |
| Input Power | 24 V DC (+20% tolerance) |
| Power Consumption | Maximum 15 W |
| Signal Capacity | Supports Yokogawa Analog, Digital, and Pulse I/O modules |
| Redundancy Support | Dual-redundant network configurations |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 150 mm (W) x 100 mm (L) x 50 mm (H) |
| Weight | 0.4 kg |
Application Scenarios
-
Remote I/O Management: Connecting sensor clusters in large plants to a central FCS.
-
System Redundancy: Deploying dual modules for fault-tolerant communication paths.
-
Fieldbus Consolidation: Aggregating remote digital and analog signals into a high-speed data stream for centralized processing.
Product FAQ
Q: What is the difference between an ER Bus Master and an ESB Bus Master?
A: The EB401-10 S1 (ER Bus Master) uses Ethernet for long-distance communication to remote nodes, whereas ESB Bus modules serve local high-speed backplane expansion within the same or adjacent racks.
Q: Does the module support redundant power inputs?
A: Power redundancy is generally handled by the host rack or carrier; the EB401-10 S1 itself manages communication redundancy across the Ethernet network.
