Product Description

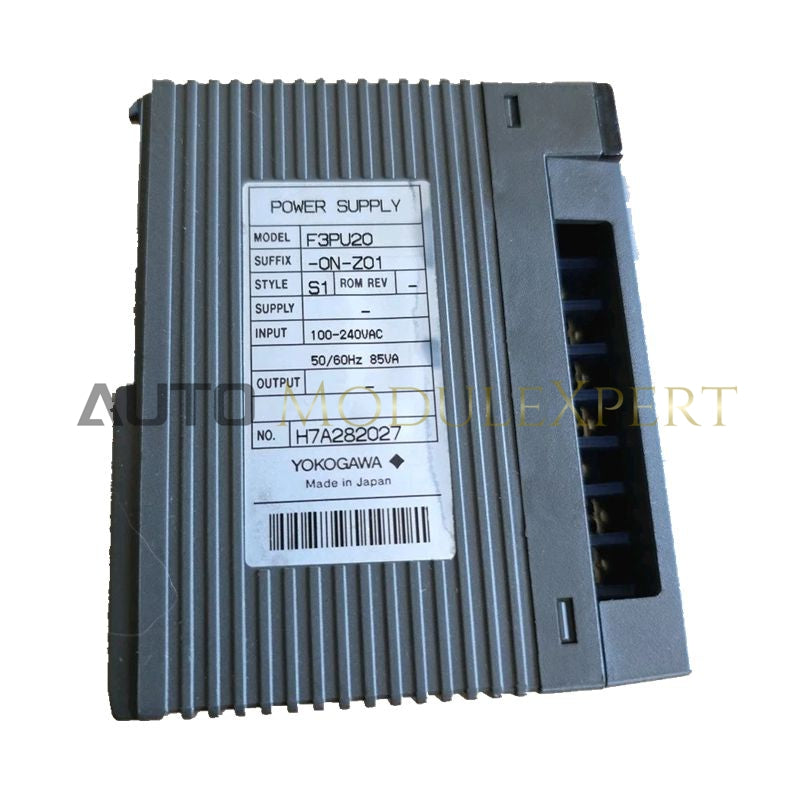

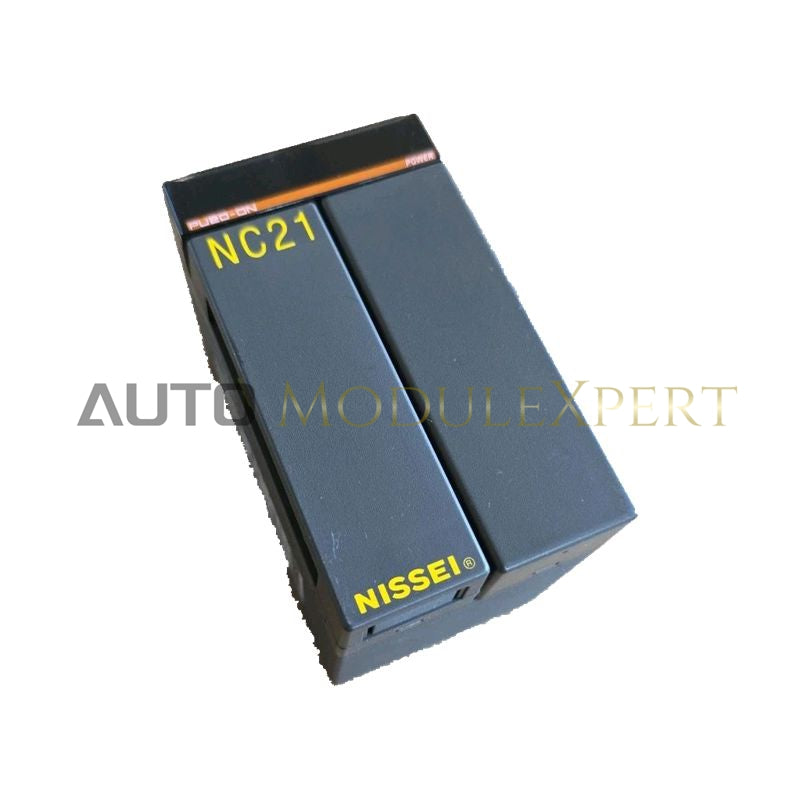

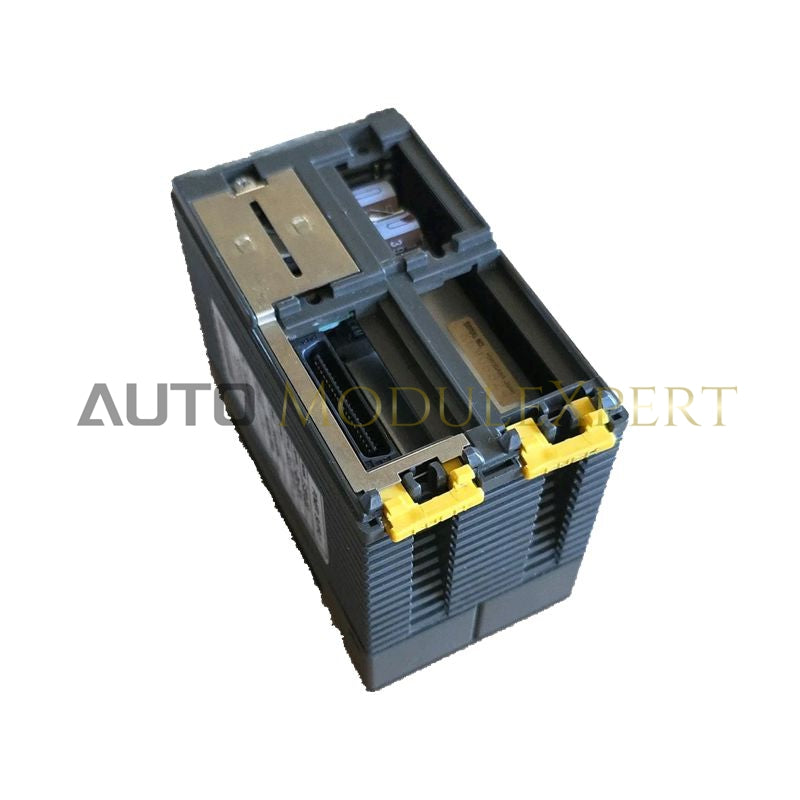

The F3PU20-0N is a high-performance system power supply module engineered for the Yokogawa FA-M3 series controller racks. This module functions as the primary power source for the PLC backplane, converting universal AC input into a stabilized 5 V DC supply required for CPU modules, communication interfaces, and I/O cards. Unlike standard entry-level power units, the F3PU20-0N offers an enhanced output current of 4.3 A, making it the preferred choice for high-density configurations or systems utilizing power-hungry processor modules.
Built to withstand the rigors of industrial electrical grids, the F3PU20-0N features advanced noise immunity and a significant power-failure ride-through capability. Its robust dielectric strength and insulation resistance parameters ensure that sensitive logic components are protected from primary-side electrical surges and common-mode noise.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Permissible Voltage Fluctuation | 85 V to 264 V AC; 47 Hz to 63 Hz |
| Secondary Output | 5 V DC at 4.3 A (Rated) |
| Power Consumption | 85 VA maximum |
| Inrush Current Handling | 20 A at 120 V AC; 45 A at 240 V AC (Cold start at 25°C) |
| Momentary Power Failure Protection | Maintains output for up to 20 ms during voltage dips |
| Insulation Resistance | ≥ 5 MΩ at 500 V DC (Between AC terminals and Frame Ground) |
| Withstanding Voltage | 1500 V AC for 60 seconds |
| Noise Suppression | Up to 1500 Vp-p (Pulse width 1 µs, Rise time 1 ns) |
| Mounting Location | Dedicated power slot on the FA-M3 base unit |
| Physical Dimensions | 58 mm (W) x 100 mm (H) x 83.2 mm (D) |
System Integration and Performance
The F3PU20-0N is essential for "Range-Free" controller setups where the total current draw of the modules exceeds the capacity of smaller supplies like the F3PU10. It ensures that the 5 V DC rail remains within strict tolerances to prevent logic errors or unplanned CPU resets. The module is housed in a compact, vented enclosure designed for optimal thermal dissipation within standard electrical cabinets.
Technical FAQ
-
Question: Is the F3PU20-0N compatible with 24 V DC input systems?
Answer: No, the F3PU20-0N is an AC-input module. For 24 V DC power requirements, you should utilize the F3PU16 or F3PU26 series modules. -
Question: How can I tell if the module is functioning correctly?
Answer: The front panel includes a status LED. If the LED is green, the 5 V DC output is within the healthy operational range. If the LED is off while AC power is present, it may indicate an internal fuse failure or an output short circuit.
