Technical Interface Overview

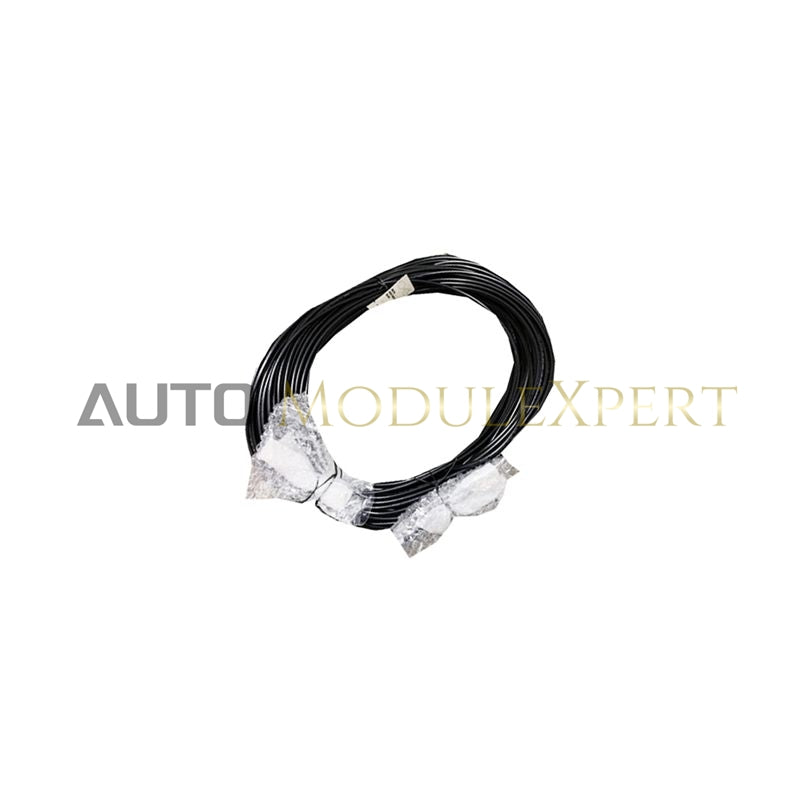

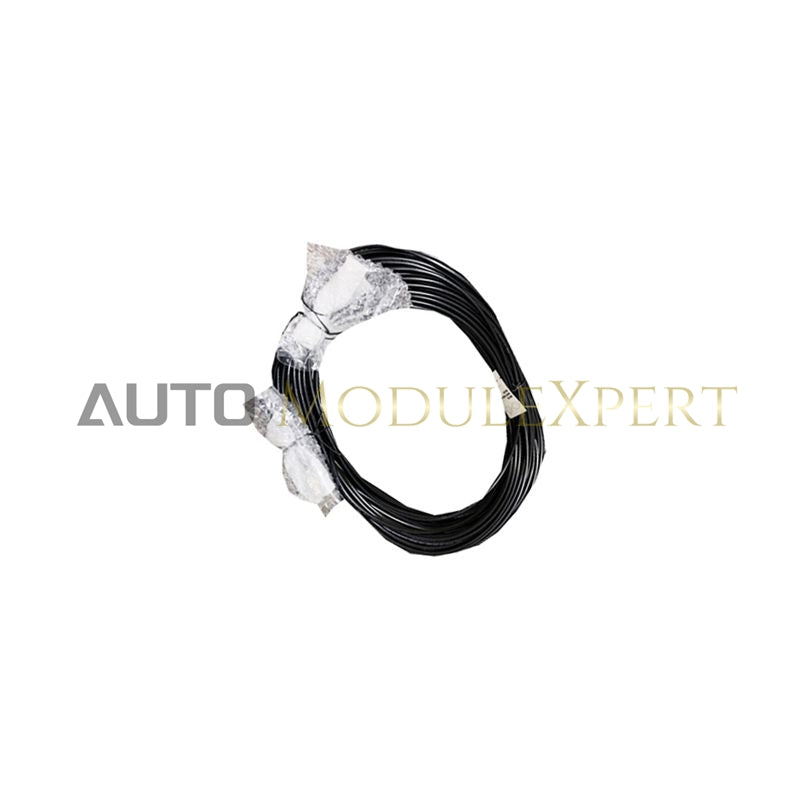

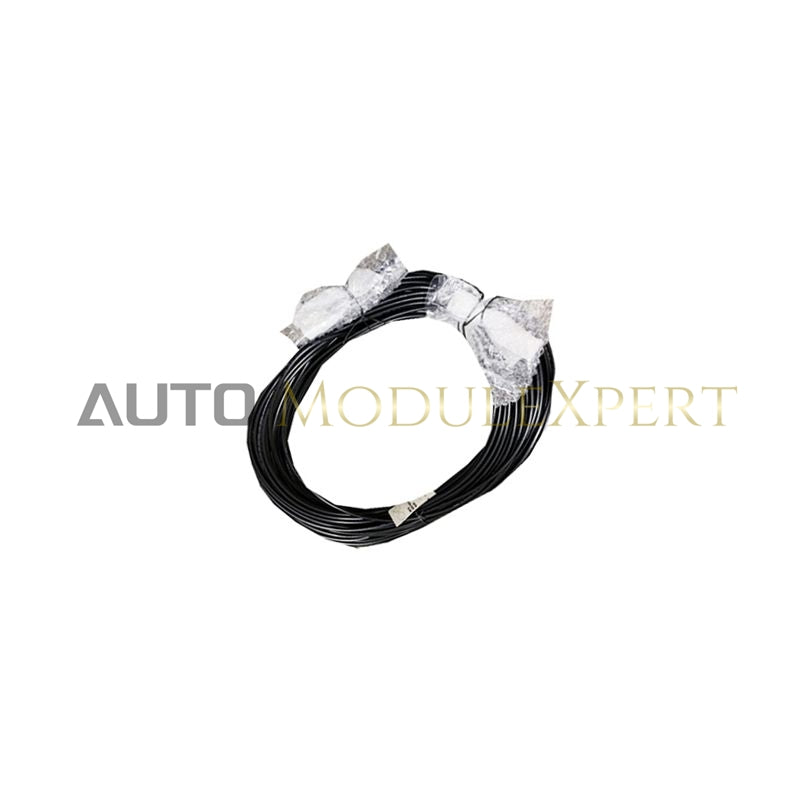

The YCB141-M002 is a high-precision coaxial interconnect cable designed for Yokogawa V net communication systems. It supports 10BASE-2 (Thin Ethernet) protocol implementations used in legacy and high-availability CENTUM distributed control architectures.
This cable provides the physical communication path between Field Control Stations (FCS) and bus couplers, ensuring deterministic and low-latency control data transmission. The 2-meter (M002) length is typically used for cross-cabinet or adjacent rack connections when shorter cables are insufficient.
Comprehensive Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YCB141-M002 |
| Protocol | V net (10BASE-2 proprietary implementation) |
| Cable Length | 2.0 meters |
| Impedance | 50 Ω |
| Connector Type | Yokogawa proprietary V net connectors |
| Data Transmission Rate | 10 Mbps |
| Shielding | Multi-layer braided shielding |
| Environmental Rating | Industrial control room grade |
| Minimum Bend Radius | 30 mm |
| Weight | 0.22 kg |
Installation Application Notes
-
Redundant Control Linking: Used for primary/backup bus coupler connections in redundant architectures
-
Inter-Rack Wiring: Connects control racks across standard industrial aisle distances
-
Signal Integrity Maintenance: Helps reduce bus communication errors caused by cable aging or connector wear
Technical FAQ
Can I use a standard 50 Ω coaxial cable?
No. Although impedance may match, YCB141 cables use specialized shielding and connectors tested for V net communication reliability. Non-certified cables may cause communication instability.
Is there a maximum daisy-chain length?
Yes. A V net segment is typically limited to about 185 meters. Each connection introduces slight signal loss, so unnecessary junctions should be avoided.
Does it support Vnet/IP?
No. The YCB141 series is designed for coaxial V net networks only. Vnet/IP systems require Ethernet-based cables such as the YCB146 series.
