Overview

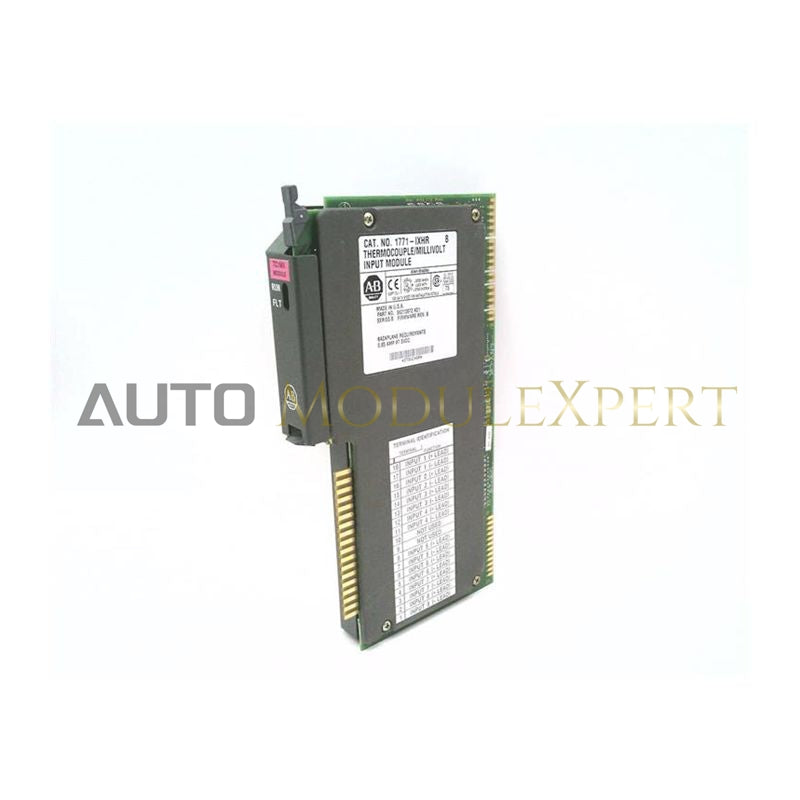

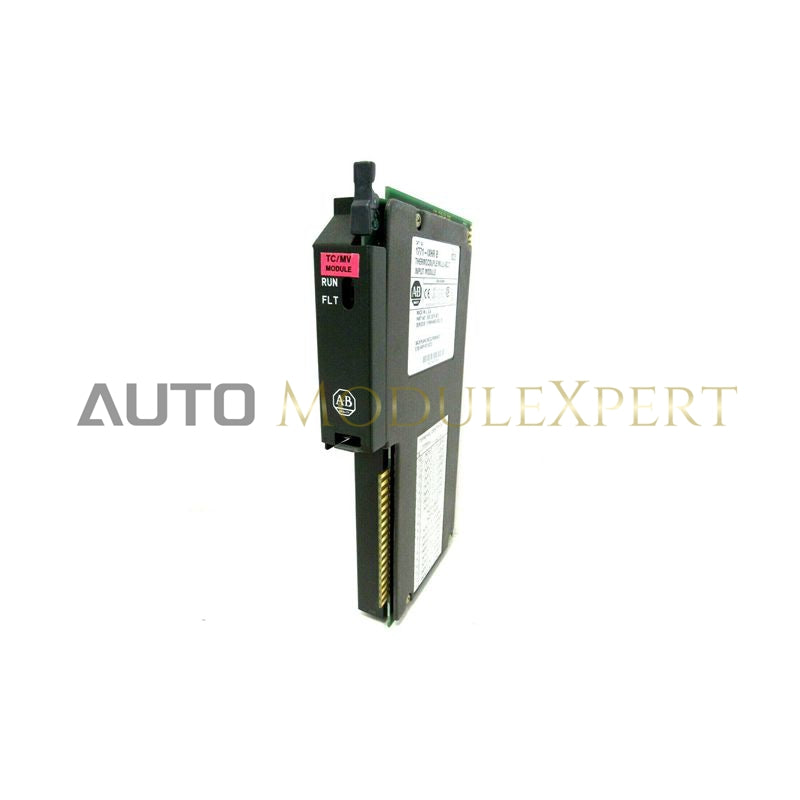

The Allen-Bradley 1771-IXHR Thermocouple Millivolt Input Module is part of the PLC-5 I/O family, designed to provide accurate temperature measurement and millivolt signal input for industrial processes. It interfaces directly with thermocouples and other millivolt-generating devices, converting signals into digital values for use in PLC-5 controllers. Moreover, its high-resolution design ensures precise monitoring, while reinforced isolation guarantees safe and reliable operation in demanding environments. Engineers value its accuracy and flexibility, while operators benefit from simplified integration into existing PLC-5 systems.

Technical Data

Typical Applications

• Oil & Gas: Temperature monitoring in pipelines, furnaces, and refining processes.

• Chemical Processing: Accurate thermocouple input for reactors and distillation units.

• Power Generation: Monitors turbine and boiler temperatures for safe operation.

• Food & Beverage: Ensures precise temperature control in ovens, freezers, and batch processes.

• Water Treatment Plants: Provides millivolt input monitoring for sensors and instrumentation.

For example, the 1771-IXHR is often deployed in boiler control systems where precise thermocouple readings are critical for efficiency and safety.

FAQ

Q1: What is the main function of the 1771-IXHR module?
A1: It measures thermocouple and millivolt signals, converting them into digital values for PLC-5 controllers.

Q2: Which signal types does it support?
A2: It supports standard thermocouple types (J, K, T, etc.) and millivolt inputs.

Q3: Is the module isolated?
A3: Yes, it provides reinforced isolation between I/O channels and the backplane.

Q4: Which system is it compatible with?
A4: It integrates seamlessly with Allen-Bradley PLC-5 systems.

Q5: What industries commonly use this module?
A5: It is widely applied in oil & gas, chemical processing, power generation, food & beverage, and water treatment sectors.
