Overview

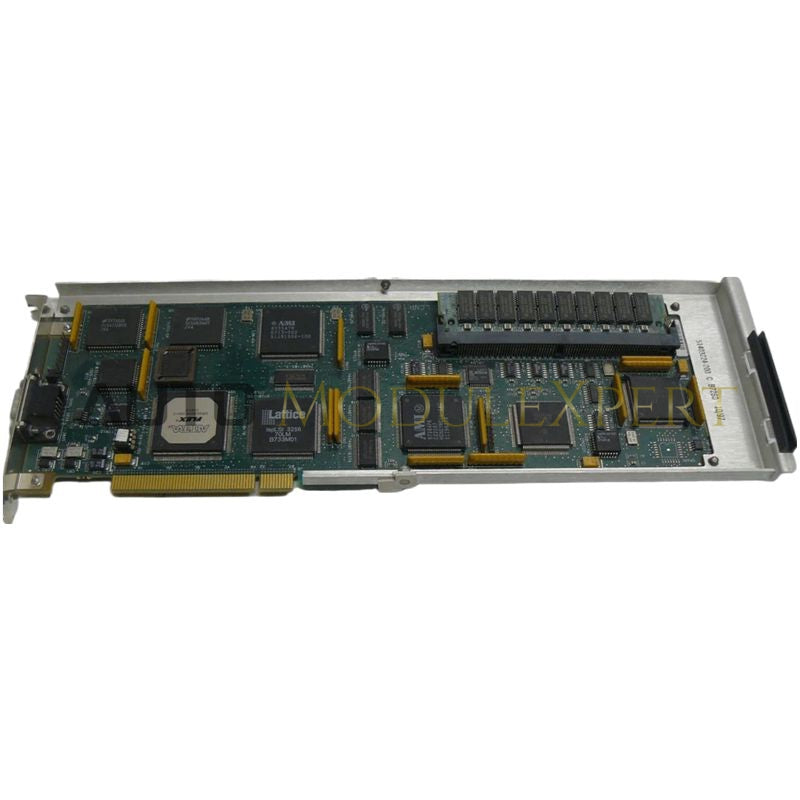

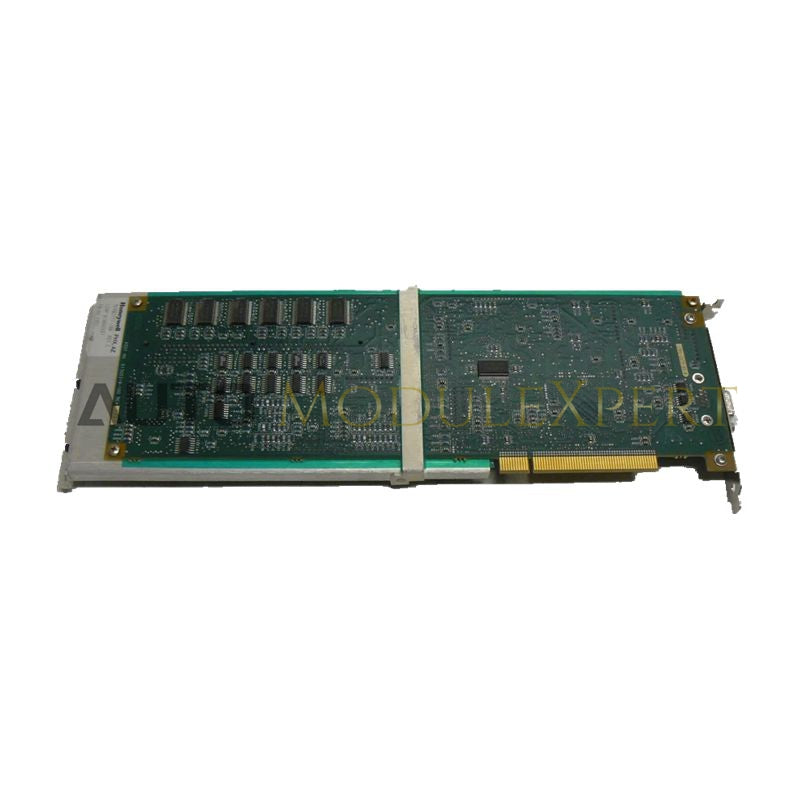

The Honeywell 51402797-200 LCNP W/ GUIDE GUS Board is an early LCNP (Local Control Network Processor) card designed for GUS operator stations. Its primary role is to provide network connectivity and communication between the operator workstation and the Honeywell LCN, which is the central nervous system of Honeywell’s TDC 3000 and Experion PKS systems.

By installing this board, a PC becomes a fully functional GUS station, capable of interacting with controllers, I/O modules, and other system components across the distributed control architecture.

Technical Data

Key Features

• LCN Interface: Enables communication between PC-based GUS stations and Honeywell’s Local Control Network.

• System Integration: Essential for connecting operator workstations to the distributed control system.

• Reliability: Designed for industrial environments requiring continuous operation.

• Ease of Installation: Includes a guide board for proper alignment and secure installation.

Typical Applications

• Operator Workstations (GUS): Provides the interface needed for PCs to function as operator stations in Honeywell DCS systems.

• Control Room Integration: Ensures seamless communication between human operators and process controllers.

• Industrial Automation: Used in power plants, petrochemical facilities, oil & gas refineries, and manufacturing plants where Honeywell DCS systems are deployed.

For example, in a refinery control room, the 51402797-200 LCNP board allows operator stations to access real-time process data, alarms, and control functions directly from the LCN.

FAQ

Q1: What does the LCNP board do?
A1: It provides the communication interface between a PC and Honeywell’s Local Control Network (LCN).

Q2: Why is the GUIDE GUS board important?
A2: It ensures proper installation and alignment, making the PC a reliable GUS station.

Q3: Which systems is it compatible with?
A3: It is compatible with Honeywell TDC 3000 and Experion PKS systems.

Q4: What industries use this board?
A4: It is used in industries such as power generation, petrochemical, oil & gas, and heavy manufacturing.

Q5: Can a PC function as a GUS without this board?
A5: No, this board is the key component that enables PC-to-LCN communication.
