Overview

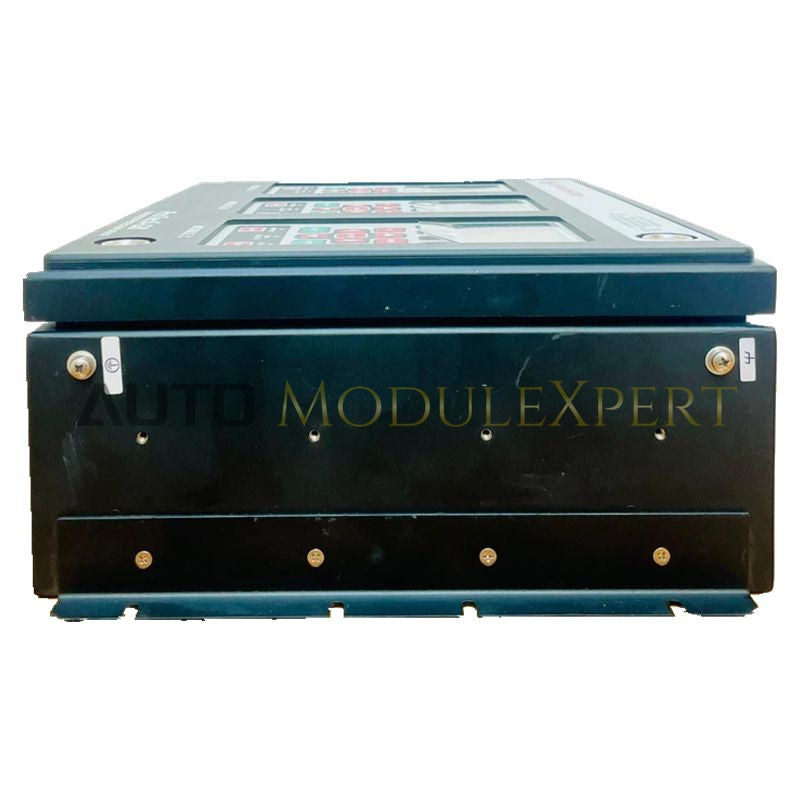

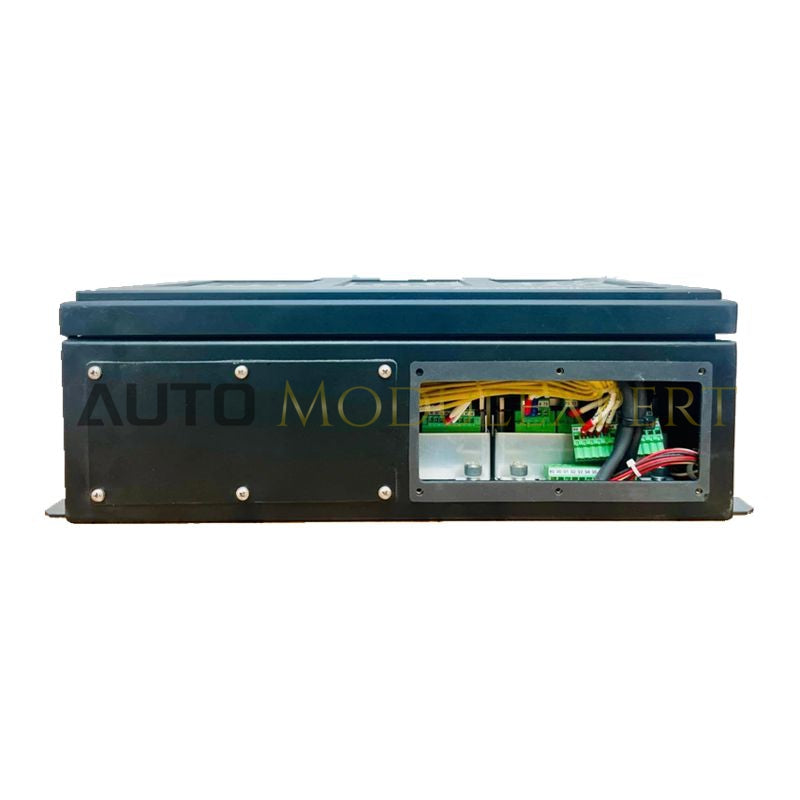

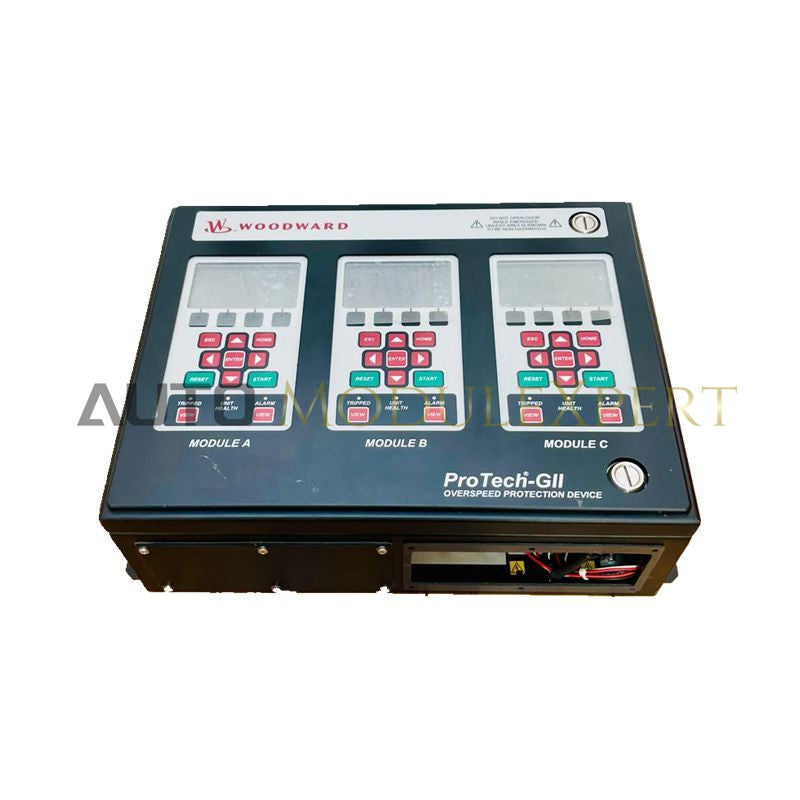

The Woodward 8237-1246 is an overspeed protection device designed to detect overspeed or overacceleration events in turbines and initiate rapid turbine shutdown to prevent mechanical damage. It is widely used in power generation and industrial plants where turbine safety is paramount. Moreover, the ProTech-GII platform offers triple modular redundancy (TMR) with voted inputs, ensuring fault tolerance and compliance with stringent safety standards. Engineers value its fast response time and robust design, while operators benefit from its intuitive interface and diagnostic functions. Additionally, the bulkhead-mounted design of the 8237-1246 provides IP56 protection, making it suitable for harsh environments.

Technical Data

Typical Applications

• Power Generation Plants: Protects turbines from catastrophic overspeed events, ensuring reliable operations in gas, steam, and hydro turbines.

• Petrochemical Facilities: Safeguards steam turbines used in refining and chemical processing.

• Hydroelectric Stations: Provides real-time overspeed detection for hydro turbines to prevent mechanical failures.

• Industrial Manufacturing: Ensures the safe operation of gas turbines used in large-scale manufacturing processes.

• Combined Cycle Plants: Integrates with control systems to provide redundancy and safety compliance for turbine protection.

For instance, the 8237-1246 is often deployed in gas turbine power stations, where overspeed detection must be instantaneous to prevent mechanical damage and ensure continuous safe operation. Therefore, its triple modular redundancy directly contributes to improved safety, compliance, and operational continuity.

FAQ

Q1: What is the main function of the Woodward 8237-1246?
A1: It detects turbine overspeed or overacceleration and initiates a safe shutdown sequence to prevent mechanical damage.

Q2: Which turbines can it protect?
A2: It is suitable for steam, gas, and hydro turbines of all sizes.

Q3: What safety architecture does it use?
A3: It employs triple modular redundancy (TMR) with voted inputs for fault tolerance and safety compliance.

Q4: What is the enclosure rating?
A4: It features IP56 protection, making it suitable for harsh industrial environments where dust and water ingress may be a concern.

Q5: What industries commonly use this device?
A5: It is widely applied in power generation, petrochemical, hydroelectric, and industrial manufacturing sectors.
