Overview

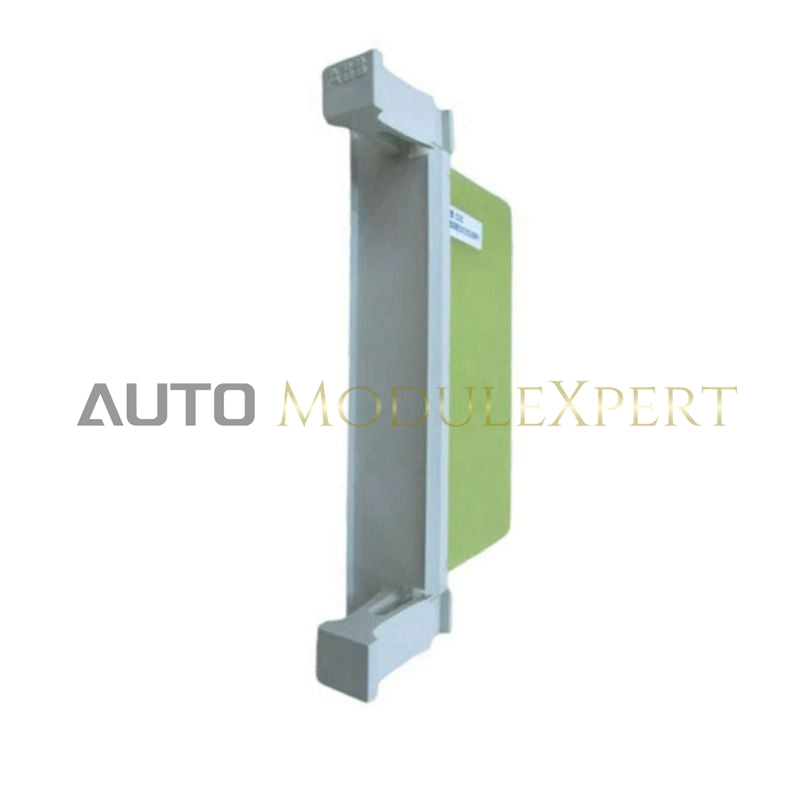

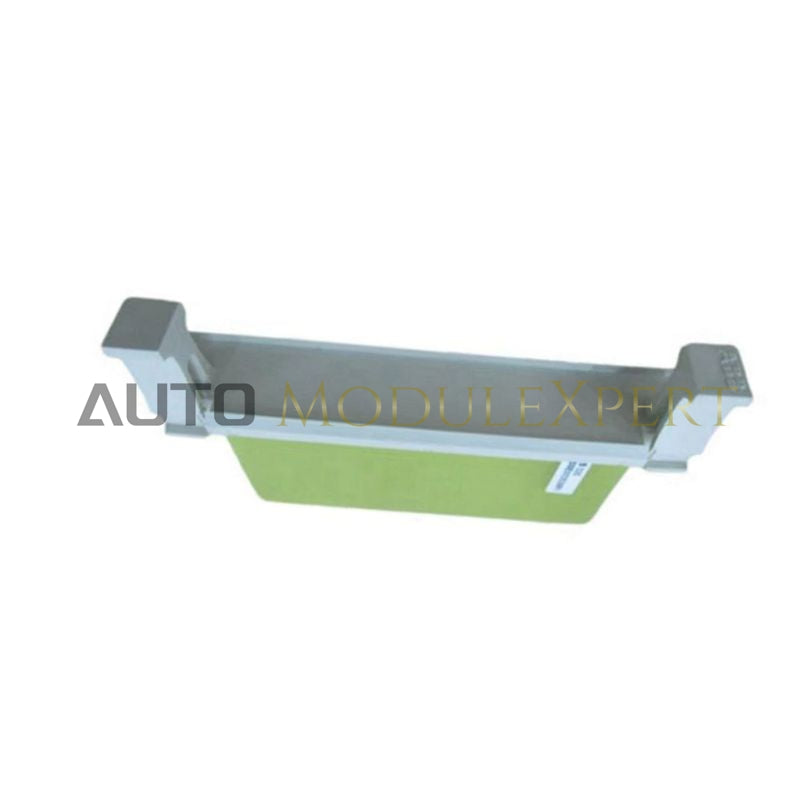

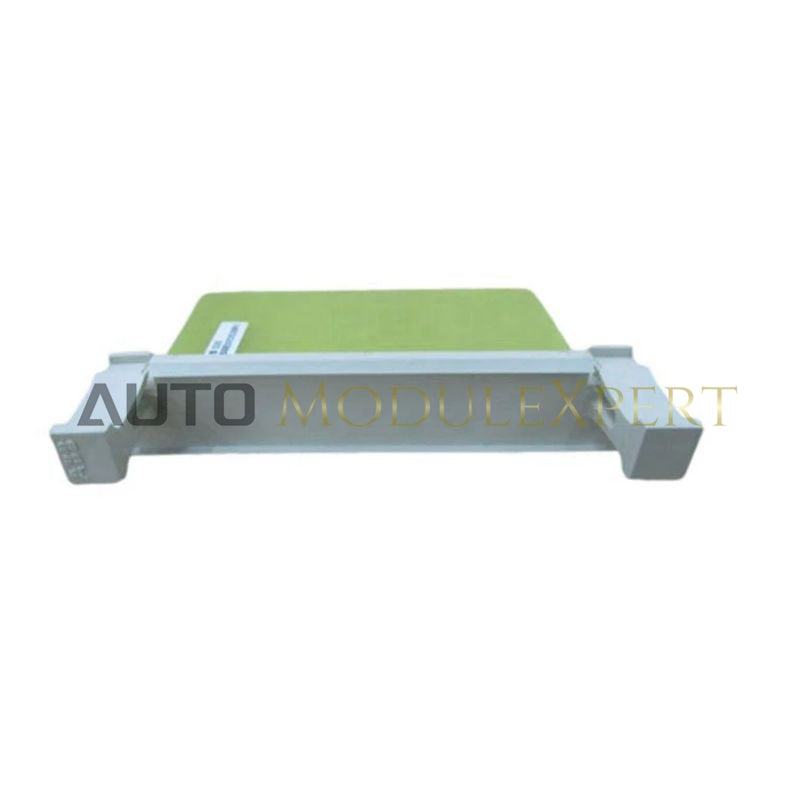

The ABB RB520 module is categorized as a control system accessory. Unlike functional I/O or communication modules, the RB520 does not perform signal processing or control tasks. Instead, it serves as a dummy module that fills empty slots in ABB racks or termination units.

This design is important for:

• System protection: Prevents dust, debris, or accidental contact with exposed connectors.

• Airflow management: Maintains proper cooling and ventilation inside the rack.

• Mechanical stability: Ensures modules are securely aligned and reduces vibration effects.

• Compliance: Meets industrial standards for safety and installation.

Technical Data

Typical Applications

• Power generation: Installed in turbine and excitation control racks to fill unused slots.

• Process industries: Used in chemical, oil & gas, and pharmaceutical plants for rack integrity.

• Water treatment facilities: Protects unused slots in distributed I/O racks.

• Manufacturing automation: Maintains proper rack cooling and safety in production systems.

Example: In a refinery control system, the RB520 module may be inserted into unused rack slots to prevent dust ingress and maintain optimal cooling airflow.

FAQ

Q1: Does the ABB RB520 perform any control functions?
A1: No, it is a dummy module used for slot protection.

Q2: Why is it necessary?
A2: It ensures system safety, airflow management, and mechanical stability.

Q3: Which ABB systems use RB520?
A3: It is compatible with Advant Master Process Control System and Symphony Plus racks.

Q4: Is it RoHS compliant?
A4: It is exempt from RoHS scope under industrial equipment provisions.
