Product Overview

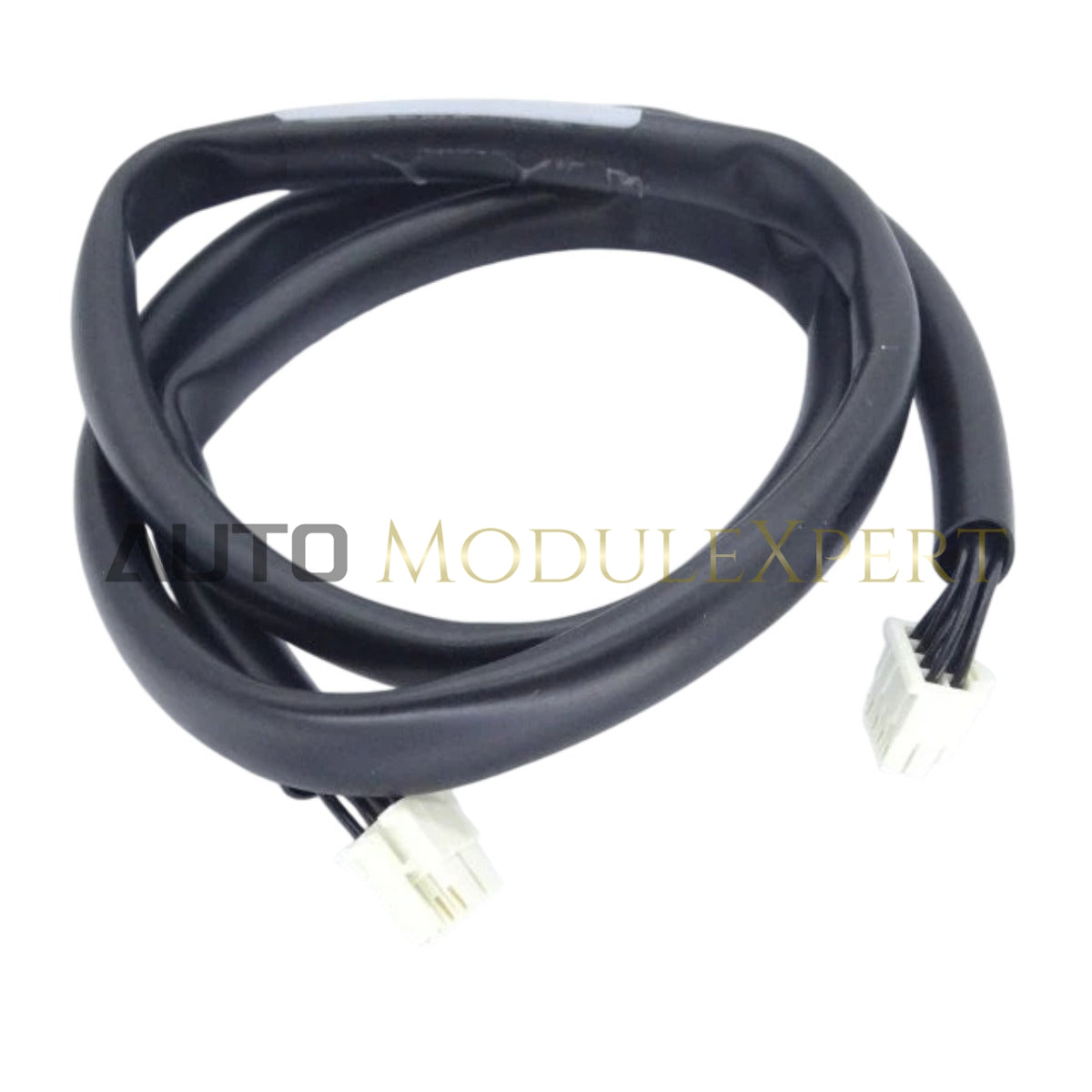

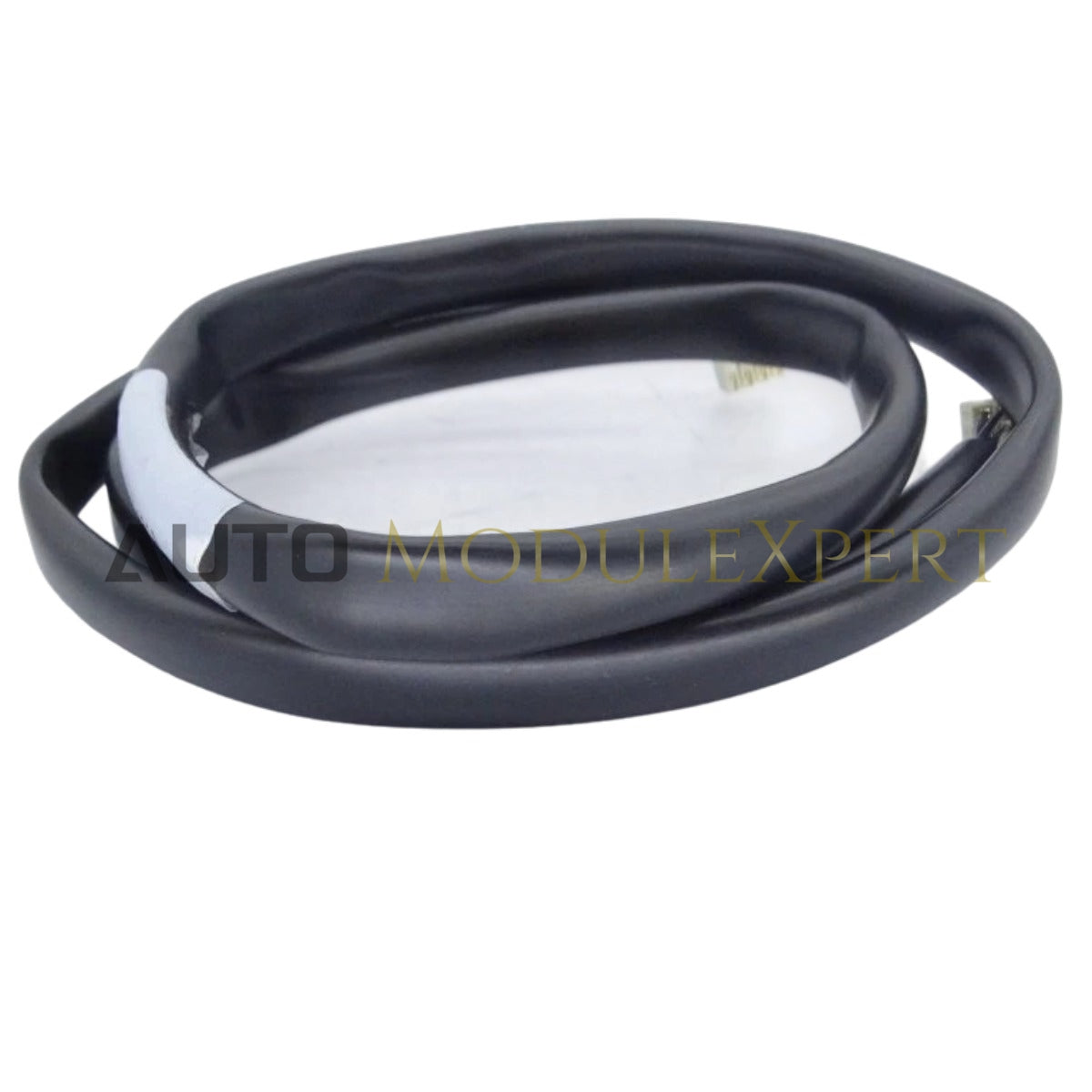

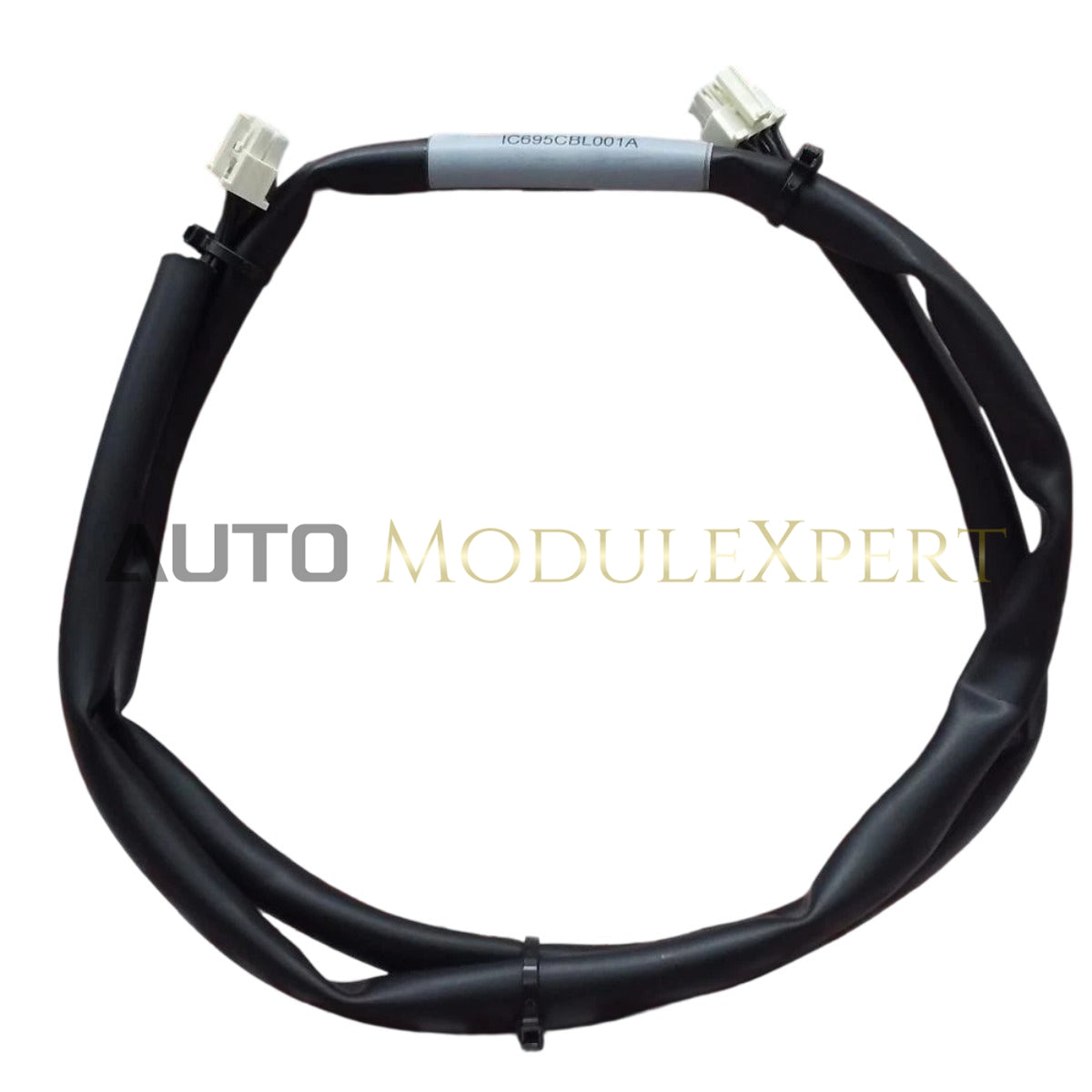

The IC695CBL001 is a dedicated interconnect cable designed for PACSystems RX3i CPUs and their external Energy Packs. With a length of 3 feet (0.91 meters), it ensures reliable transfer of backup power to maintain volatile memory and register data during total power loss. Supplied as 100% Brand New original stock, it delivers the correct electrical characteristics and shielding required for critical backup operations.

Technical Specifications

Engineering Advantages

Optimized Power Path
24 AWG conductors provide low resistance with sufficient flexibility, ensuring immediate and stable power delivery from the Energy Pack during outages.

Compact Footprint
The 3-foot length minimizes excess cabling, improving airflow and cable management in dense control cabinets.

High Dielectric Strength
300 VAC insulation protects against electrical noise, voltage spikes, and cross-talk from adjacent high-power wiring.

Secure Locking Connectors
Industrial-grade connectors resist vibration and prevent accidental disconnection, safeguarding CPU memory retention.

FAQs

Can the cable length be extended?
It is not recommended. Extending the cable may introduce resistance that can reduce the effectiveness of the Energy Pack during discharge.

Is this cable compatible with Series 90-30 systems?
No. It is specifically designed for PACSystems RX3i platforms. Series 90-30 systems use different backup methods.

Does the cable carry data or only power?
Primarily power, along with status signaling that allows the CPU to monitor the Energy Pack’s condition.

How should the cable be installed?
Power down all equipment before installation. Securely connect both ends until locked, and route the cable away from high-noise sources such as VFDs to ensure signal integrity.
