Product Description

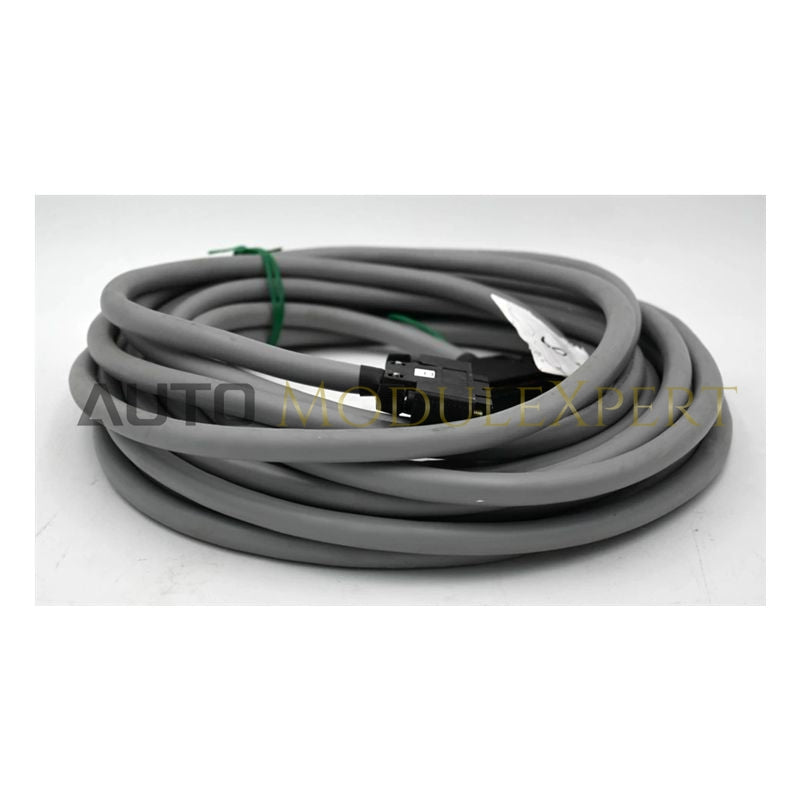

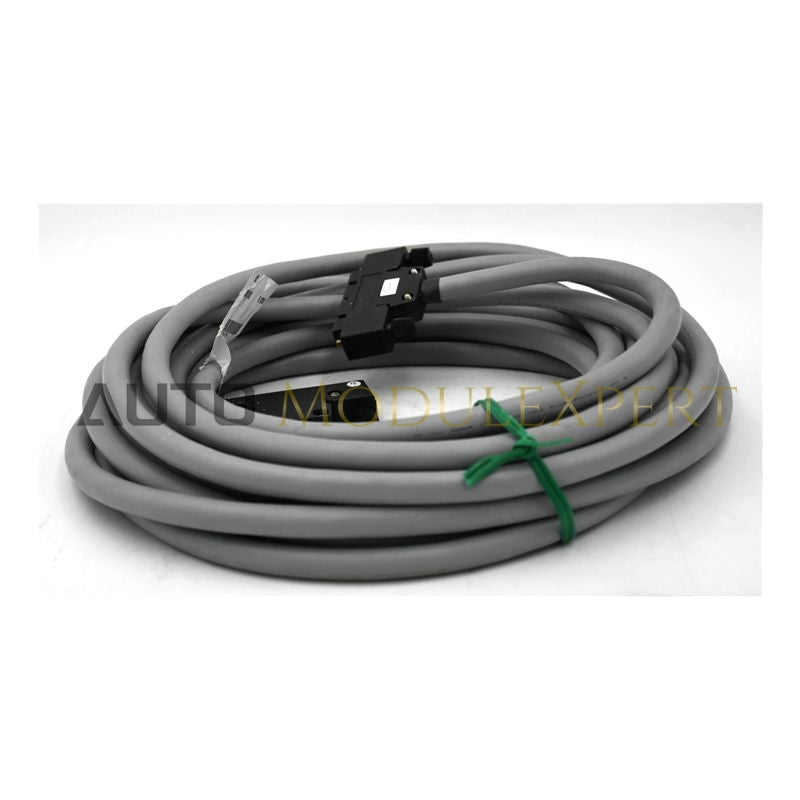

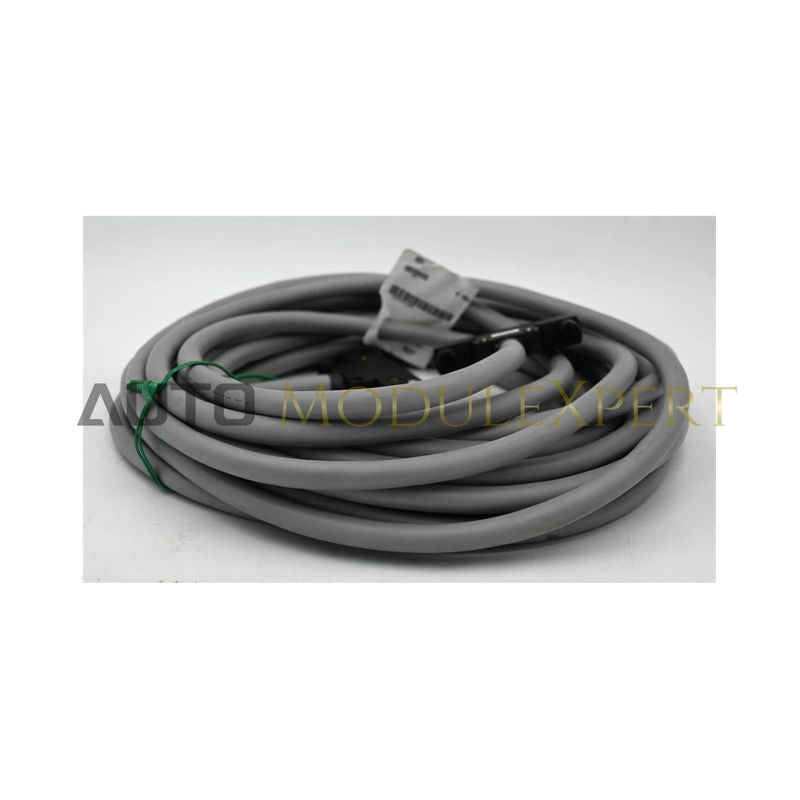

The KS10-07*A is a high-density 32-channel signal cable designed for use with Yokogawa CENTUM and Yokogawa FA-M3 control systems. It provides a reliable interconnection between I/O modules and terminal boards, ensuring stable transmission of discrete or analog signals.

Equipped with dual 50-pin connectors, the KS10-07*A delivers a secure, low-impedance signal path while minimizing electromagnetic interference (EMI) and crosstalk. The 25-meter length makes it suitable for cabinet-to-cabinet wiring in large control panels where controllers and terminal racks are installed in separate sections.

The Style A construction features reinforced outer jacketing and strain relief for improved durability in industrial environments. This cable is essential for maintaining signal integrity in high-channel-count I/O applications.

Technical Specifications

Application

The KS10-07*A is commonly used in:

• DCS cabinet-to-cabinet interconnections

• 32-point digital input/output module wiring

• Analog signal transmission between I/O cards and terminal boards

• Centralized marshalling panel configurations

It provides a structured and organized alternative to individual point-to-point wiring, reducing installation time and improving maintainability in control cabinets.

FAQ

Q1: Does the 25-meter length affect signal latency?
For standard 24V DC or 4–20 mA signals, a 25 m cable introduces negligible resistance and no measurable latency in industrial control loops.

Q2: Is this cable suitable for outdoor cable trays?
The KS10-07*A is intended for indoor cabinet routing. For outdoor installations, it should be installed in sealed conduit to protect against UV exposure and moisture.

Q3: Can it be used for both analog and digital signals?
Yes, provided the pin configuration of the connected modules matches the 50-pin assignment of the KS10-07*A.
