Product Description

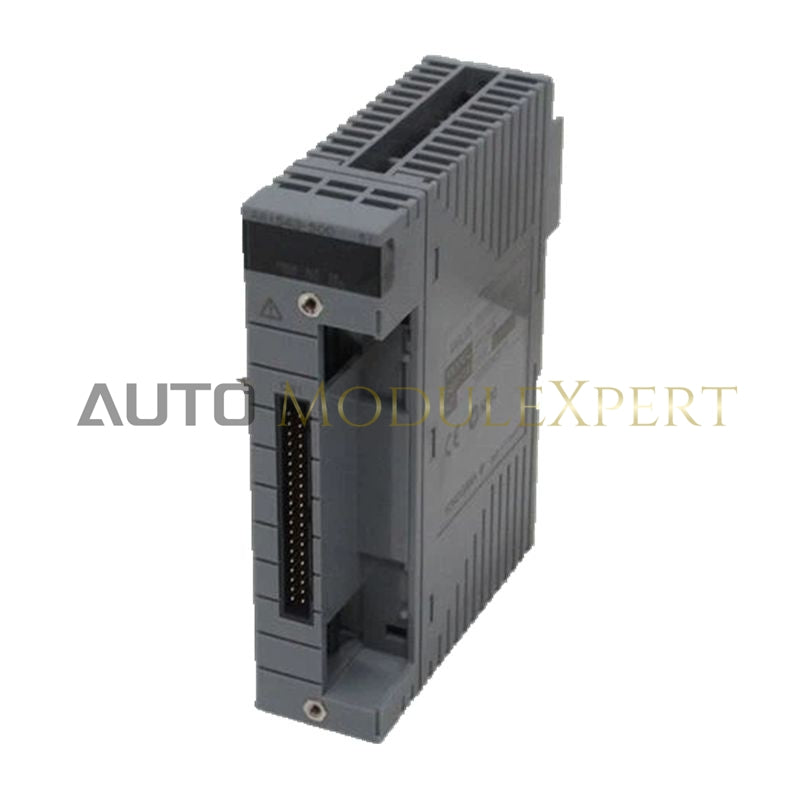

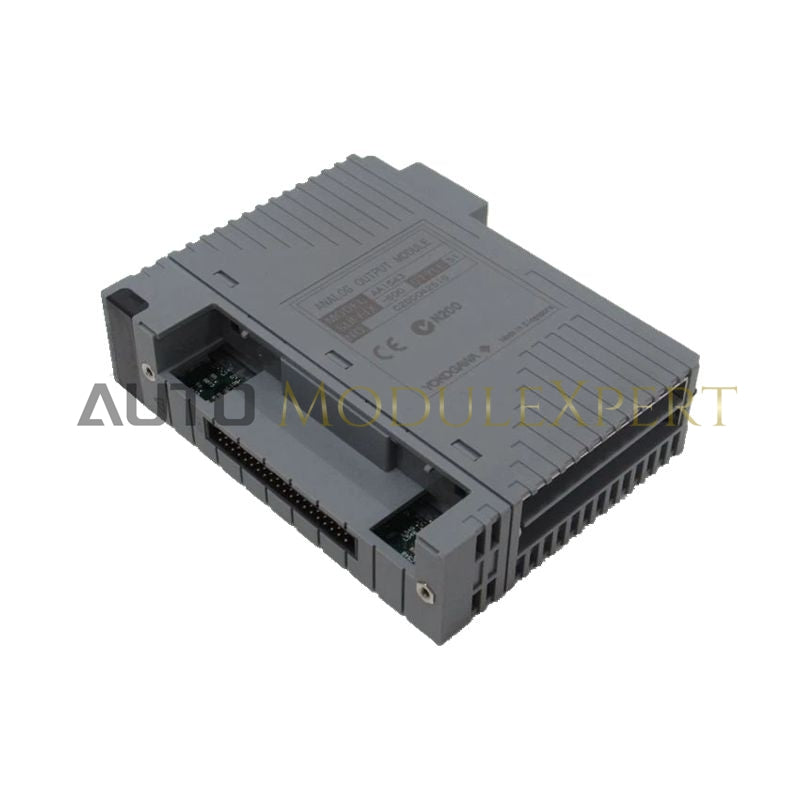

The AAI543-S00 S1 is a high-density analog output module designed for Yokogawa CENTUM VP and CS 3000 distributed control systems. It provides 16 isolated channels of 4–20 mA current output, serving as the primary interface for modulating valves, actuators, and speed controllers.

As a Standard S-series module, this unit is optimized for fast, reliable analog control without HART digital communication.

Key Features

• Mission-Critical Redundancy: Supports dual-redundant configurations with a switch-over time ≤100 ms

• Total Signal Isolation: Each channel is isolated from the system backplane up to 1500 V AC to prevent electrical interference

• Built-in Fault Diagnostics: Intelligent open-circuit detection alerts when loop current falls below 0.65 mA

• High-Speed Response: 10 ms data update period ensures near-instantaneous control for PID loops

Technical Specifications

Industrial Applications

The AAI543-S00 is widely used in water treatment, HVAC control, and general manufacturing. It is ideal for driving analog positioners and frequency converters, providing reliable 4–20 mA signals with robust isolation and redundancy support for continuous plant operation.

Technical FAQ

Q: Does this module support HART communication?
A: No. The AAI543-S00 is a standard analog module. For HART-enabled digital diagnostics, the AAI543-H00 should be selected.

Q: What happens to the output during a redundant switch-over?
A: In a dual-redundant setup, the standby module assumes control within 100 ms, typically fast enough to prevent mechanical movement disruption in valves or actuators.
