Product Description

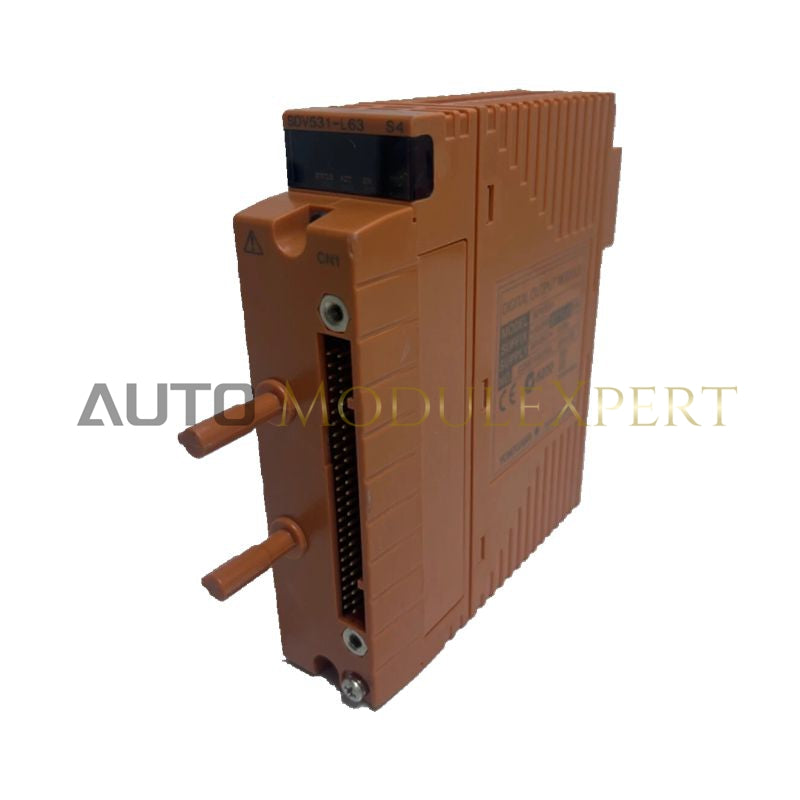

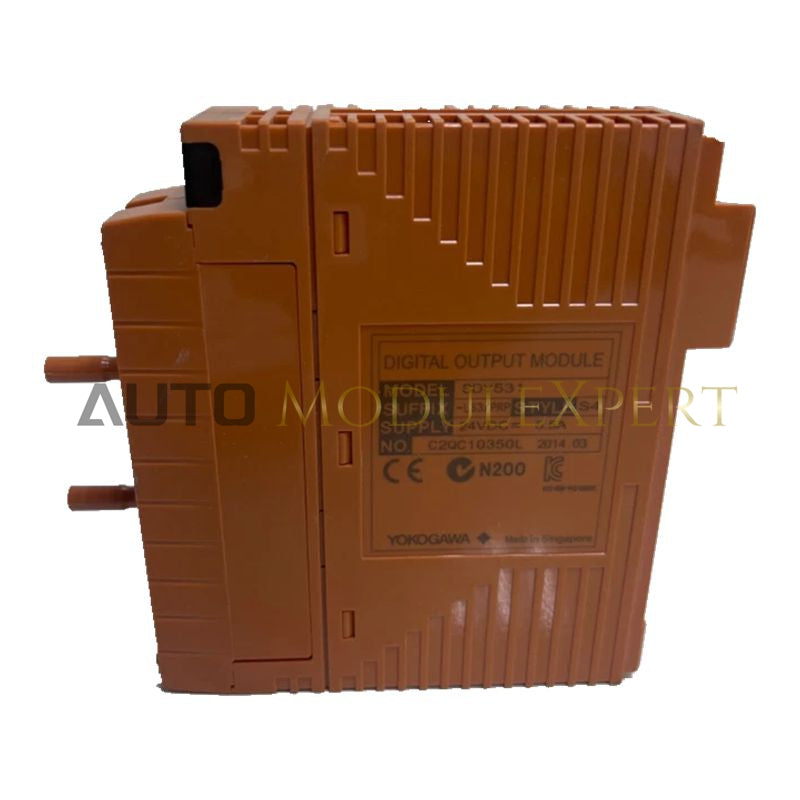

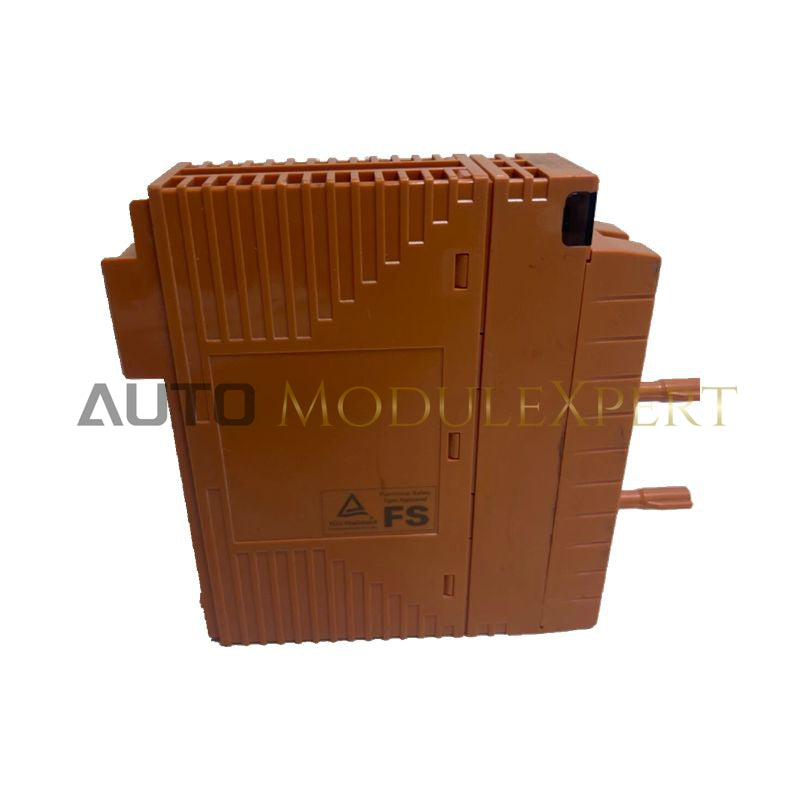

The SDV531-S53/B4S10 is a high-integrity 8-channel safety digital output module for the Yokogawa ProSafe-RS Safety Instrumented System (SIS). Designed for extreme industrial environments, it features ISA Standard G3 conformal coating for chemical resistance and operates across a wide temperature range of -20 to 70°C.

This current-source output module is used to drive critical final elements such as solenoid valves and safety relays. The /B4S10 option provides a dual-redundant pressure clamp terminal interface with integrated surge absorbers, ensuring high system availability while protecting sensitive electronics from voltage spikes and electrical surges. This makes it ideal for outdoor enclosures or remote industrial installations exposed to corrosive or noisy environments.

Technical Specifications

Application Scenarios

The SDV531-S53/B4S10 is typically deployed in oil and gas, power, and petrochemical industries for safety-critical output loops, including:

• Emergency Shutdown (ESD) “de-energize-to-trip” loops

• High-reliability actuation of solenoids and relays

• Applications in corrosive or electrically noisy environments, such as offshore platforms or remote processing sites

Frequently Asked Questions

What does the S53 suffix signify?

• “5”: Compatible with pressure clamp terminals or MIL cables (non-intrinsically safe, i.e., not for explosion-proof areas)

• “3”: Hardware rated for high-temperature operation and equipped with G3-level corrosion protection against gases like hydrogen sulfide

How does /B4S10 differ from /B4D00?
Both options provide dual-redundant terminals, but /B4S10 includes integrated surge absorbers to protect against electrical transients and lightning-induced surges, whereas /B4D00 does not.
