š Product Overview

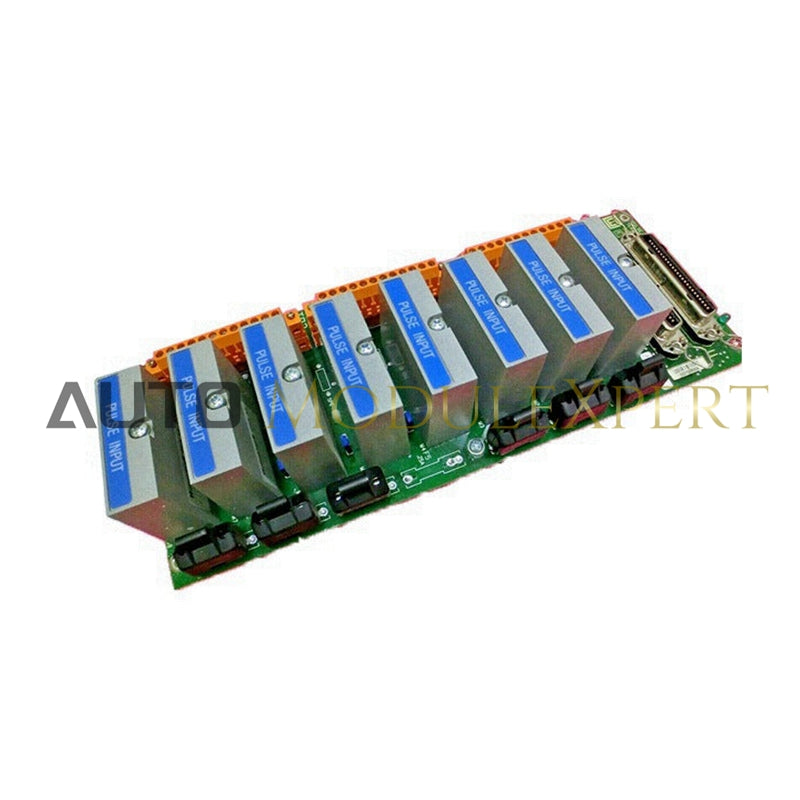

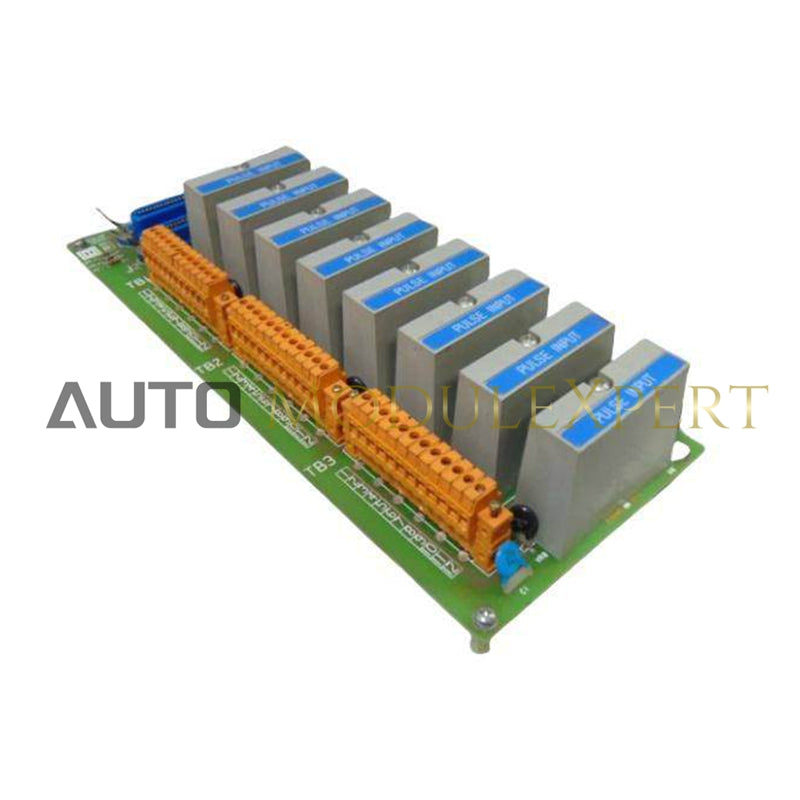

TheĀ Honeywell 51304084-100 MU-TPIX12Ā is aĀ high-performance Pulse Input Termination ModuleĀ designed for use in HoneywellāsĀ Distributed Control Systems (DCS), includingĀ Experion PKS.
It is engineered toĀ receive and condition pulse signalsĀ from field devices such asĀ flow meters, encoders, and counters, converting them intoĀ clean digital signalsĀ forĀ accurate process monitoring and control.
This module supportsĀ both rectangular and sine wave inputsĀ across aĀ wide frequency range, making it ideal forĀ high-speed countingĀ andĀ time-sensitive applications.
ItsĀ robust designĀ ensures stable operation inĀ harsh industrial environments, with excellentĀ noise immunityĀ andĀ signal integrity.
āļø Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51304084-100 (MU-TPIX12) |
| Product Type | Pulse Input Termination Module |
| Input Channels | 8 pulse input points |
| Input Signal Type | Rectangular or sine wave |
| Frequency Range | DC to 20 kHz |
| Input Voltage Range | 5ā24 VDC |
| Output Signal Type | Digital signal |
| Output Voltage Range | Matches input voltage |
| Mounting Method | DIN rail mounting |
| Dimensions | 2.8 cm Ć 37.8 cm Ć 27.8 cm (1.1 in Ć 14.9 in Ć 11 in) |
| Weight | 0.62 kg (1.37 lbs) |
| Operating Temperature | ā40Ā°C to +70Ā°C |
| Coating | Not conformally coated |
| Redundancy | Not supported |
| Certifications | CE, UL508, CSA, TUV |
| Warranty | 12 months |
| Country of Origin | USA |
š Key Features
-
šÆĀ High-Frequency Pulse Handling
Supports up to 20 kHz input for fast and accurate signal capture -
š§©Ā Multi-Signal Compatibility
Accepts both sine and rectangular waveforms for flexible integration -
š”ļøĀ Noise Immunity
Designed for stable performance in electrically noisy environments -
š§Ā DIN Rail Mounting
Simplifies installation in control cabinets -
šĀ Digital Conversion
Converts raw pulse signals into clean digital outputs for precise control logic
