Overview

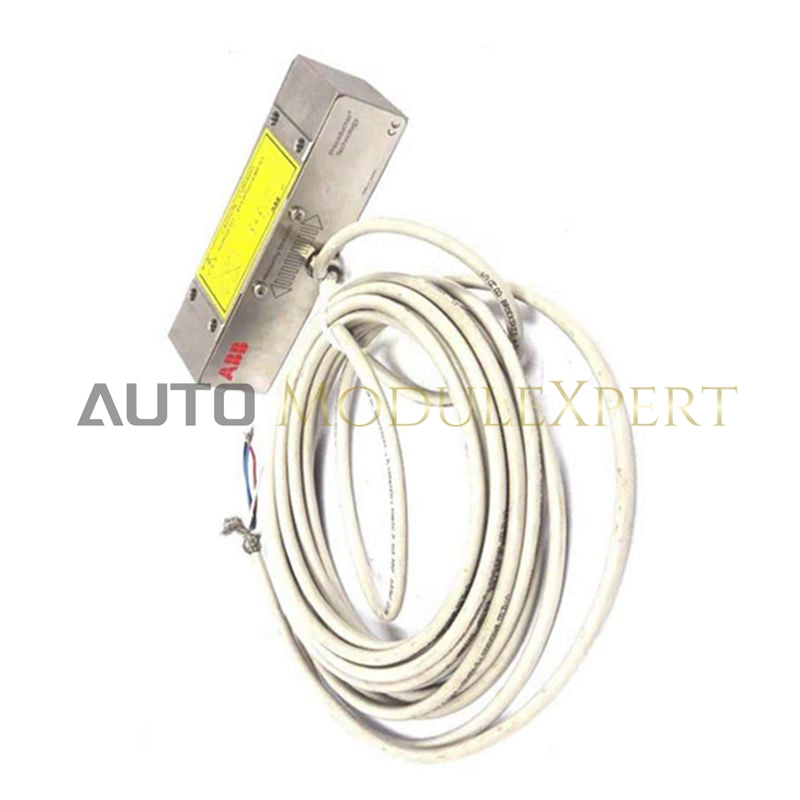

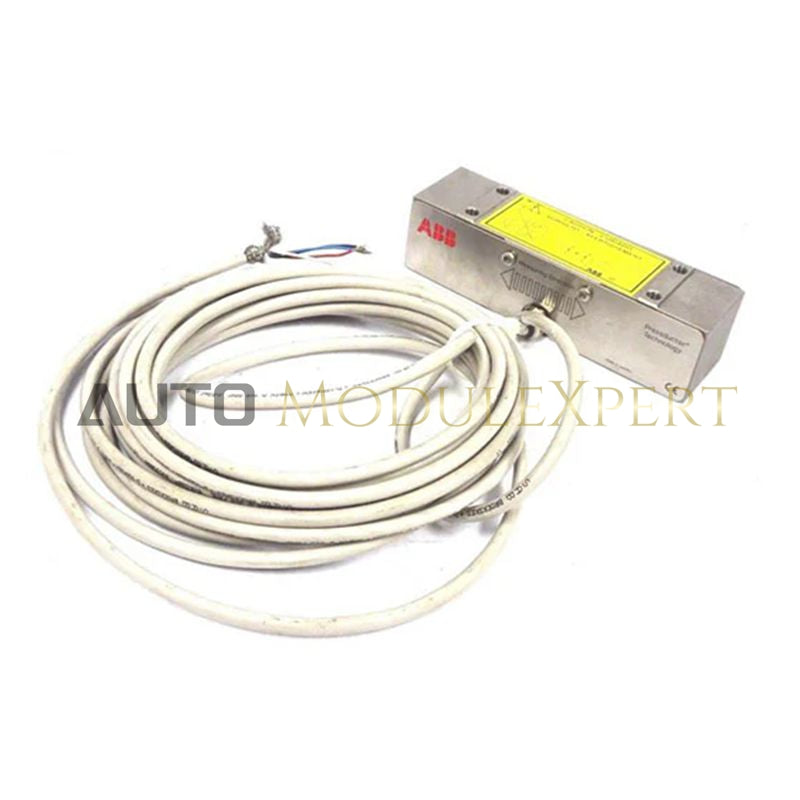

The ABB PFTL301E-0.2KN load cell is part of ABB’s renowned Pressductor® technology family, which uses magnetoelastic principles to measure mechanical force with exceptional stability and accuracy. Unlike conventional strain gauge load cells, the PFTL301E measures horizontal tension force only, eliminating the influence of roll weight and improving measurement fidelity.
This model is ideal for web tension control in paper, film, foil, textile, and packaging industries. Its compact PillowBlock design allows for direct mounting under bearing housings, simplifying installation and reducing mechanical complexity. Moreover, the sensor’s rugged stainless steel housing and sealed construction ensure reliable operation in harsh environments with dust, humidity, and vibration.
In addition, the PFTL301E-0.2KN offers a wide measurement range and does not require recalibration over time, making it a low-maintenance solution for continuous production lines.
Technical Data
| Parameter | Specification |
|---|---|
| Model | PFTL301E-0.2KN |
| Operating Temperature | –10°C to +70°C |
| Weight | 1.3kg |
Typical Applications
-
Paper and Pulp Industry: Measures web tension in coating, calendaring, and winding sections.
-
Flexible Packaging: Ensures consistent tension during lamination and slitting processes.
-
Textile Manufacturing: Controls yarn and fabric tension in weaving and finishing lines.
-
Plastic Film Production: Maintains stable tension in extrusion and printing stages.
-
Foil and Metal Strip Processing: Enables precise tension control in rolling and annealing lines.
For instance, in a high-speed packaging line, the PFTL301E-0.2KN ensures consistent tension across the web, preventing wrinkles and misalignment. Therefore, it enhances product quality and reduces waste.
FAQ
Q: What makes Pressductor® technology different from strain gauges?
A: It uses magnetoelastic effects for force measurement, offering drift-free performance and no recalibration.
Q: Can this load cell measure vertical force?
A: No, it is designed to measure horizontal tension only.
Q: Is it suitable for harsh industrial environments?
A: Yes, its stainless steel housing and IP65 rating ensure durability in dusty and humid conditions.
Q: How is it mounted?
A: It mounts directly under bearing housings in a PillowBlock configuration.
Q: What industries commonly use this model?
A: Paper, packaging, textile, film, and metal strip processing industries.
