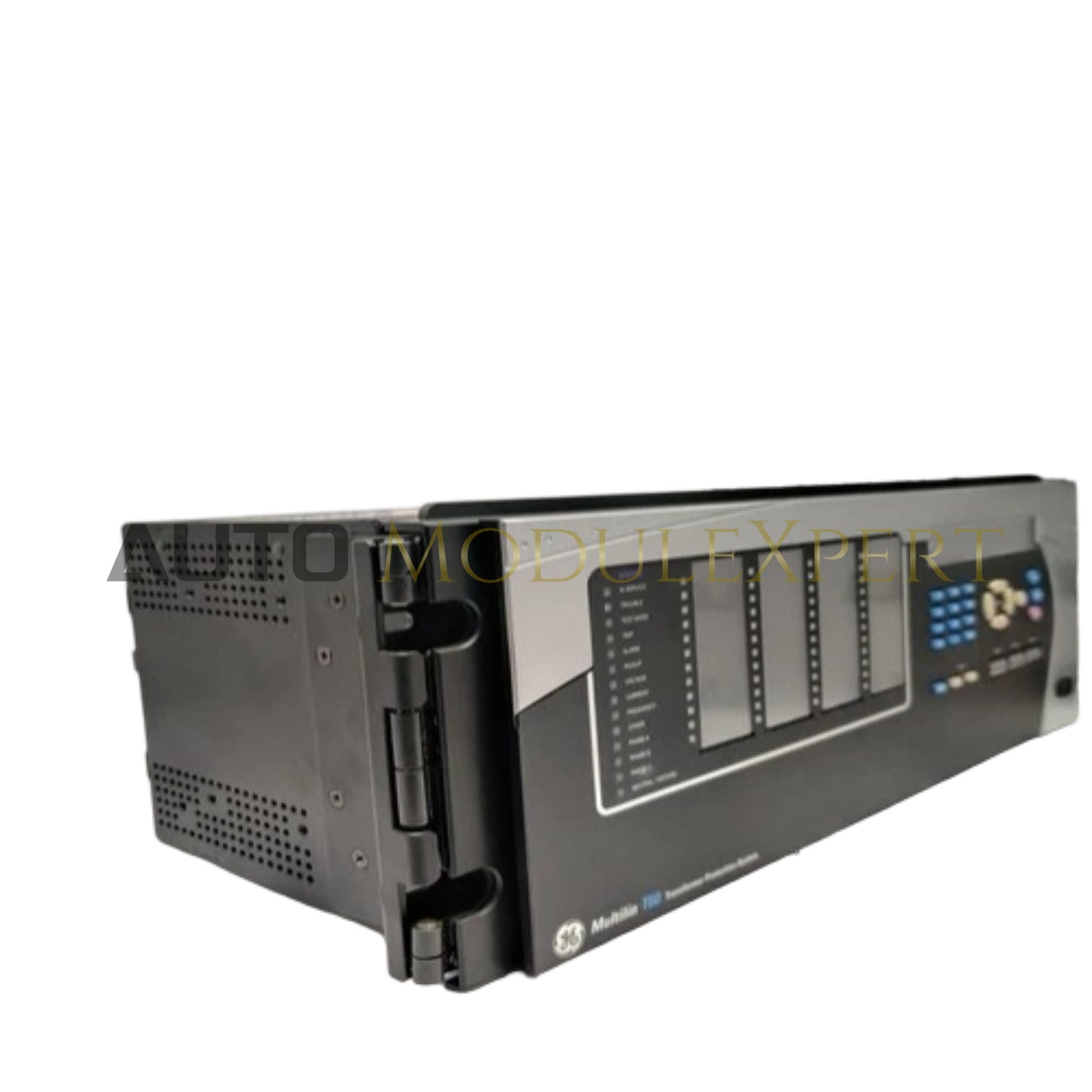

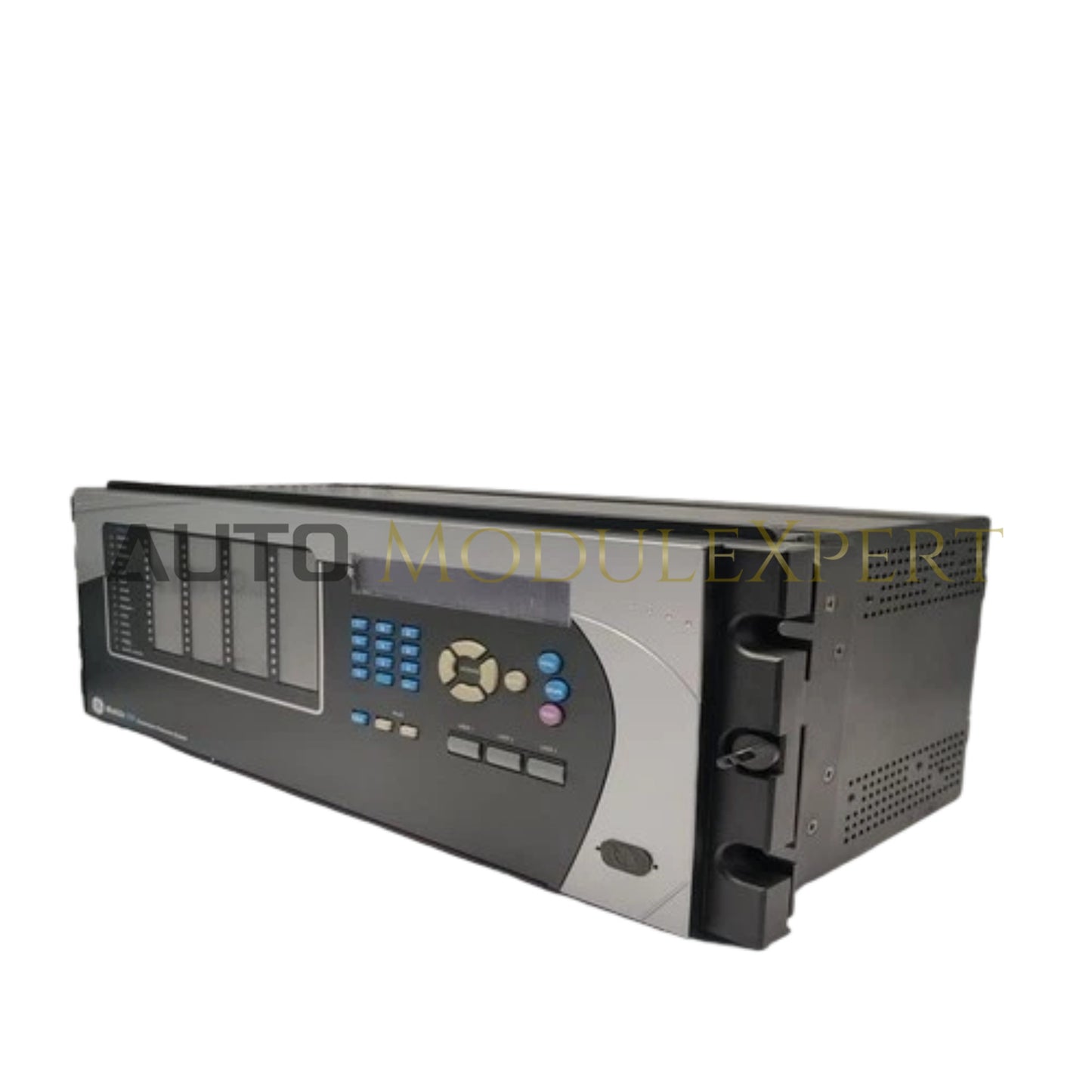

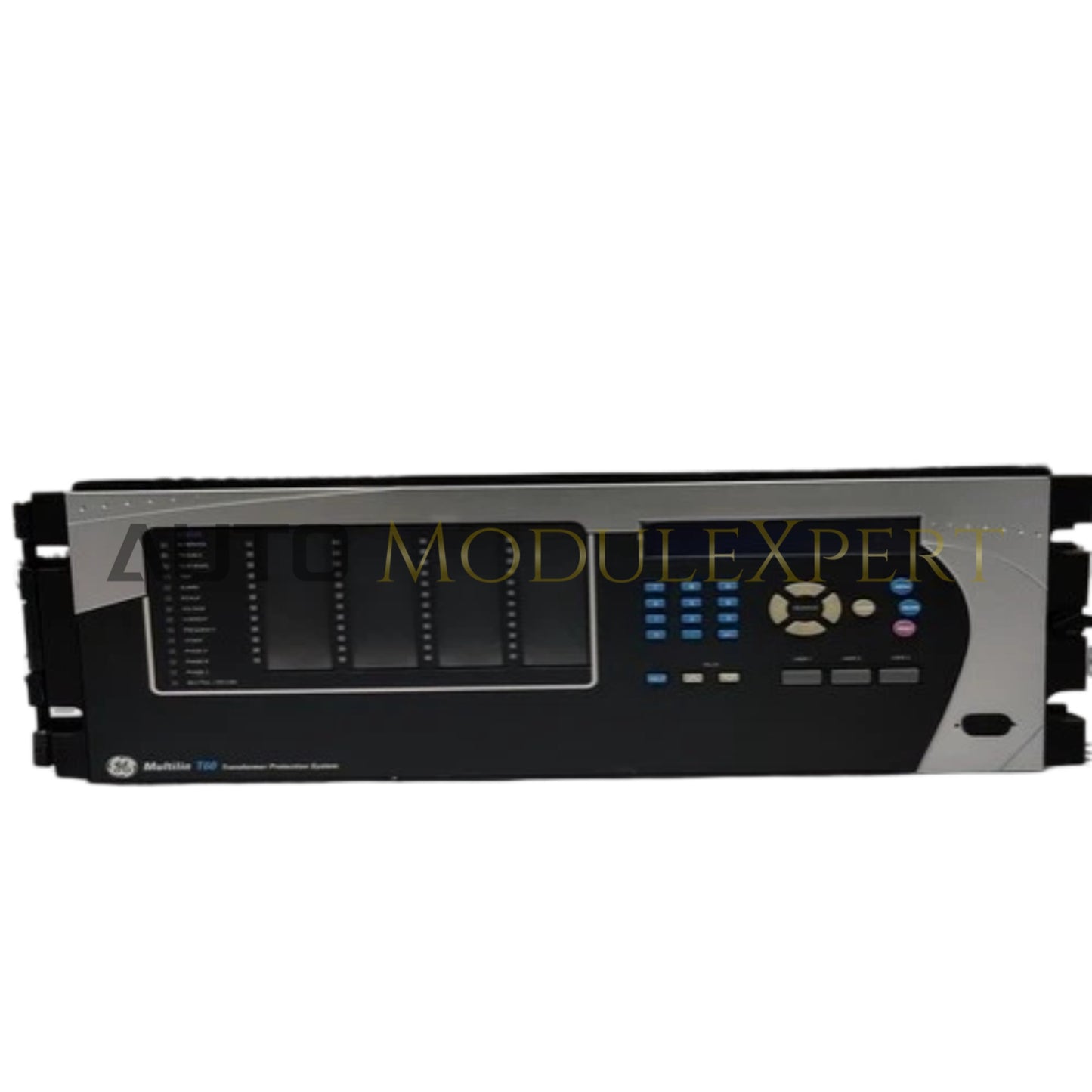

The GE Multilin T60-G01-HCH-F8H-H67-M8F-P6D-U6D-W6C, also cataloged as the T60 Transformer Protection Relay, operates as a dedicated hardware component for dual-slope differential protection and power transformer asset monitoring within substation automation platforms.
Suffix Breakdown & Model Matrix
| Code Position | Option Designator | Functional Description |
|---|---|---|
| Base Family | T60 | Multilin Universal Relay (UR) Transformer Protection Platform |
| Hardware Variant | G01 | CPU Module with 10Base-T Ethernet & RS485 Communication |
| Software Option | HCH | Advanced Protection Suite with Harmonics and Loss-of-Life Monitoring |
| Mount & Display | F8H | Full Color LCD Front Panel Display with Keypad (8U Chassis) |
| Power Supply | H67 | High-Voltage Universal AC/DC Power Supply Module |
| Digital I/O 1 | M8F | Digital I/O Module with 8 Form-A Outputs and Fast Response Contacts |
| CT/VT Module 1 | P6D | Standard Phase Current Transformer & Voltage Transformer Input Module |
| CT/VT Module 2 | U6D | Secondary Winding Phase CT & Neutral CT Processing Module |
| Auxiliary I/O | W6C | Transducer Analog I/O & Transducer Interface Hardware |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T60-G01-HCH-F8H-H67-M8F-P6D-U6D-W6C |
| Brand | GE Multilin |
| Origin | Canada / USA |
| Weight | 18.5 lbs (8.39 kg) |
| Dimensions | 8U standard 19-inch rack-mount chassis (355 x 483 x 272 mm) |
| Operating Temp | -40 to +70 deg C |
| Power Consumption | 20 W nominal (40 W maximum under full digital load) |
| Protection Logic | Dual-slope differential with breakpoint restraint, thermal overload, overexcitation |
| Measurements | IEEE C37.118 compliant Synchrophasor telemetry, event recording, fault oscillography |
| Humidity Limits | 5% to 95%, non-condensing |
| User Interface | Color LCD display with navigation keypad and front RS-232 serial interface |
Deterministic Backplane & Bus Synchronization
The T60 unit utilizes the Multilin Universal Relay modular backplane architecture to route sampled analog current and voltage data between high-speed signal processing channels. Backplane bus communication velocity architecture ensures microsecond-level synchronization across multiple CT/VT sampling modules to process dual-slope differential restraint calculations. Internal logic supports firmware flash compatibility to maintain uninterrupted execution of IEEE C37.118 synchrophasor streaming, fault oscillography recording, and loss-of-life thermal algorithms during severe grid fault transients.
Frequently Asked Questions
Q: What power supply thresholds are required for the H67 hardware option on the T60 relay?
A: The H67 option designates a high-voltage universal auxiliary power supply designed to accept operating inputs ranging from 110 to 250 VDC or 110 to 230 VAC without manual jumper selection.
Q: How does the T60 manage channel isolation across its CT/VT input cards?
A: Each current transformer and voltage transformer input channel is galvanically isolated from internal digital processing buses and adjacent modules, preventing ground loops and protecting signal conversion circuitry from high-voltage substation surges.
Field Installation Guidelines
- Rack Mounting: Mount the 8U chassis securely into a standard 19-inch instrument rack using all designated corner mounting holes. Ensure unblocked airflow around the top and bottom chassis heatsink channels.
- Grounding Connection: Connect the dedicated rear chassis grounding lug directly to the substation main ground grid using a short, low-impedance braided copper strap (minimum 10 AWG).
- CT Cable Terminal Shorting: Pass current transformer secondary connections through shorting terminal blocks immediately prior to entering the relay terminal block. Verify tight screw torque on all current loops before energizing.
- Ethernet and Serial Shielding: Route fiber optic or shielded twisted-pair communication cables in grounded metallic conduits isolated from high-voltage AC current lines to suppress high-frequency electromagnetic interference.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
