Product Description

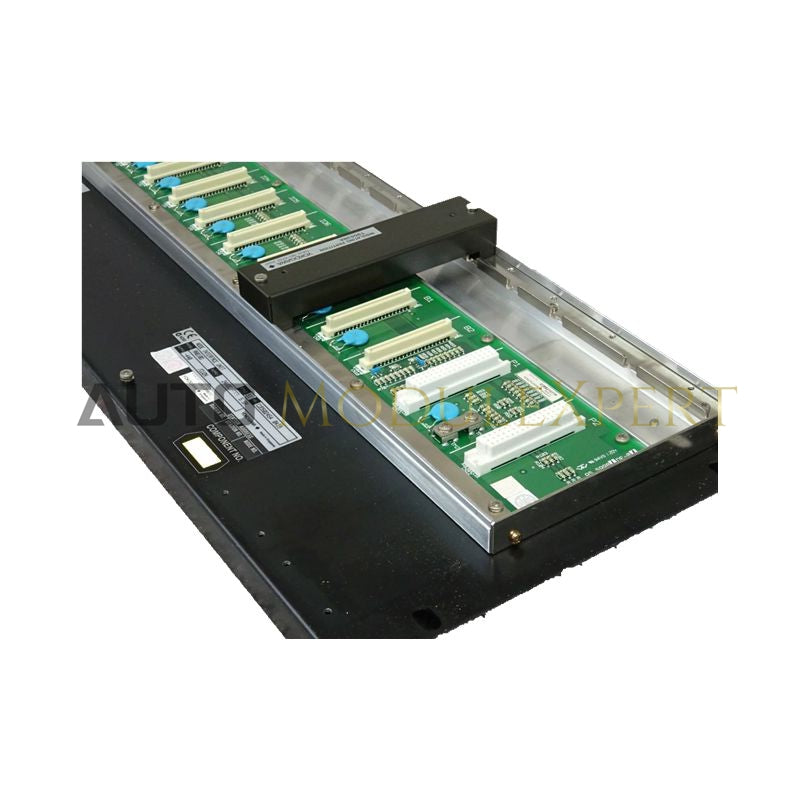

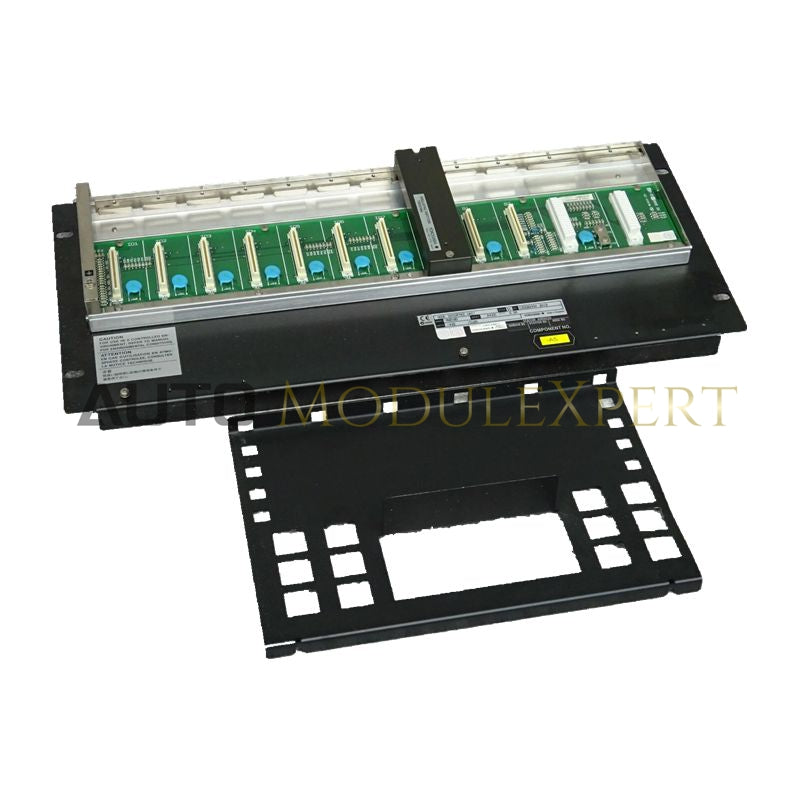

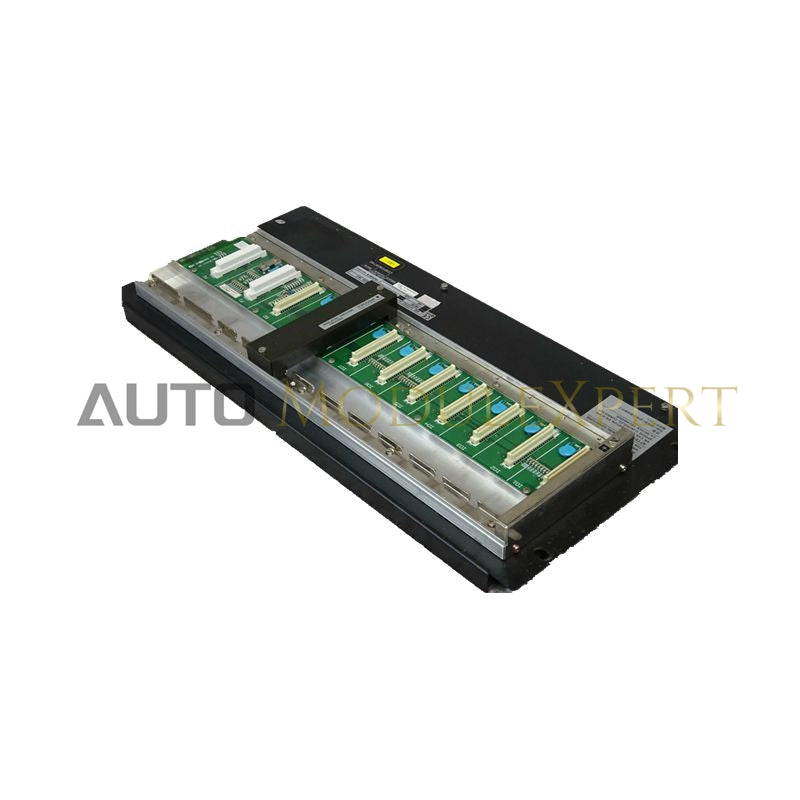

The ANB10D-410/CU2T is a critical infrastructure component within the Yokogawa CENTUM VP distributed control system (DCS). It functions as an ESB Bus Node Unit, providing a high-reliability interface for local and remote I/O modules while enabling deterministic communication with the Field Control Unit (FCU).
This model features a dual-redundant power supply system (100–120 V AC), ensuring uninterrupted operation even if one power source fails.
Equipped with the CU2T connector unit, this configuration includes integrated terminators (S9564FA), making it specifically designed for use as the final node in an ESB bus chain. The built-in termination prevents signal reflections and maintains communication integrity across the Extended Serial Backplane (ESB).
-
Primary Function: ESB bus expansion node
-
Power Supply: Dual-redundant (100–120 V AC)
-
Connector Type: CU2T (with integrated termination)
-
Bus Role: Terminal node (end-of-chain)
-
Termination: Integrated S9564FA terminators
-
Application Focus: Stable, deterministic control in DCS networks
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Identification | ANB10D-410/CU2T |
| Primary Function | Expansion node for dual-redundant ESB bus |
| Power Redundancy | Dual-redundant (active-active) |
| Input Voltage | 100–120 V AC |
| Frequency Tolerance | 50/60 Hz (±3 Hz) |
| Connector Configuration | CU2T (with integrated terminator) |
| Bus Termination | Includes 2 × S9564FA terminators |
| I/O Slot Density | Up to 8 I/O modules |
| Expansion Capacity | Up to 13 units per AFV30/AFV40 controller |
| Mounting Standard | 19-inch rack mount (EIA/JIS) |
| Environmental Rating | Basic type (non-explosion protected) |
| Net Weight | 10 kg |
Deployment Applications
The ANB10D-410/CU2T is typically used as the terminal node in an ESB bus segment within facilities operating on 110 V AC infrastructure.
It is widely applied in:
-
Oil refineries
-
Pharmaceutical batch plants
-
Utility and power control systems
By serving as the end-of-chain node, it ensures proper bus termination, stabilizing the communication loop and maintaining Yokogawa’s deterministic timing performance across the control system.
Common Technical Queries
Q: Can this node be placed in the middle of a bus chain?
A: It is possible, but not recommended. The CU2T connector includes built-in termination, which is intended for the last node. For intermediate nodes, the CU2N (non-terminated) version should be used to avoid impedance mismatch.
Q: Does the ANB10D-410/CU2T support 24 V DC field devices?
A: Yes. While the node itself operates on 100–120 V AC, it supports a wide range of CENTUM VP I/O modules, including 24 V DC analog and digital modules, through the backplane interface.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
