Technical Overview

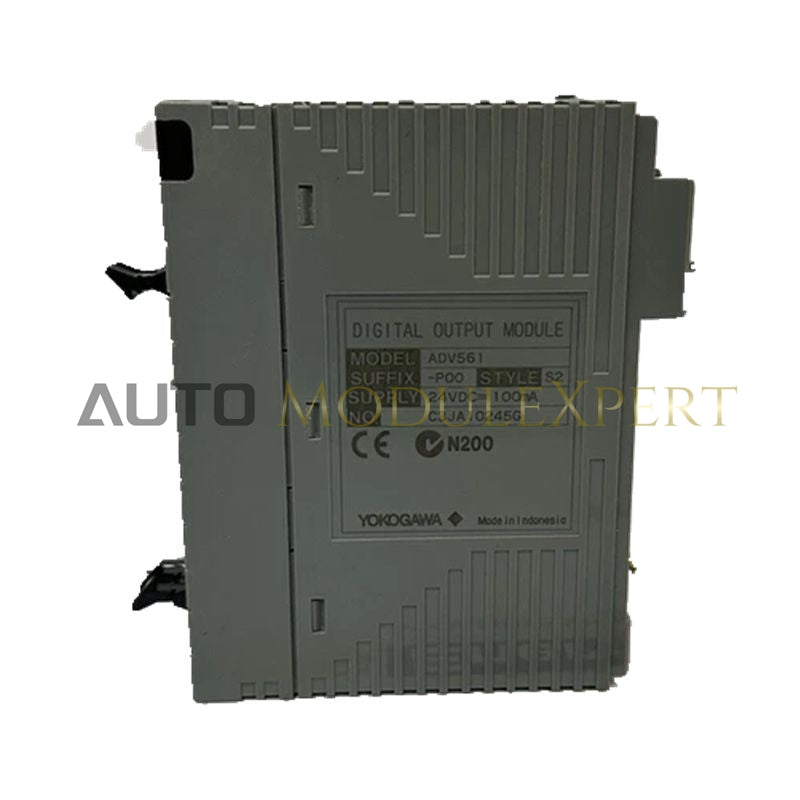

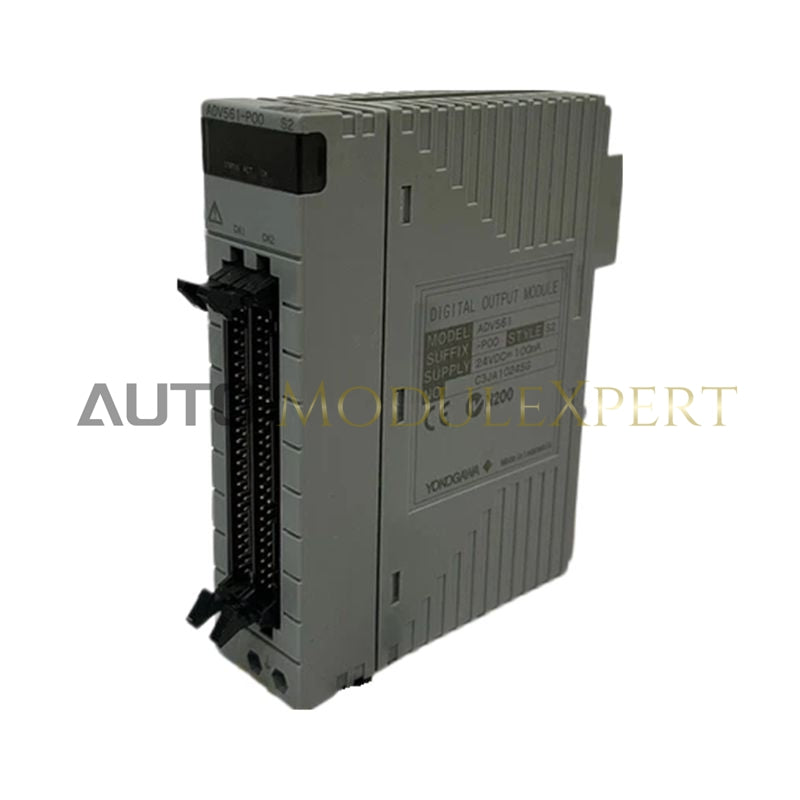

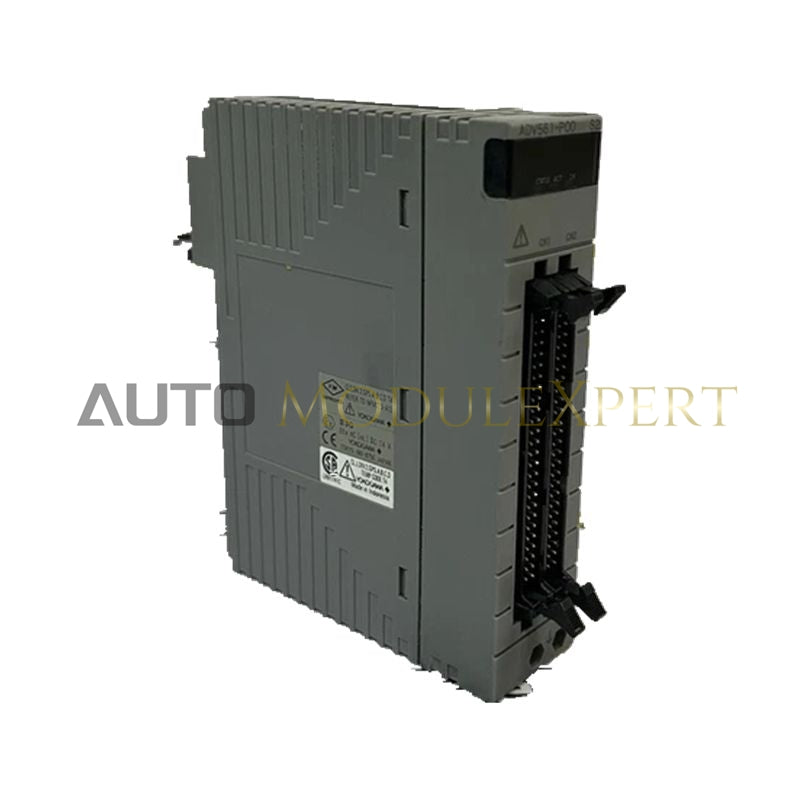

The ADV561-P00 S2 is a 32-channel high-speed digital output module for the Yokogawa FIO system, designed for applications requiring pulse-train outputs or ultra-fast switching beyond standard digital output modules.

• -P00: Standard functional variant

• S2 (Style 2): Hardware revision with improved thermal management and component longevity

• Logic Type: Transistor open-collector (NPN)

• Redundancy: Supports dual-redundant configuration and hot-swapping

This module is optimized for high-frequency pulse generation up to 1 MHz, making it suitable for high-speed actuation and precise dosing applications.

Technical Specifications

Key Features

• High-Speed Switching: Supports 1 MHz pulse-train output for precision dosing, motor drives, and rapid solenoid actuation.

• S2 Hardware Revision: Enhanced thermal management and component reliability in high-power applications.

• Dual-Redundancy & Hot-Swap: Ensures continuous operation in mission-critical systems.

• Transistor Logic: Long-life NPN output avoids mechanical wear typical of relays.

Strategic Applications

• Precision Chemical Dosing: Pulse-controlled metering pumps for accurate fluid injection.

• High-Speed Actuation: Controlling solenoids or valves in packaging, bottling, and material handling lines.

• Stepper Motor Control: Providing timing pulses to external motor drives.

• Safety & Redundant Control: Critical interlock outputs requiring guaranteed operation under fault conditions.

Engineering FAQ

Why is the S2 revision important?

• S2 improves thermal management and internal component reliability, critical for high-power, high-frequency operation.

Why are empty slots required during installation?

• The module generates significant heat when all 32 channels operate at high frequencies. Maintaining empty adjacent slots ensures proper convective cooling.

Can this module drive 24 V DC relays?

• Yes, if the relay’s inrush and continuous current do not exceed 100 mA. For larger loads or inductive devices, use flyback diodes or snubbers to protect the transistor outputs.
