Description

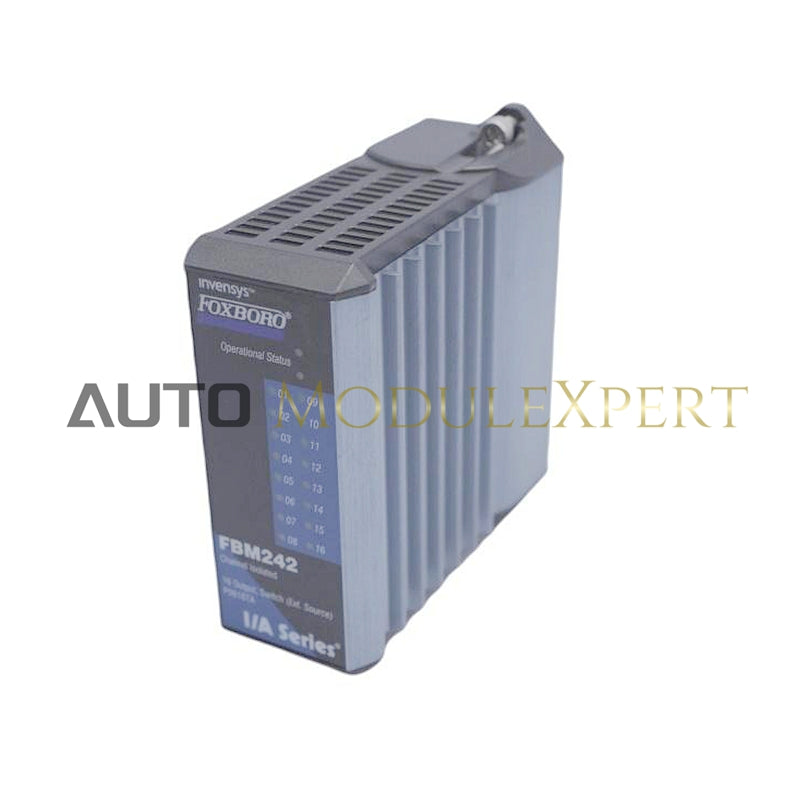

Foxboro FBM242 is a discrete output module with sixteen isolated channels for DC loads.
Output Channels
-
Number of channels: 16 isolated
-
Applied voltage: 15–60 V DC max
-
Load current: 2.25 A max per channel
-
In-rush current: 8 A for 20 ms per channel at 30°C, 6.4 A for 20 ms per channel at 70°C
-
On-state voltage drop: 0.2 V max at 2.25 A
-
Off-state leakage current: 0.1 mA max
-
Inductive loads: Protective diode or MOV may be required across load
Power Requirements
-
Input voltage (redundant): 24 V DC +5% / -10%
-
Consumption: 3 W max at 24 V DC
-
Heat dissipation: 6.5 W max at 24 V DC (all outputs at 1.5 A each)
Operating Conditions
-
Module temperature: -20 to +70°C (-4 to +158°F)
-
Termination assembly temperature: -20 to +70°C (-4 to +158°F)
-
Relative humidity: 5 to 95% non-condensing
-
Altitude: -300 to +3,000 m (-1,000 to +10,000 ft)
