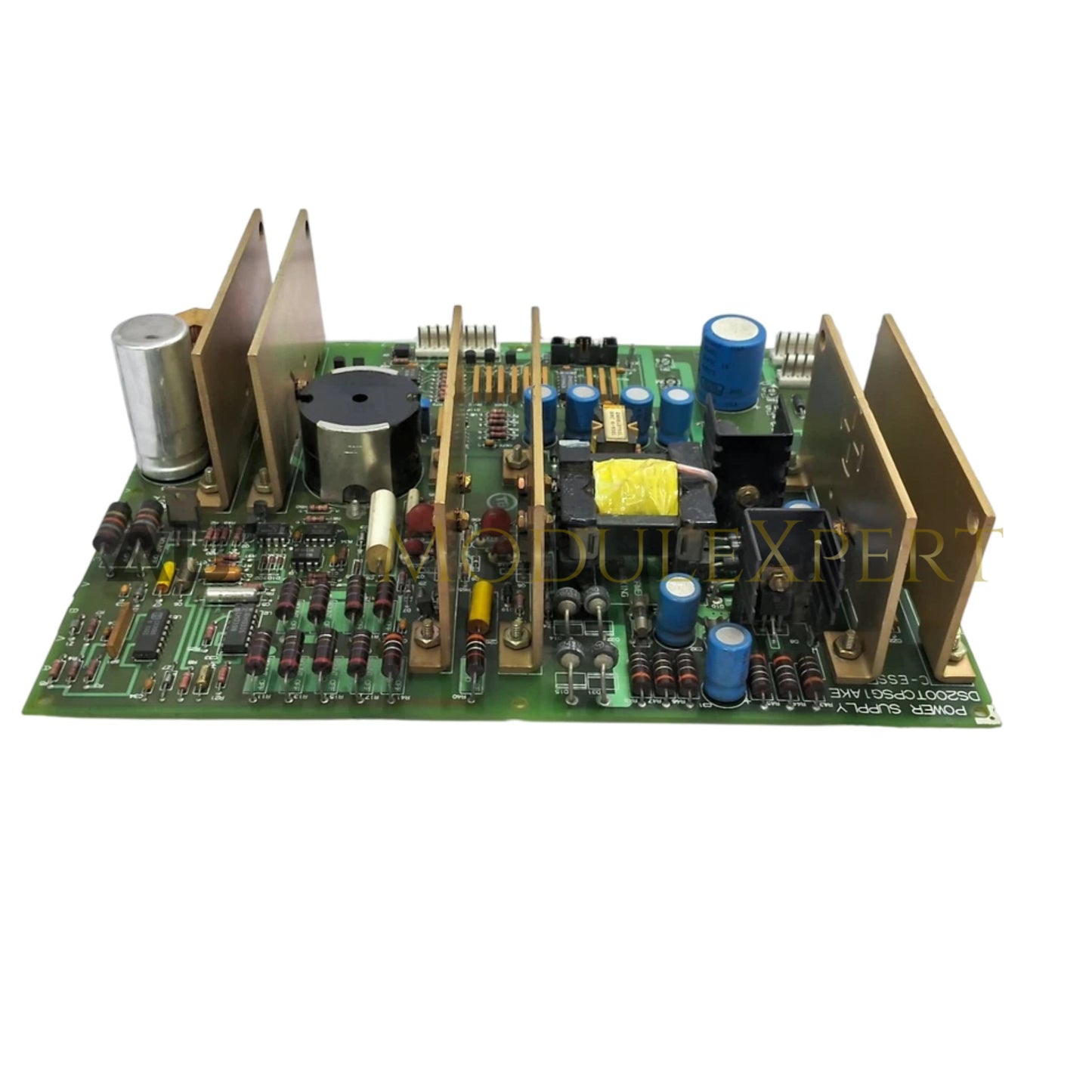

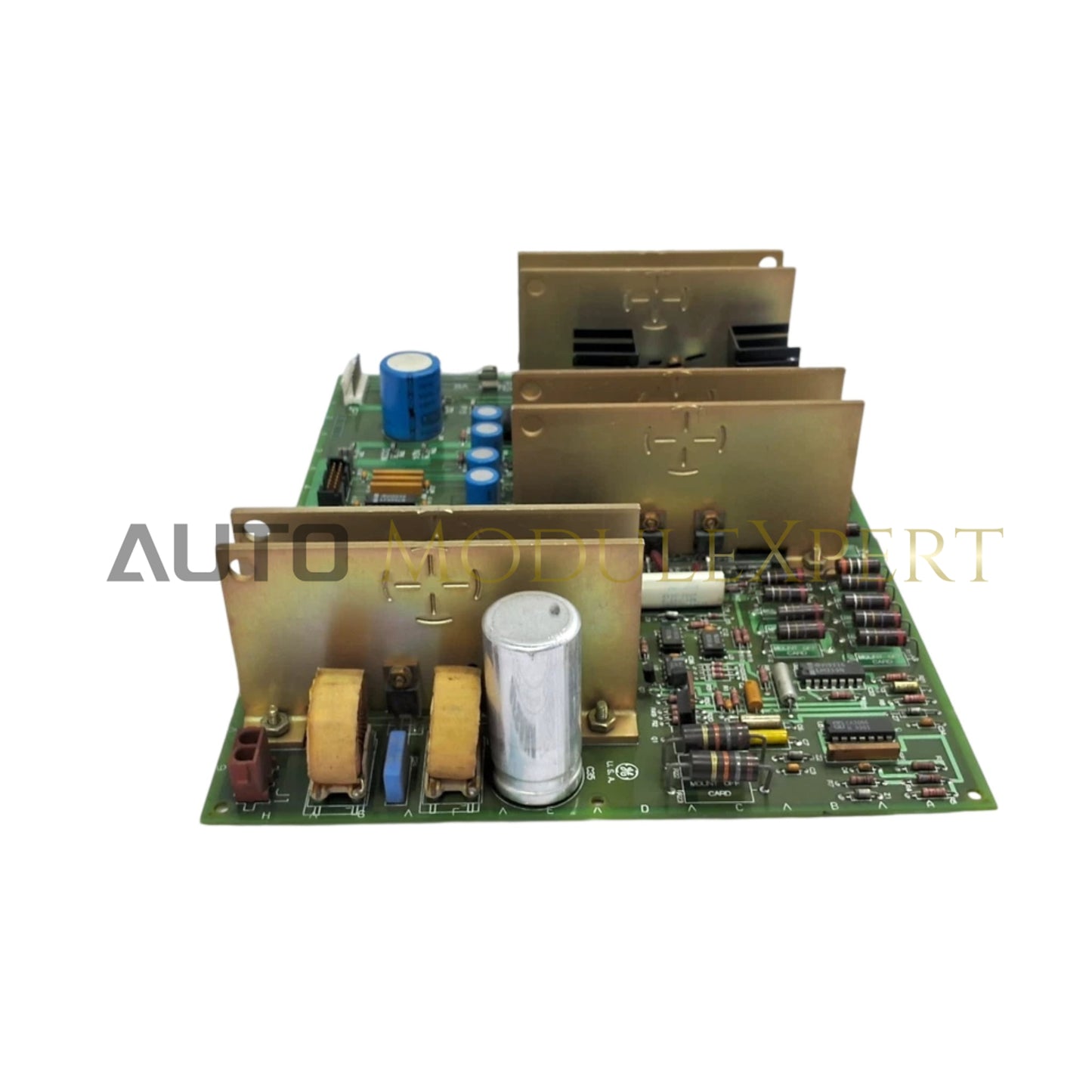

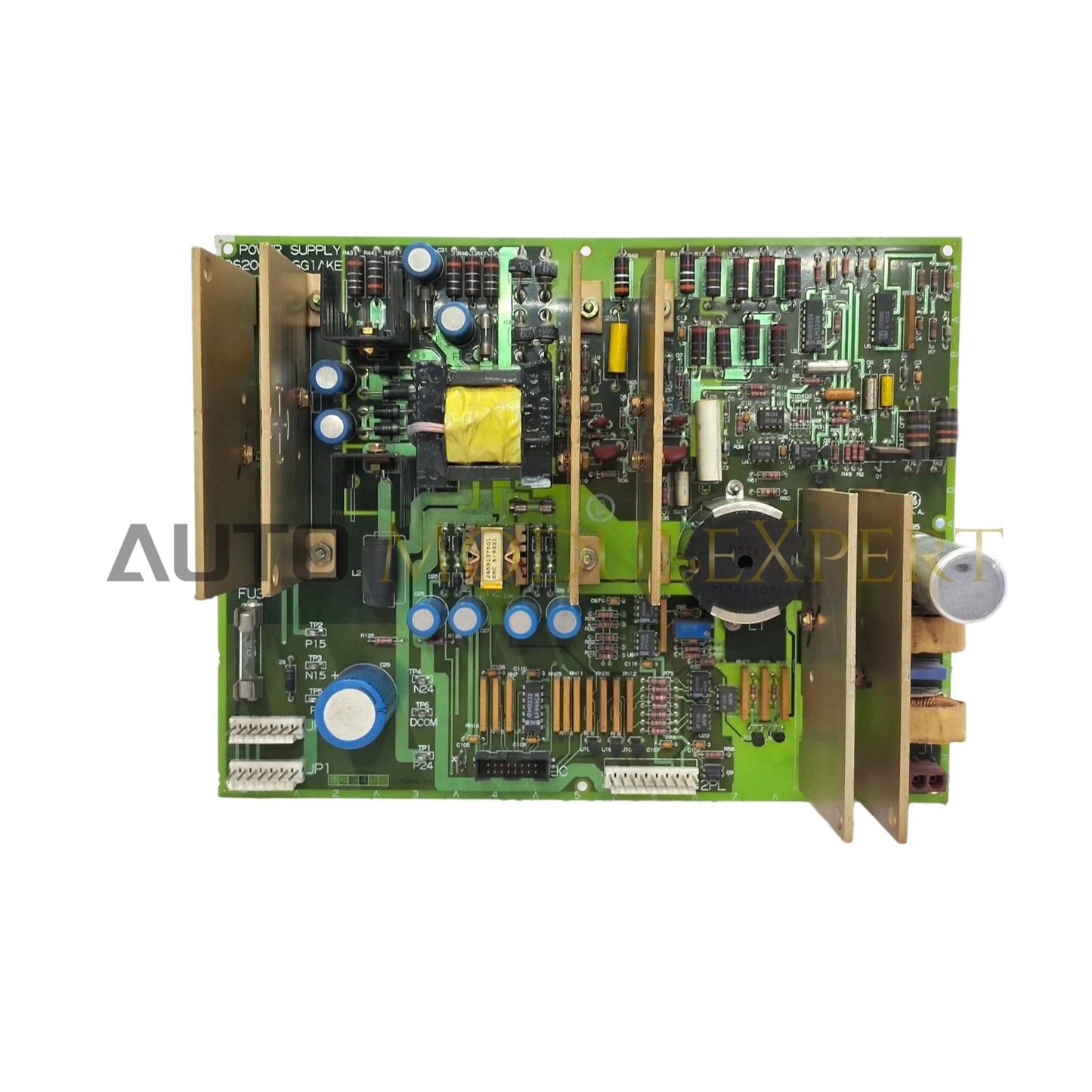

Configured for power regulation in Mark V turbine control systems, the GE DS200TCPSG1AKE (DS200TCPSG1AKE DC Input Power Supply Board) provides direct physical/electrical execution. This module functions as the primary power conversion interface, transforming raw DC input into the stabilized voltage rails required for control logic and I/O module operation.

Suffix Breakdown & Model Matrix

The DS200TCPSG1AKE belongs to the TCPS series power supply architecture. The "G1" designation signifies the initial generation of the DC-to-DC conversion layout, while the "AKE" suffix identifies the board revision and assembly iteration, which defines the specific thermal management profile and input terminal configuration for rack integration.

Hardware Specifications

Siemens / Allen-Bradley: I/O density scaling

The power supply board is engineered for integration within high-density control racks, ensuring that power distribution scales effectively with system I/O expansion. The board's internal regulation circuitry manages voltage stability across multiple load scenarios, maintaining the necessary power density to support the backplane bus communication velocity of connected I/O cards. Firmware flash compatibility is not applicable, as this module provides raw power regulation, but it serves as the foundation for system firmware execution by ensuring consistent voltage levels across the backplane.

Frequently Asked Questions (FAQ)

Q: What is the primary role of the DS200TCPSG1AKE in the Mark V system?

A: The board acts as a DC-to-DC converter, taking primary DC power from the turbine control cabinet and stepping it down or regulating it into the clean +5 VDC and other secondary voltage rails required by the system processor and I/O boards.

Q: Is this module hot-swappable during turbine operation?

A: No. The DS200TCPSG1AKE does not support hot-swapping. The control rack must be powered down and the DC supply disconnected before the board is removed to prevent electrical arcing or damage to the backplane connectors.

Field Installation Guidelines

1. Confirm that the input DC power source is isolated and verified at zero potential before starting the installation.
2. Utilize an ESD-safe mat and wrist strap to protect the power conversion components from electrostatic damage.
3. Align the module with the chassis guide rails and ensure the backplane connector is fully seated to guarantee secure power delivery to the bus.
4. Verify that the input terminals are connected to the correct polarity from the DC supply; incorrect polarity will cause immediate failure of the power conversion circuitry.
5. After installation, measure the secondary voltage rails at the backplane test points to confirm the board is outputting the correct levels before connecting sensitive CPU or I/O modules.
