Product Description

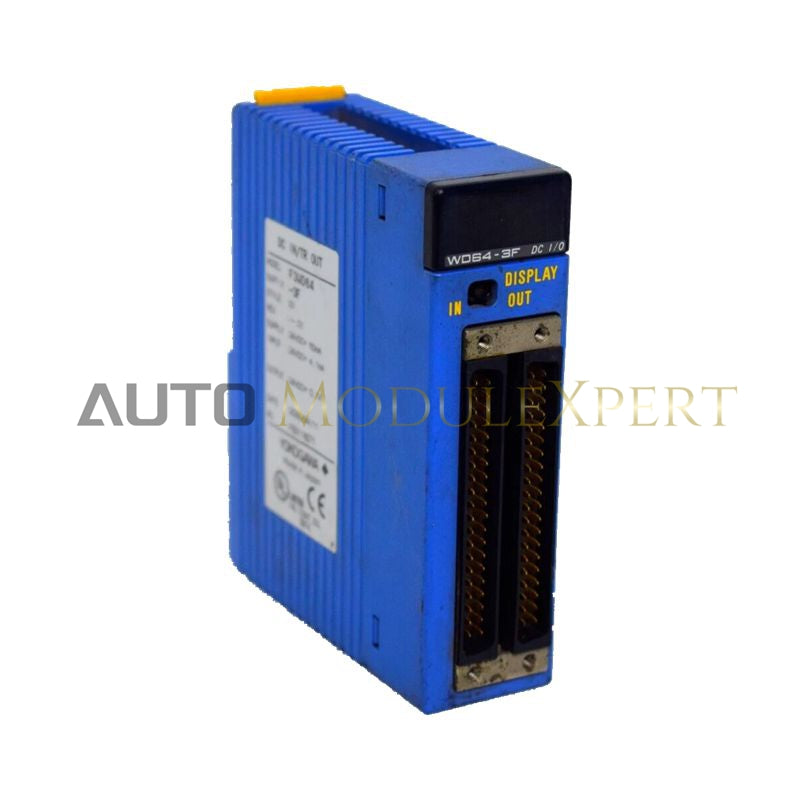

The F3WD64-3F is a sophisticated, high-density digital interface module engineered for the Yokogawa FA-M3 (Free and Multi-Abled) controller series. Designed to streamline hardware footprints in dense control cabinets, this single-slot module provides a combined 64-channel capacity, split evenly into 32 input and 32 output points. The F3WD64-3F is specifically tailored for high-speed discrete automation, where rapid response times and robust circuit protection are essential for maintaining system uptime.
Safety and durability are central to the F3WD64-3F's design. The module features integrated thermal protection and short-circuit safeguards on the output side, preventing localized electrical faults from damaging the internal circuitry or the PLC backplane. This makes it an ideal choice for managing solenoid valves, relays, and sensors in complex packaging, semiconductor, and material handling systems.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Module Function | Combined Digital Input and Output (I/O) |
| Total Channel Count | 64 Points (32 Inputs / 32 Outputs) |
| Input Specifications | 24 V DC (Standard current-sinking or sourcing depending on wiring) |
| Output Specifications | Transistor outputs with protection |
| Fault Protection | Built-in short-circuit protection and thermal shutdown |
| Signal Connection | High-density multi-pin connector (compatible with AKB series cables) |
| Status Indicators | LED diagnostics for I/O state and module health |
| Internal Power Consumption | Approximately 160 mA at 5 V DC (from backplane) |
| Response Time | ≤ 0.1 ms for ultra-fast signal processing |
| Operating Temperature | 0°C to 55°C |
| Physical Dimensions | 30 mm (W) x 100 mm (H) x 83 mm (D) |
| Weight | 0.12 kg |
Functional Advantages and Integration
By consolidating 64 points into a single slot, the F3WD64-3F allows for significant rack space savings compared to using separate 16 or 32-point modules. It is frequently paired with the AKB series high-density cables to connect directly to external terminal blocks or relay boards. The module’s high-speed response capability ensures it can keep pace with the fastest FA-M3V series CPUs, making it suitable for synchronized motion control and high-frequency counting tasks.
Technical FAQ
-
Question: What type of connector is required for the F3WD64-3F?
Answer: This module utilizes a 40-pin or 64-pin high-density connector (standard for the WD series). It is recommended to use Yokogawa’s dedicated cable assemblies to ensure secure and noise-free connections. -
Question: Can the F3WD64-3F handle inductive loads?
Answer: Yes, the transistor outputs are designed to drive inductive loads such as small solenoids; however, it is standard engineering practice to use external diodes or surge suppressors to extend the module's lifespan in high-cycle applications.
