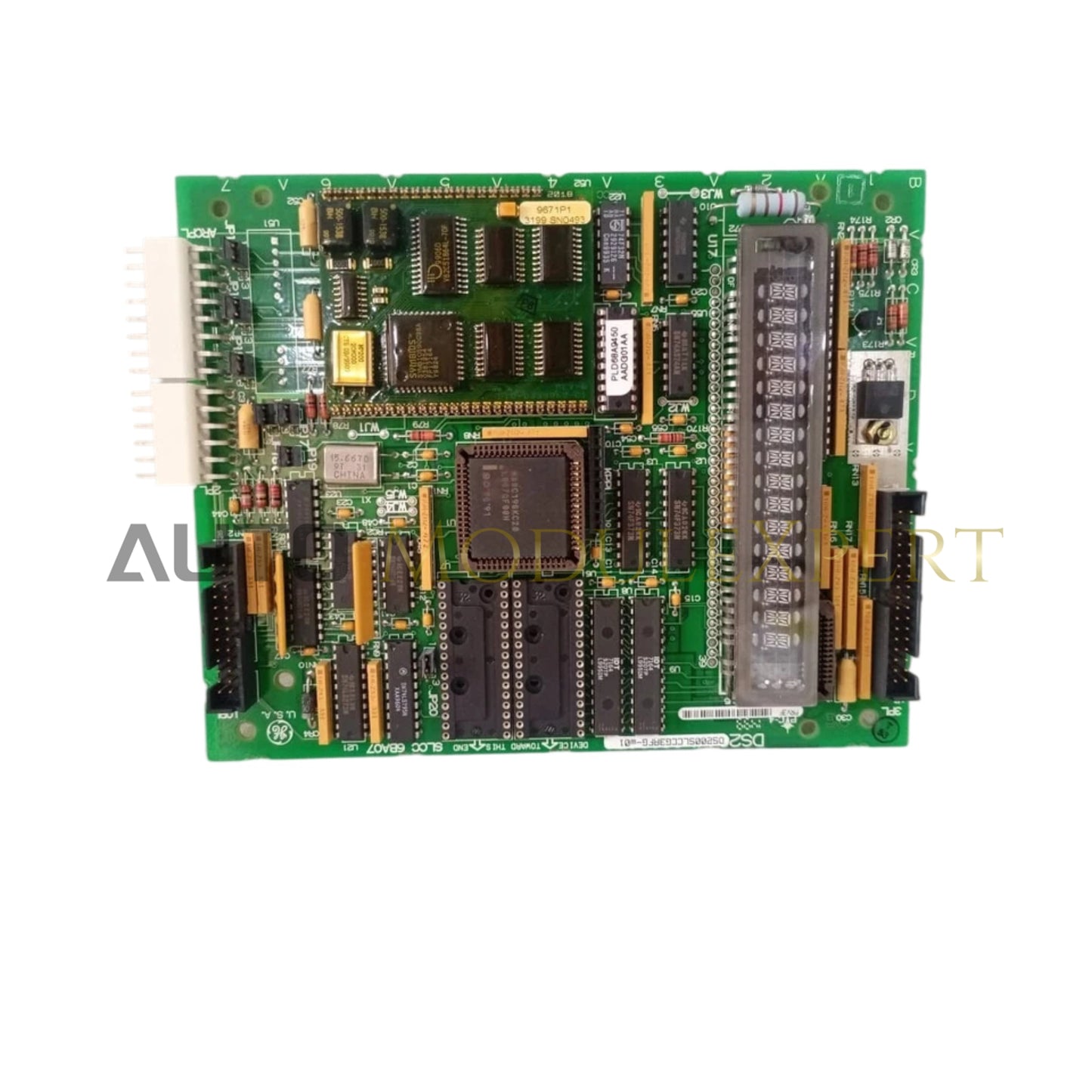

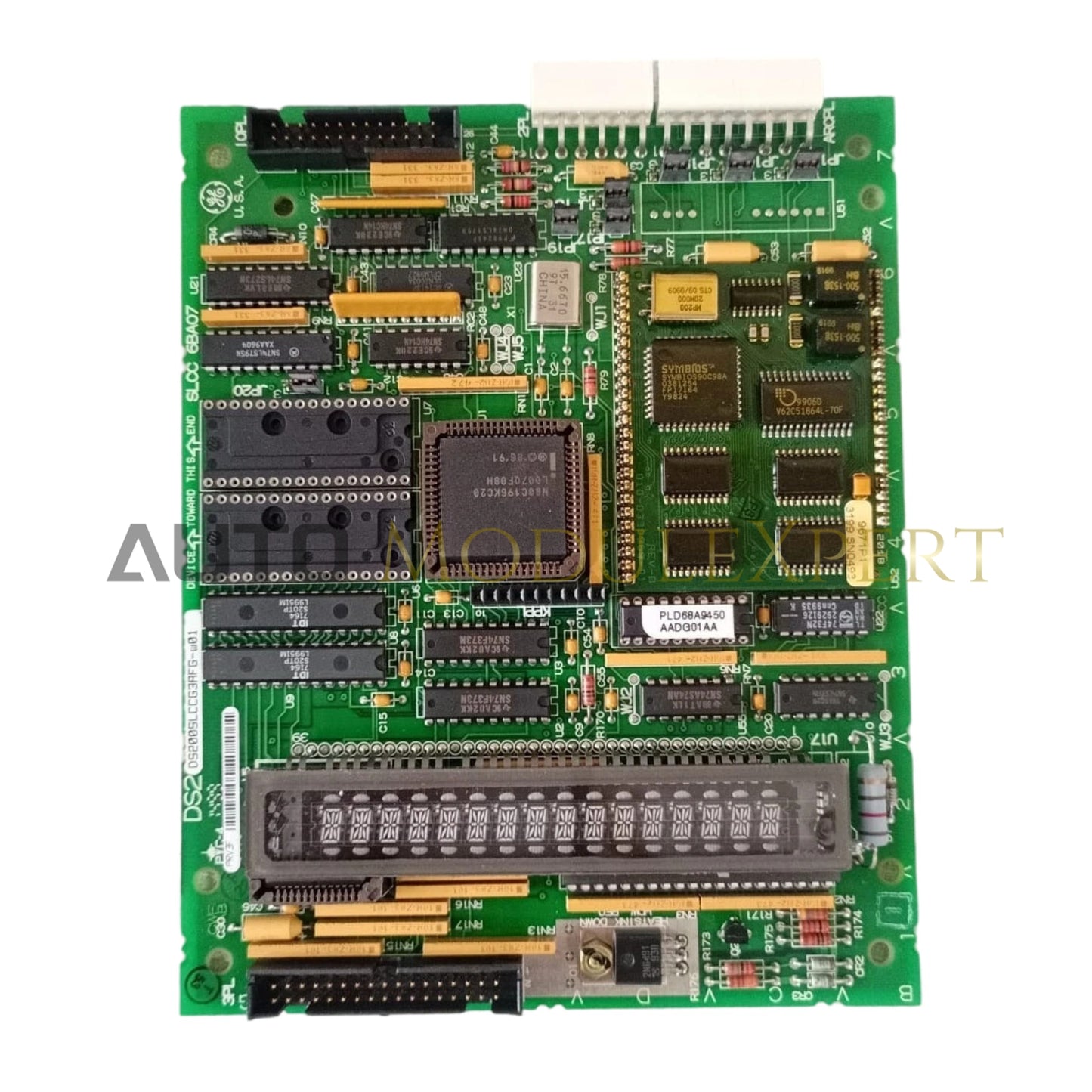

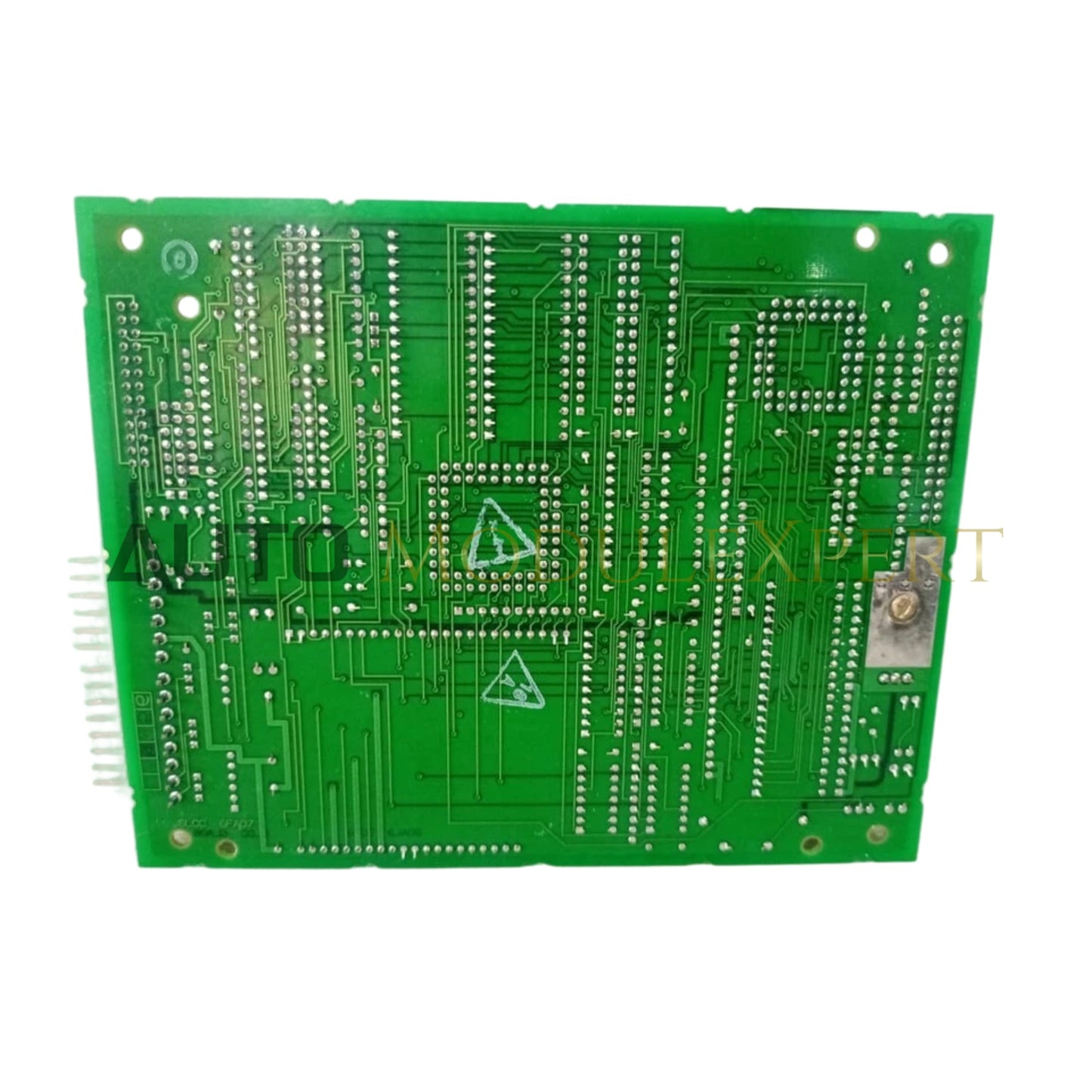

Configured for high-speed network integration in Mark V and EX2000 control platforms, the GE DS200SLCCG3A (DS200SLCCG3A LAN Communication Card) provides direct physical/electrical execution. This module serves as the primary LAN control processor (LCP) interface, managing data traffic between the controller and auxiliary system components.
Suffix Breakdown & Model Matrix
The DS200SLCCG3A is part of the SLCC board series. The "G3" designation indicates the hardware generation, while the "A" suffix identifies the primary iteration of the board layout, specifically optimized for integration with the NTB/3TB, SDCC, TCCB, and DCFB interface modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200SLCCG3A |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.7kg |
| Dimensions | Standard Mark V/EX2000 board size |
| Operating Temp | Industrial Standard |
| Power Consumption | Backplane Dependent |
| Processor | LAN control processor (U1) |
| Memory | EPROMs (U6, U7); RAM (U8, U9) |
| Interfaces | 2PL, 3PL, KPPL |
Backplane bus communication velocity and firmware compatibility
The module utilizes a dedicated LAN control processor to manage communication streams, maintaining backplane bus communication velocity across the 3PL and 2PL interface links. Firmware flash compatibility is managed via replaceable EPROMs (U6, U7), ensuring that the LCP software remains consistent with system requirements. Data exchange between the LCP and the driver controller processor on the SDCC is facilitated through dual-ported RAM (U5), providing a deterministic buffer for real-time control synchronization.
Frequently Asked Questions (FAQ)
Q: How is the alphanumeric display diagnostic data accessed?
A: The display controller (U-18) on the SLCC supports a 16-position alphanumeric display. Diagnostic testing and fault code readout are managed via the programmer module, which mounts directly onto the SLCC via the KPPL connector.
Q: Is the LCP software field-upgradeable?
A: Yes, the LCP software is stored in physical EPROMs (U6, U7). Upgrading firmware requires the physical extraction of the existing EPROM chips and the installation of the updated memory components, followed by system configuration validation.
Field Installation Guidelines
- Ensure the control cabinet is de-energized and verified at zero energy before attempting to remove or install the module.
- Utilize an ESD-protective wrist strap connected to a reliable earth ground to prevent damage to the microprocessor and memory components.
- Align the module with the designated rack slots and ensure the 2PL and 3PL connectors are fully seated to maintain communication link integrity.
- If installing a programmer module, ensure it is firmly attached to the KPPL connector to allow for proper software adjustment and diagnostic testing.
- Inspect all interconnecting cables for proper strain relief, ensuring that shielding is intact to prevent signal noise on the LAN data paths.
