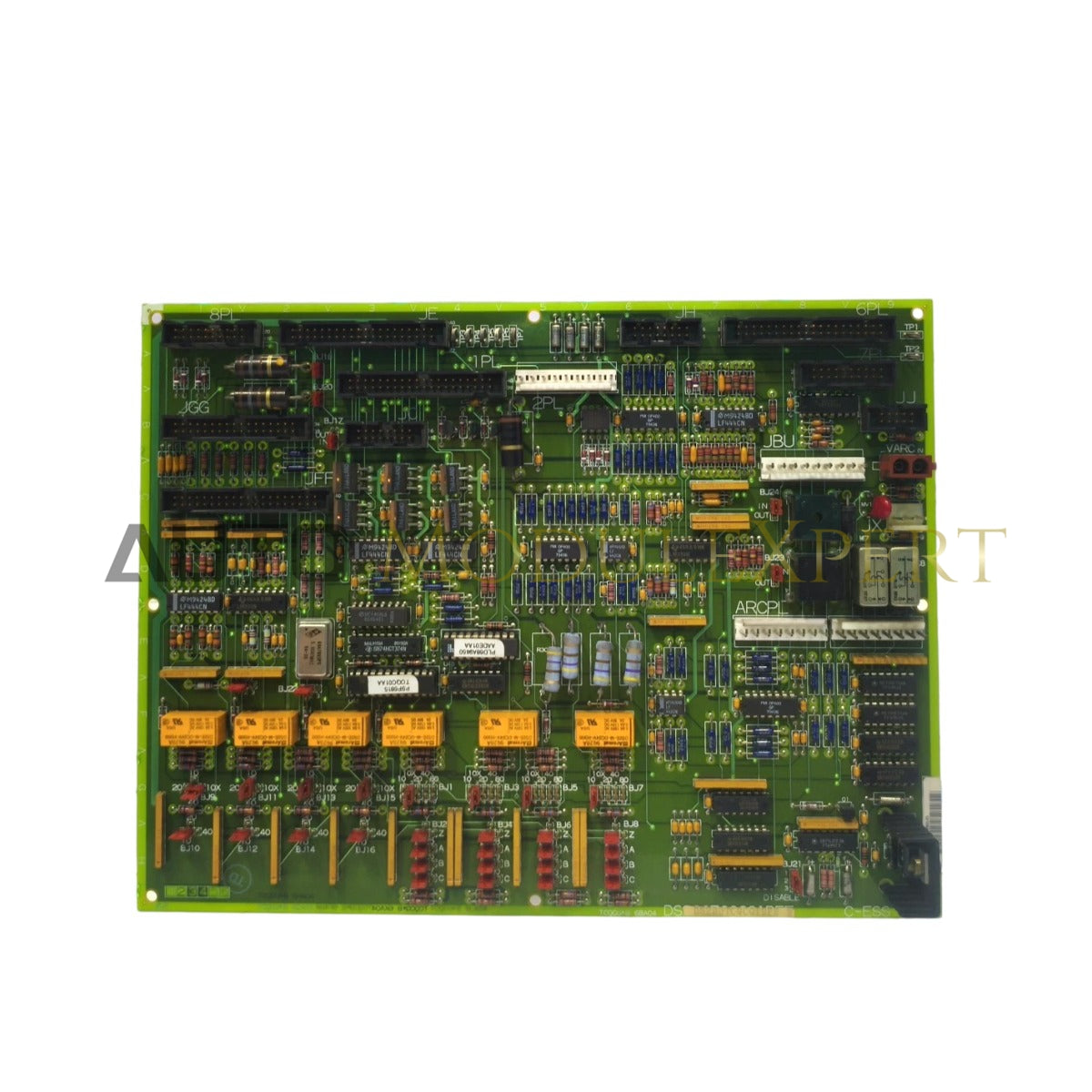

Configured for analog signal acquisition and signal conditioning in Mark V Speedtronic turbine control platforms, the GE DS200TCQCG1BFE (DS200TCQCG1BFE Turbine Control Board) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The DS200TCQCG1BFE is a specific hardware revision within the TCQC control board series. This module is a unified assembly designed for high-precision analog monitoring; there are no field-configurable sub-variants or alternative assembly matrices associated with this part number.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The GE DS200TCQCG1BFE integrates into the Mark V backplane to facilitate deterministic data acquisition from critical field sensors. The module processes analog input signals—including pressure, flow, and temperature variables—and digitizes them for real-time consumption by the turbine control processor. Firmware flash compatibility is strictly mapped to the Mark V system revision; the board utilizes standardized signal conversion logic that requires consistent backplane bus communication velocity to prevent scan synchronization errors. Any deviation in bus timing can induce signal drift, impacting the reliability of the turbine control loop.

Frequently Asked Questions

Q: Does this module support hot-swapping while the control rack is energized?

A: No. The board must be fully de-energized by isolating the control rack power supply before extraction to prevent electrical arcing on the backplane connector pins.

Q: Is this board field-programmable for different input signal types?

A: Hardware-level signal conditioning is fixed for the TCQC architecture; however, scaling and range parameters are managed through the Mark V system configuration files during processor initialization.

Field Installation Guidelines

• Mounting: Insert the board into the designated Mark V rack slot. Engage the card extraction levers fully to ensure the backplane pins are seated and the ground bond is established with the chassis.
• Wiring: Utilize shielded instrumentation cabling for all analog input signals. Route signal wires away from high-current AC lines or motor power cables to mitigate electromagnetic interference.
• Grounding: Terminate cable shields at the designated cabinet ground stud to maintain signal integrity and ensure low-impedance protection against transient voltages.
• Verification: After installation, verify the status of the signal loops using the system diagnostic interface to ensure the analog inputs are correctly mapped and reporting values within expected turbine operating ranges.
