Product Overview

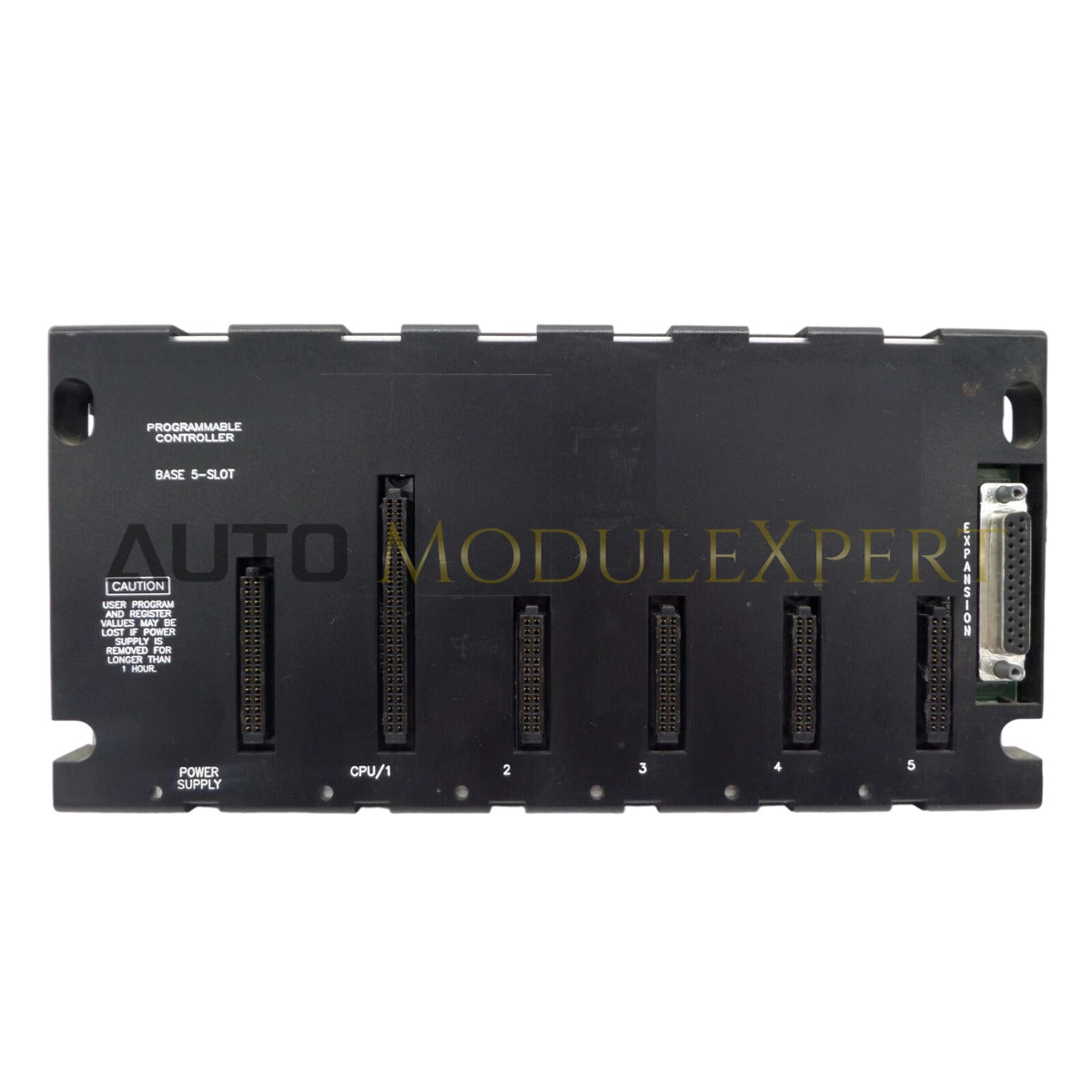

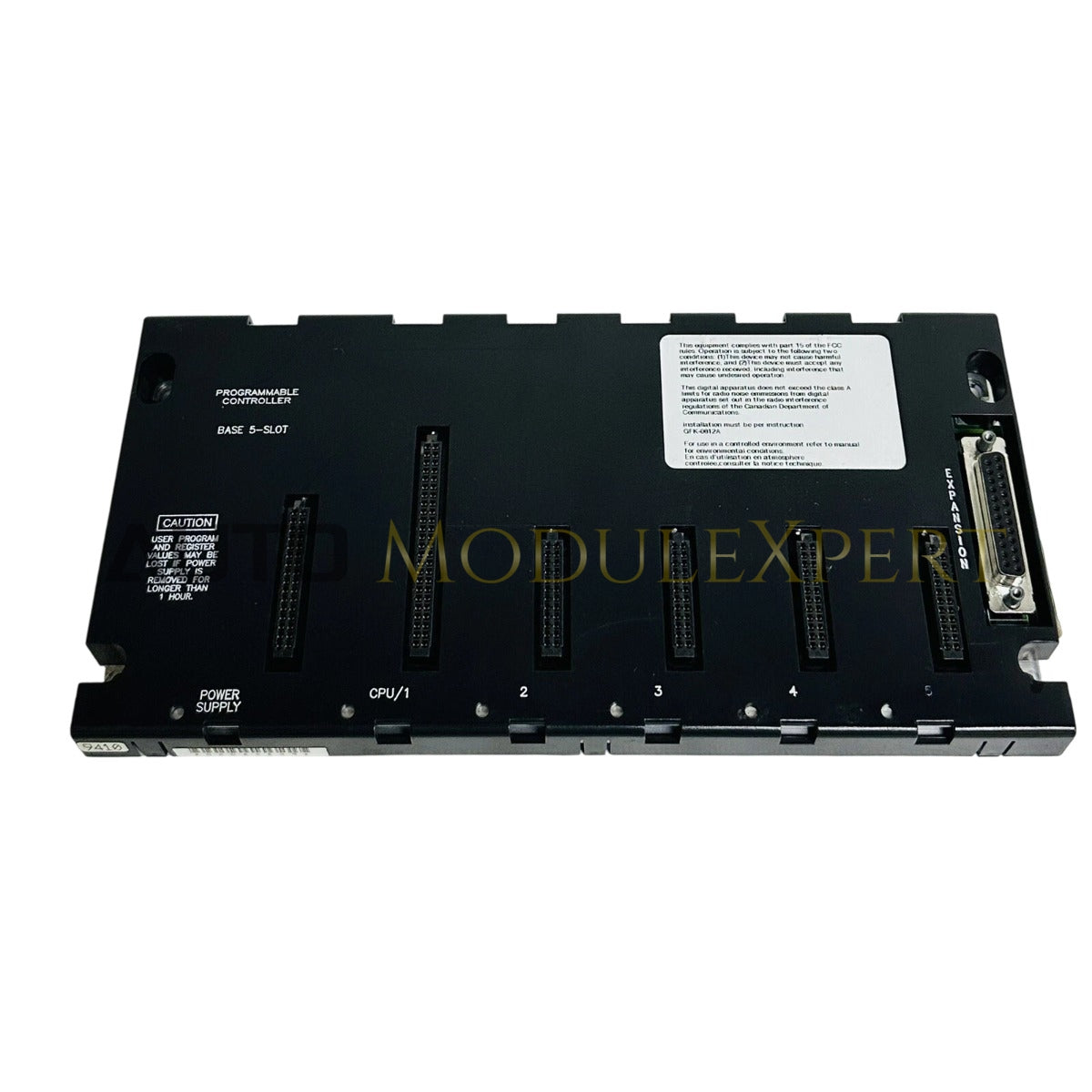

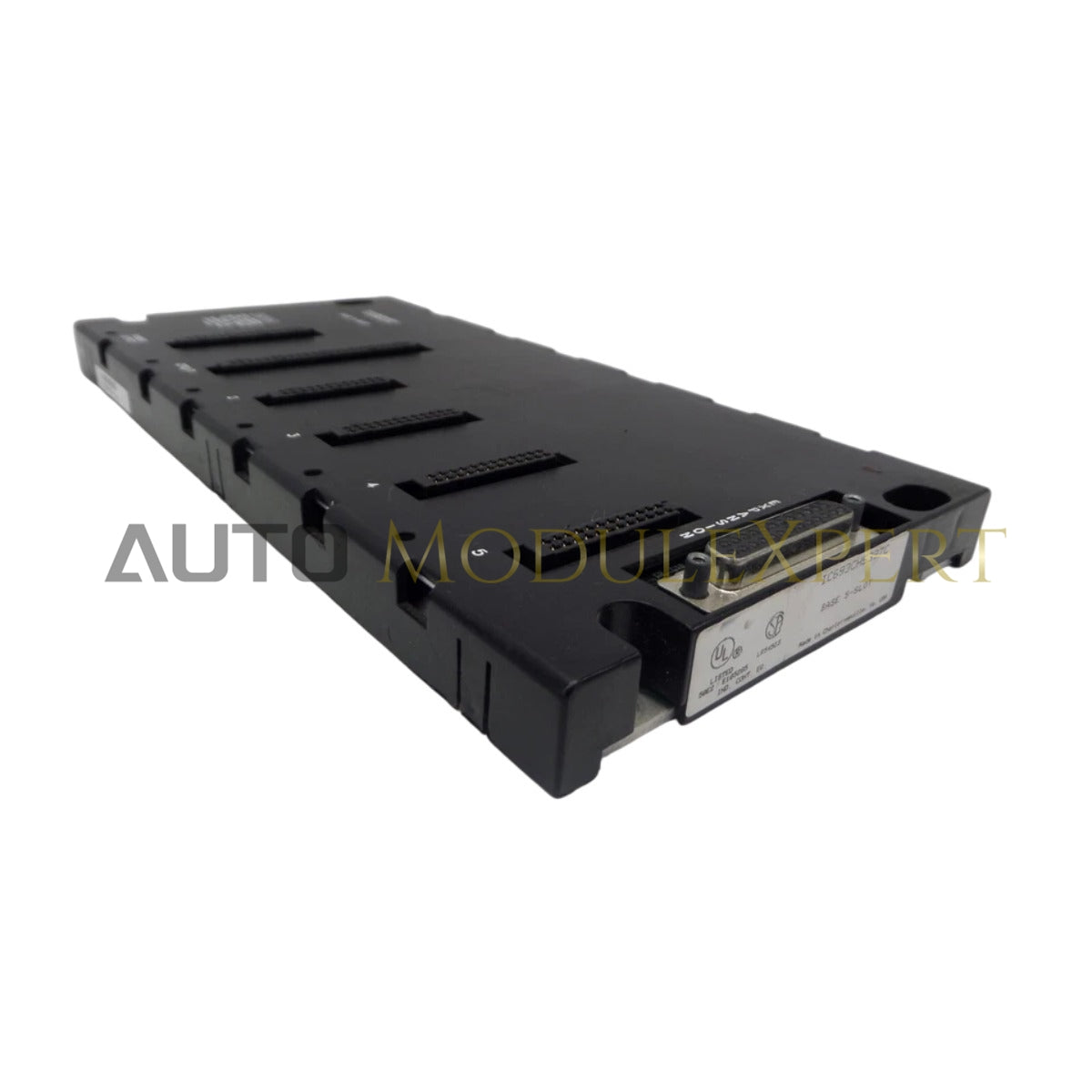

The IC693CHS397C is a CPU baseplate (chassis) for the GE Fanuc Series 90-30 PLC system. It provides the physical and electrical backbone for the rack, including a dedicated power supply slot, CPU slot, and five I/O slots. It ensures stable backplane communication between modules. Supplied as 100% brand new, original condition for perfect fit and reliable system grounding.
Technical Specifications
| Specification | Details |
|---|---|
| Baseplate Type | CPU Baseplate (Local Rack) |
| Total Slots | 5 I/O slots + power supply + CPU slot |
| Module Compatibility | Series 90-30 I/O and option modules |
| Expansion Support | Not supported (local rack only) |
| Mounting | Panel mount (4 holes) |
| Dimensions | 250 mm × 175 mm × 60 mm |
| Weight | 1.2 kg |
| Power Handling | Supported via installed power supply module |
Engineering Advantages
Rigid Backplane Structure
Reinforced PCB backplane ensures stable signal transmission and resistance to vibration in industrial environments.
Efficient Thermal Design
Open-frame layout improves airflow, helping reduce heat buildup and extend module lifespan.
Precise Module Fit
High-tolerance guide rails ensure correct alignment and reduce risk of connector damage.
Compact Control Solution
5-slot design fits smaller control cabinets while still supporting full PLC functionality.
FAQs
Can it connect to an expansion rack?
No, it is a local-only baseplate without expansion capability.
Does it require external power?
No, it is powered through the installed power supply module.
How are modules secured?
Modules are locked using front panel screws and backplane guide rails for vibration resistance.
