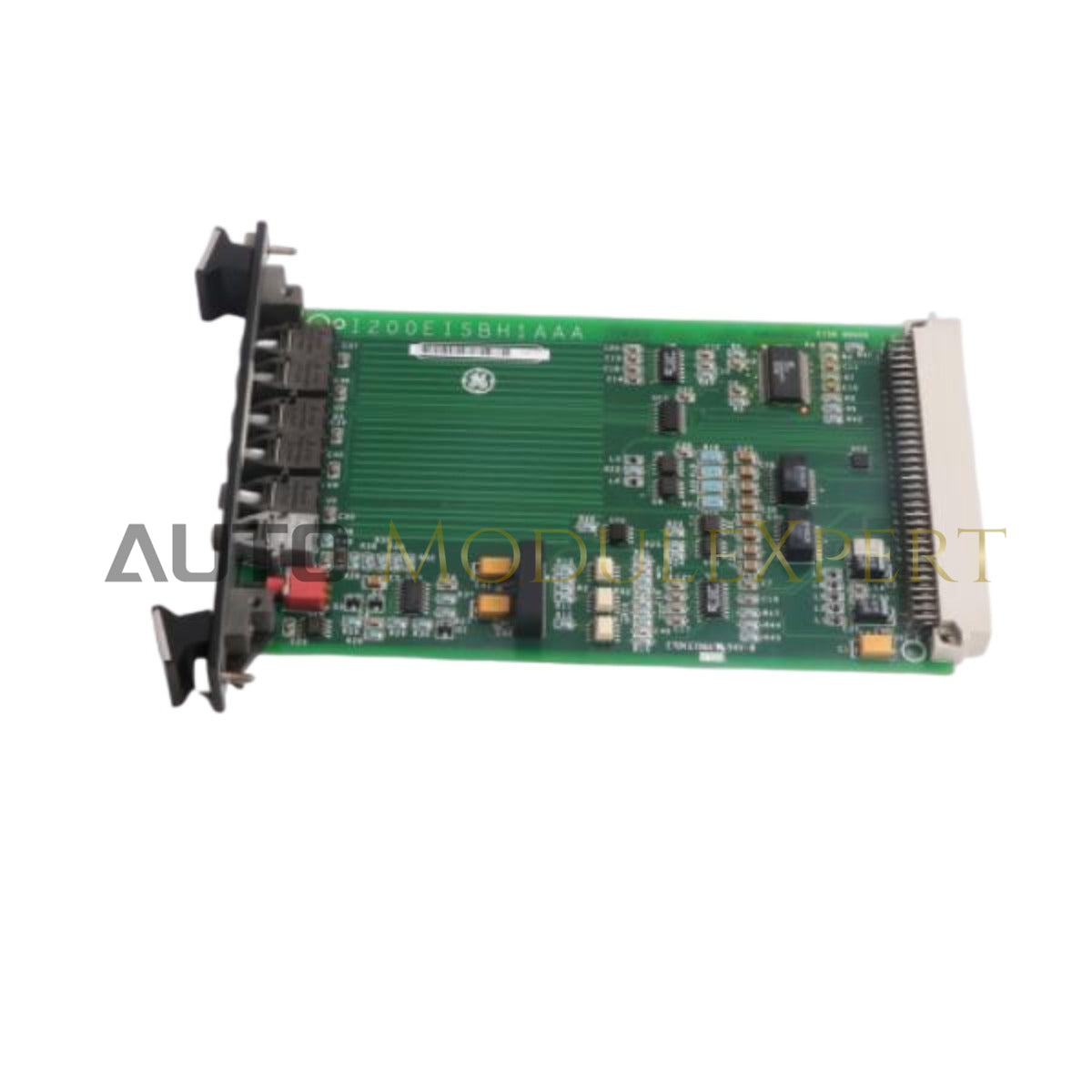

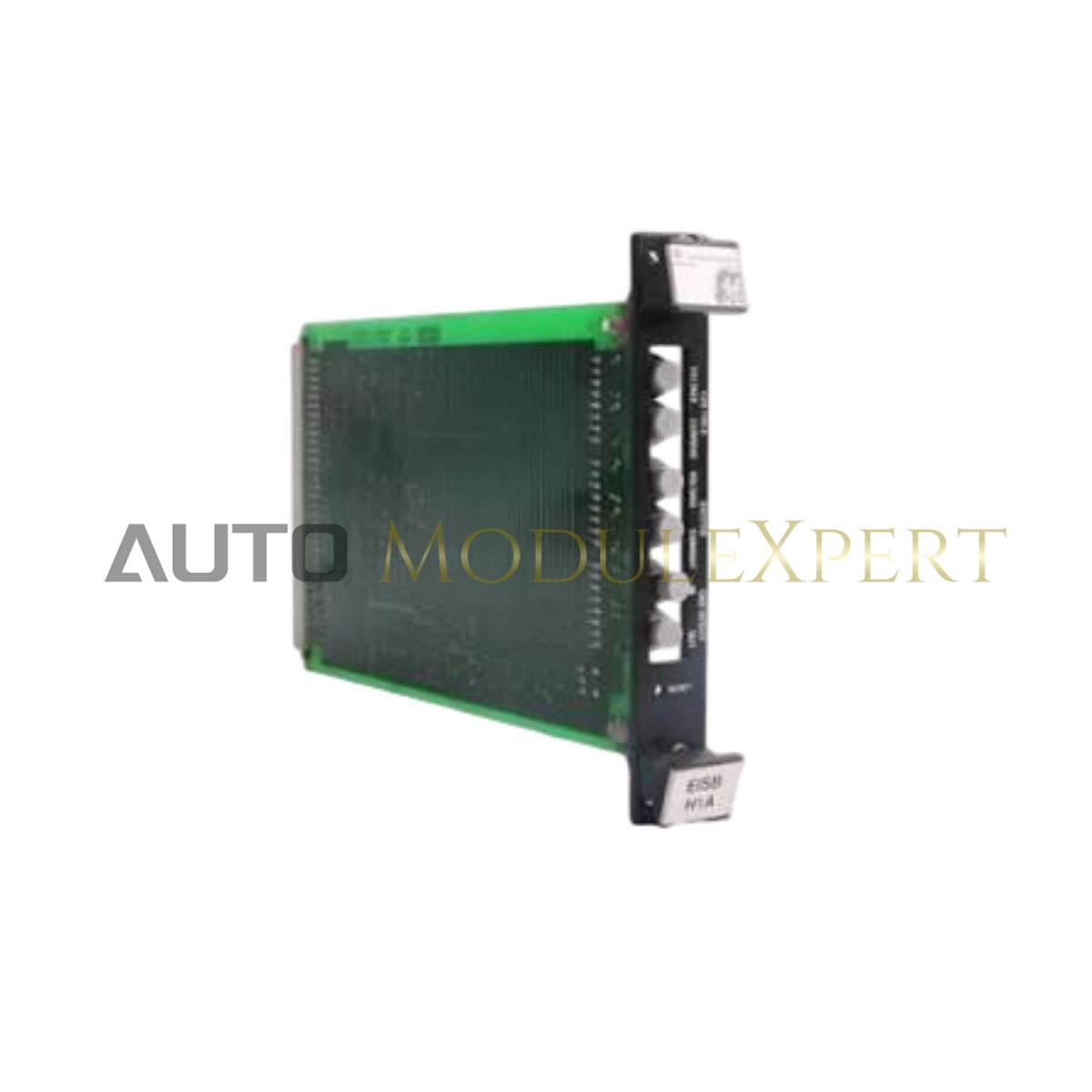

The GE IS200EISBH1A, also cataloged as the EISB Exciter ISBus Board, operates as a dedicated hardware component for high-speed data transmission and synchronization within Mark VI control system platforms.

Hardware Specifications

PLC and Control System Communication Architecture

The EISB module functions as the primary interface for the Exciter ISBus, managing the deterministic data exchange between the excitation control regulators and the external monitoring systems. It utilizes high-speed backplane bus communication velocity to ensure synchronization across redundant control channels. The board supports firmware flash compatibility, allowing for protocol updates and configuration adjustments via the system engineering workstation. This module is essential for maintaining the real-time data flow necessary for complex excitation control loops, ensuring minimal latency in command execution and feedback monitoring.

Frequently Asked Questions (FAQ)

Q: What is the primary role of the ISBus interface on this circuit board?

A: The ISBus interface serves as the high-speed communication backbone that links the exciter controller to the I/O and processor modules, enabling real-time diagnostic data sharing and synchronized firing of excitation power devices.

Q: Can this module be firmware upgraded while the exciter is in active service?

A: No, the IS200EISBH1A requires the excitation system to be off-line and the processor in a stop or maintenance mode to perform firmware flash operations safely, preventing potential corruption of the control logic during the transfer.

Field Installation Guidelines

• Static Discharge Protection: Always utilize an ESD-safe wrist strap connected to the designated chassis ground point. The circuit components on the ISBus board are sensitive to electrostatic discharge and can fail prematurely if handled improperly.
• Bus Termination: Ensure that the ISBus network is correctly terminated at both physical ends of the communication line to prevent signal reflections, which can cause intermittent data loss and system-wide communication faults.
• Cable Integrity: Use only shielded twisted-pair cabling for all ISBus connections. Ensure the shield is properly terminated at the system ground point, avoiding any common-mode noise injection into the communication circuit.
• Visual Inspection: Before powering the system, verify that the module is fully seated in the card cage and that the retention screws are tightened, providing a solid mechanical and electrical bond to the backplane.
