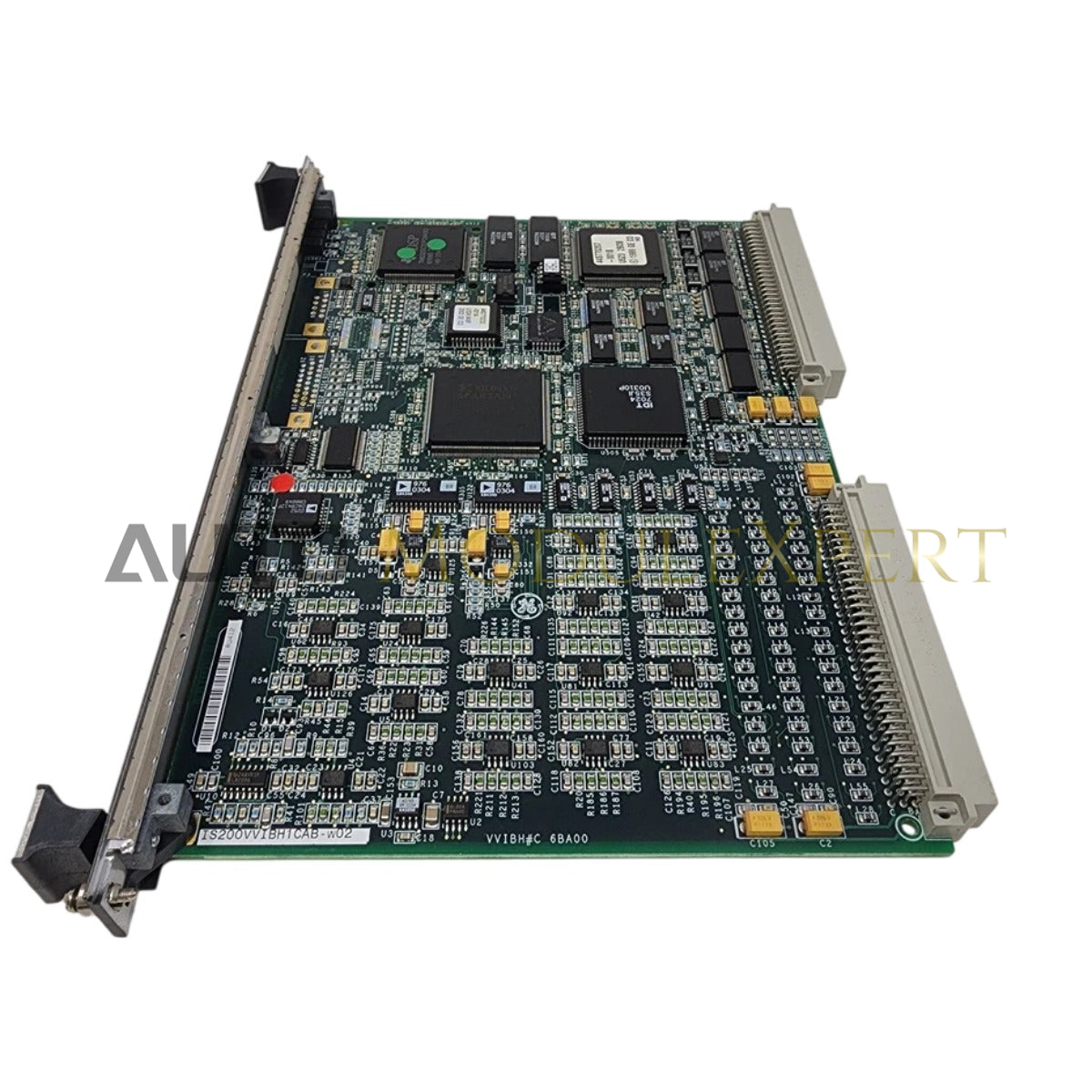

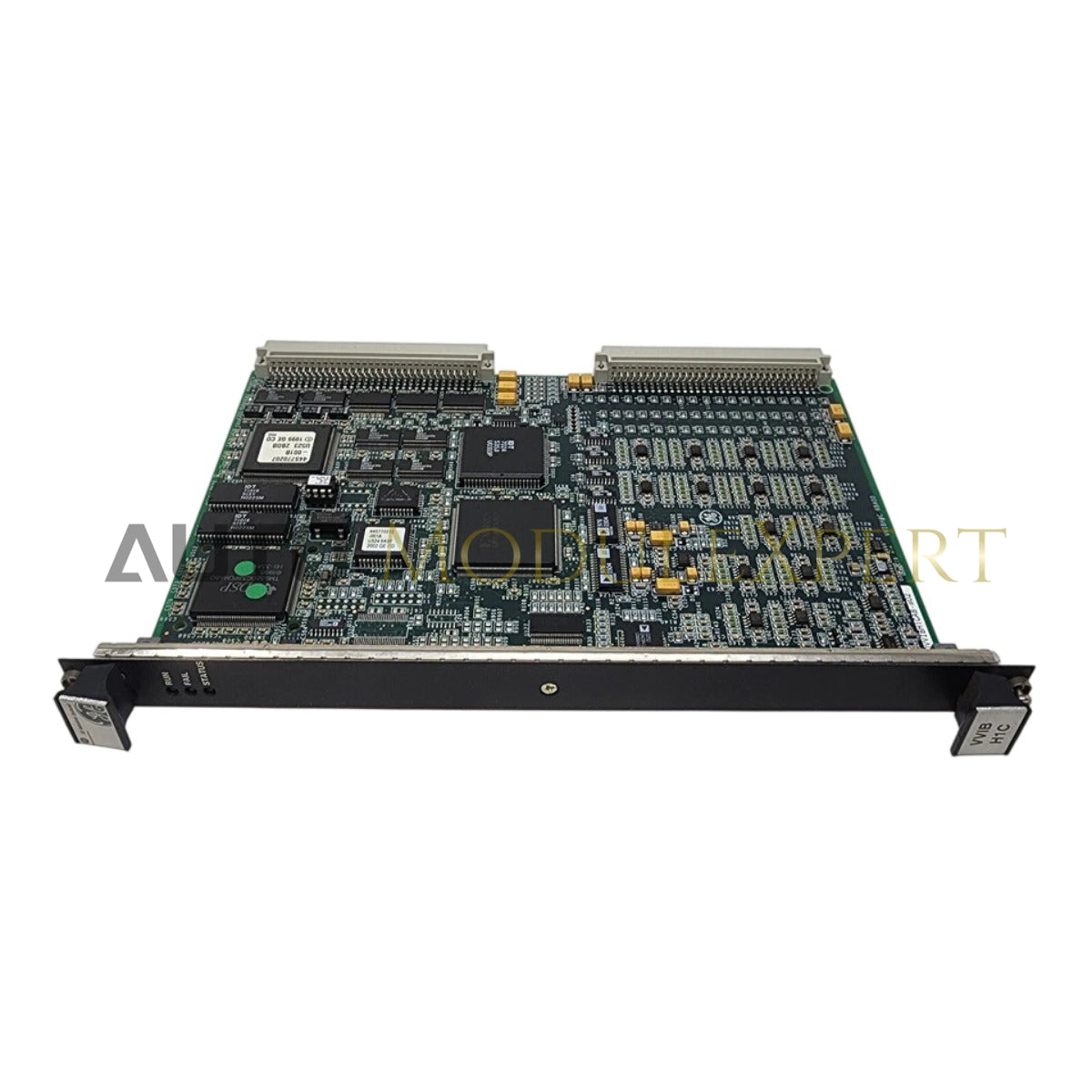

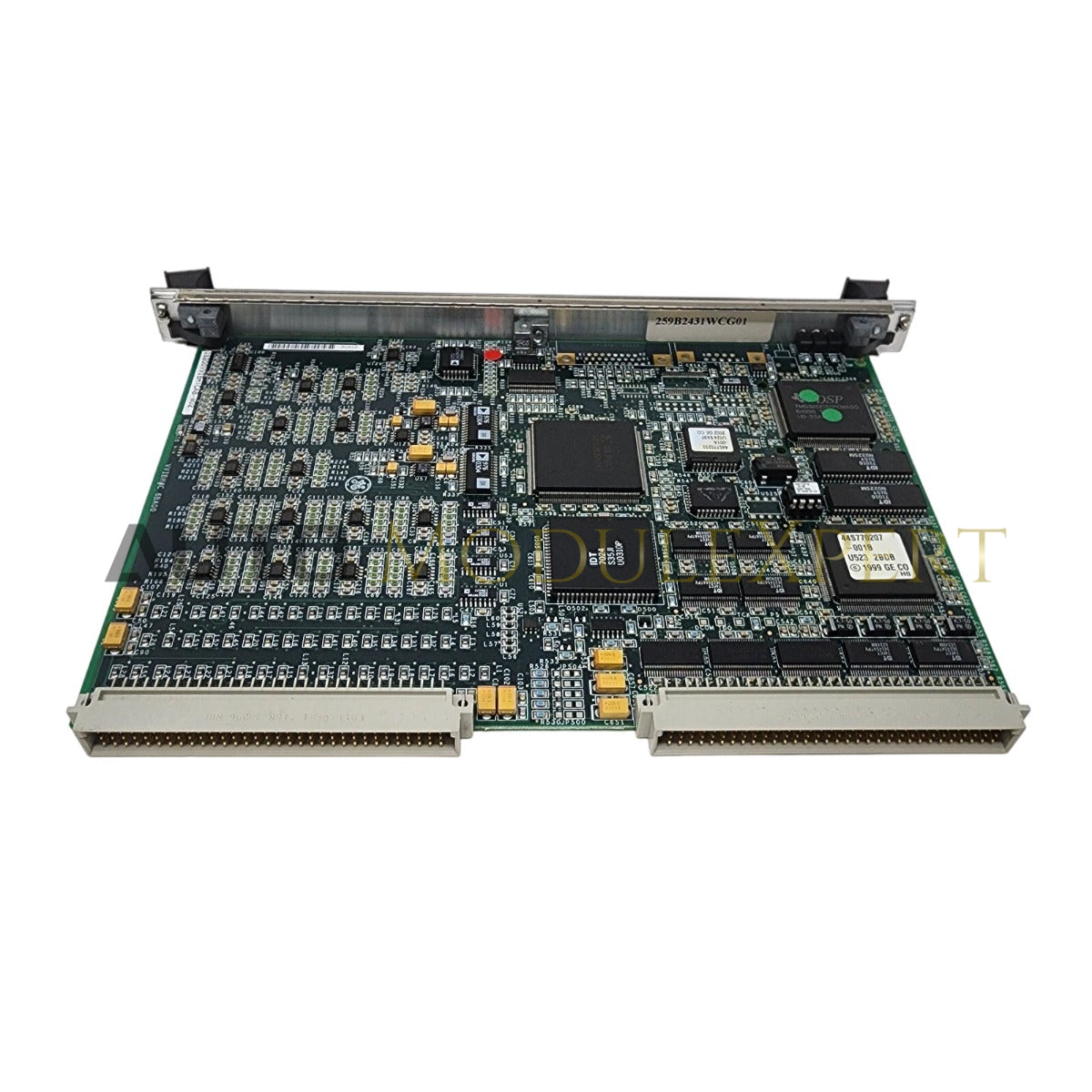

The GE IS200VVIBH1C AB, also cataloged as the IS200VVIBH1C VME Vibration Monitor Board, operates as a dedicated hardware component for high-speed vibration signal processing within Mark VI turbine control system architectures.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The IS200VVIBH1C AB serves as the primary VME-bus interface for dynamic signal acquisition, facilitating the monitoring of critical rotating machinery. This module is engineered to handle eddy-current probe scaling, ensuring that transducer outputs are correctly translated into usable engineering units for rotor dynamics analysis. The internal circuitry supports gap voltage validation, with strict adherence to -10 VDC targets to ensure probe health and linearity are maintained. To prevent measurement errors in high-interference environments, the board employs advanced cross-talk suppression techniques, isolating individual vibration channels and preserving the signal-to-noise ratio required for accurate analysis of machine health and structural vibration.

Frequently Asked Questions

Q: Does this vibration monitor board support online firmware updates?

A: Yes, the module supports firmware flash compatibility via the VME backplane interface. Ensure the host controller revision is compatible with the module firmware before initiating any flashing procedure to prevent initialization errors.

Q: How should I troubleshoot a persistent gap voltage alarm on one of the channels?

A: Check for probe tip damage, cable shielding integrity, or mechanical interference within the probe gap. Ensure that the -10 VDC excitation source is stable and that no ground loops exist between the probe and the terminal board interface.

Field Installation Guidelines

1. VME Backplane Insertion: Align the module carefully with the designated rack guides. Apply uniform pressure to the extractor handles to ensure the edge connectors are fully seated on the VME backplane.
2. Grounding: Secure the module faceplate to the rack chassis using the integrated screws to ensure a low-impedance ground path for EMI shielding.
3. Cable Routing: Separate high-speed vibration signal cables from high-voltage AC lines and motor leads to prevent signal coupling. Use shielded twisted-pair cabling for all probe interfaces.
4. Thermal Management: Ensure that the rack ventilation system is operational. The module relies on adequate airflow across the board surface to prevent localized overheating of the signal processors.
