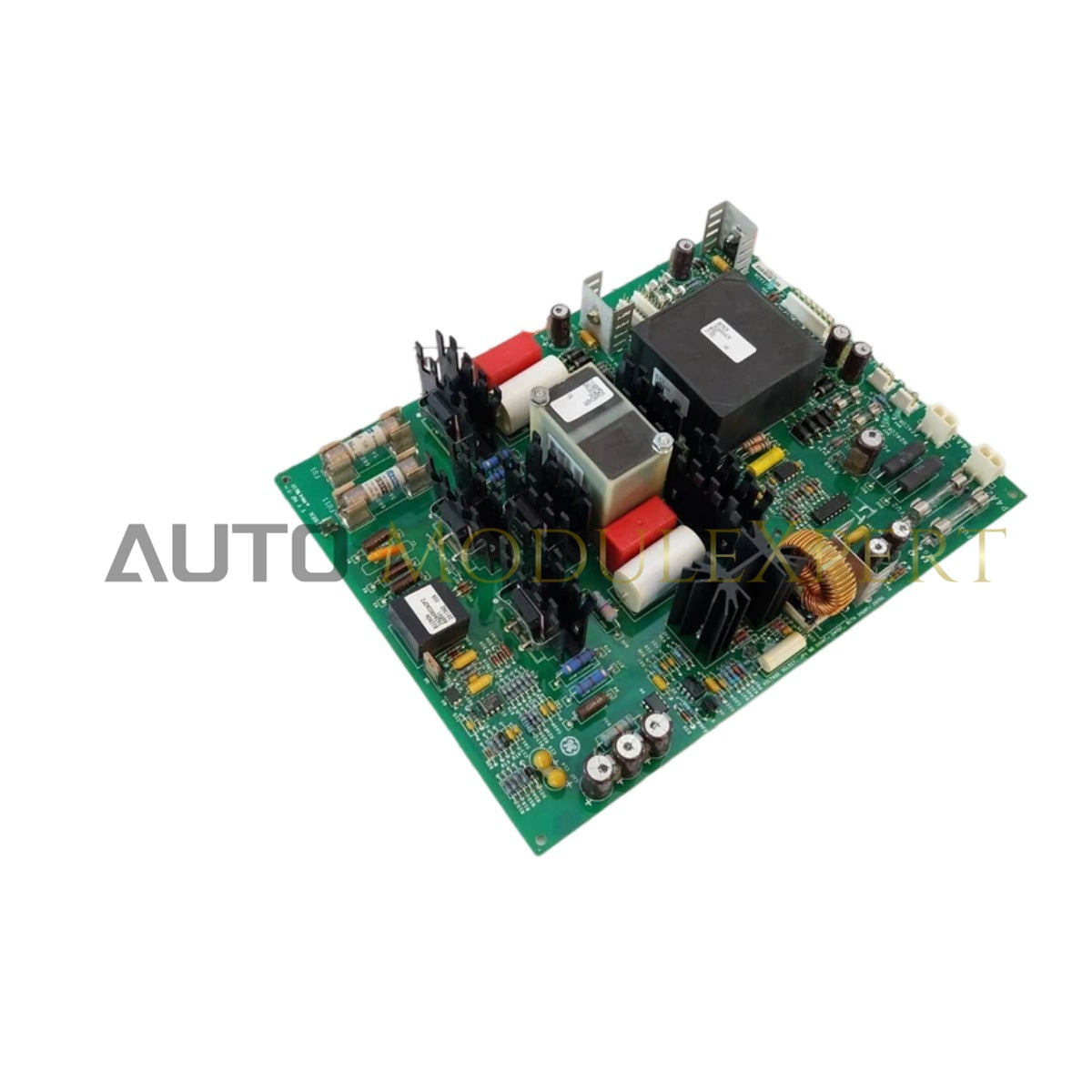

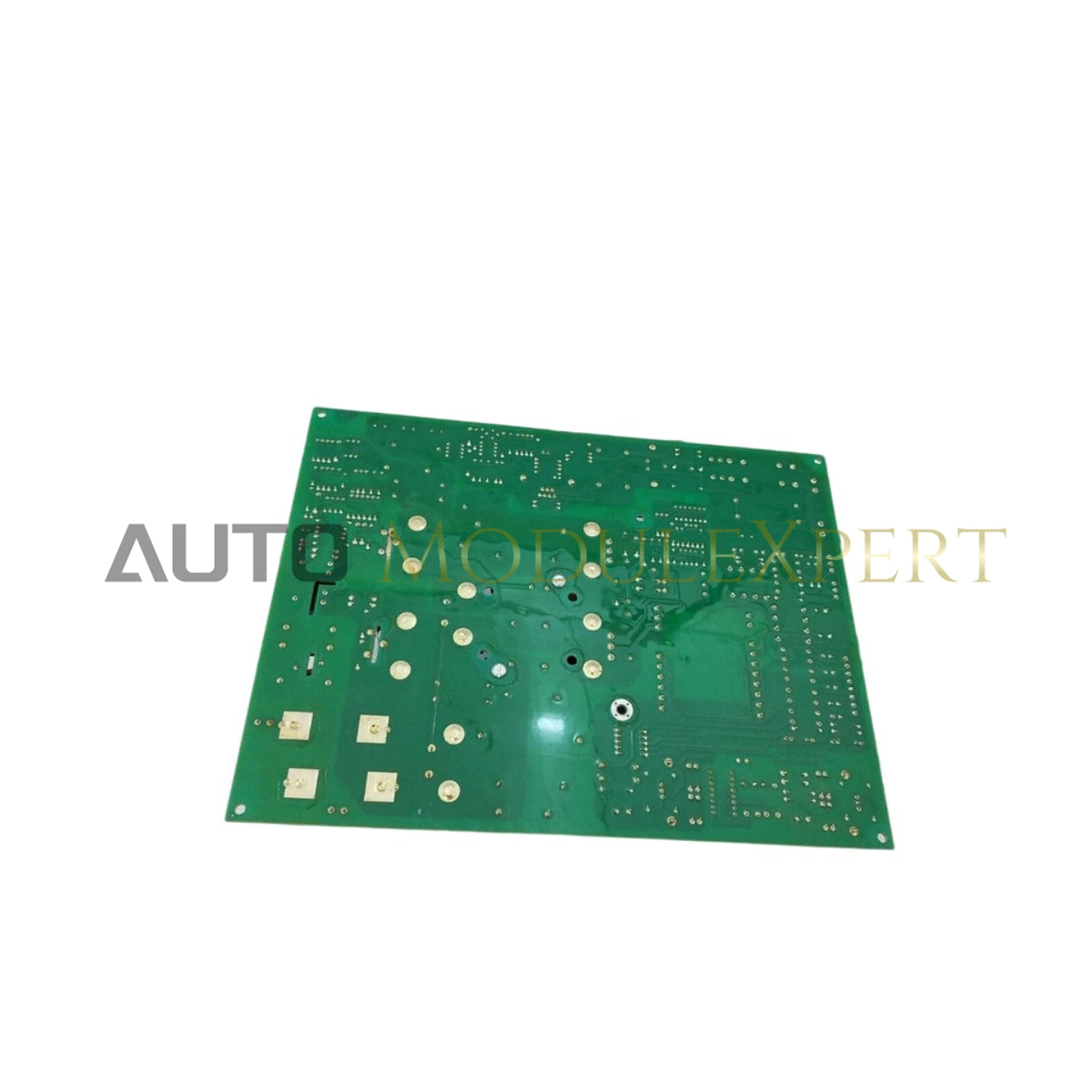

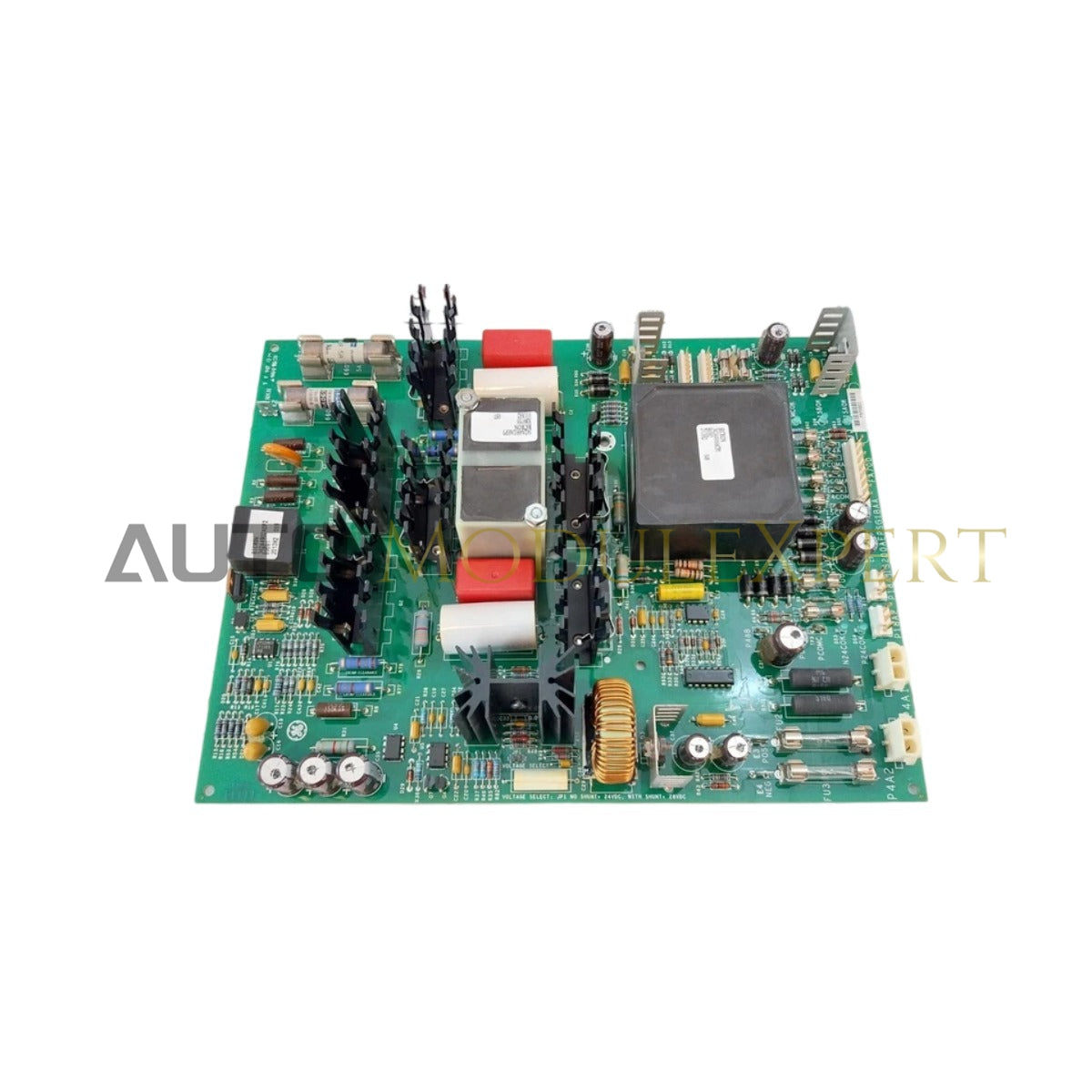

The GE IS210AEPSG1, also cataloged as the AEPS Excitation Power Supply Board, operates as a dedicated hardware component for power distribution within Mark VI Speedtronic control system platforms.

Hardware Specifications

Industrial Control and Power Distribution

The IS210AEPSG1 manages multi-rail power conversion to support logic-level and field-level circuitry. It utilizes high-speed backplane bus communication velocity to relay diagnostic status indicators directly to the controller. The module is engineered for firmware flash compatibility to support system health monitoring, while its architecture provides I/O density scaling necessary for localized power regulation in excitation cabinets. Stable voltage output is maintained through internal filtering, ensuring that deterministic networks, such as those relying on Profinet or proprietary backplane protocols, remain free from power-induced signal jitter or data packet loss.

Frequently Asked Questions (FAQ)

Q: What is the dielectric isolation rating between the input and the control backplane?

A: The board provides a dielectric isolation rating of 1500 VAC continuous, which protects low-voltage control components from transients or faults originating on the DC input power side.

Q: How should the diagnostic LEDs be interpreted during operation?

A: The front-facing LED array provides real-time status of each individual output rail. If an LED for a specific rail (e.g., +5 VDC or +24 VDC) is extinguished while input power is applied, it indicates a localized rail failure or an over-current trip condition.

Field Installation Guidelines

• Ventilation: This module relies on natural convection cooling. Ensure that no obstructions are present above or below the board within the enclosure to maintain airflow as specified in the thermal dissipation profiles.
• Grounding: Secure the board chassis to the system ground bus to ensure proper electromagnetic compatibility (EMC) and to facilitate the effectiveness of the internal surge voltage protection limits.
• Power Connection: Verify that the input DC source is within the 24 VDC to 125 VDC range before engagement. Utilize appropriately rated wiring to handle the aggregate current capacity of 10 A to prevent voltage drop and thermal stress on terminal connectors.
• Handling: Avoid touching the PCB circuitry directly. Use an anti-static mat and grounded wrist strap when inspecting or installing the board to prevent latent damage to the voltage regulator components.
