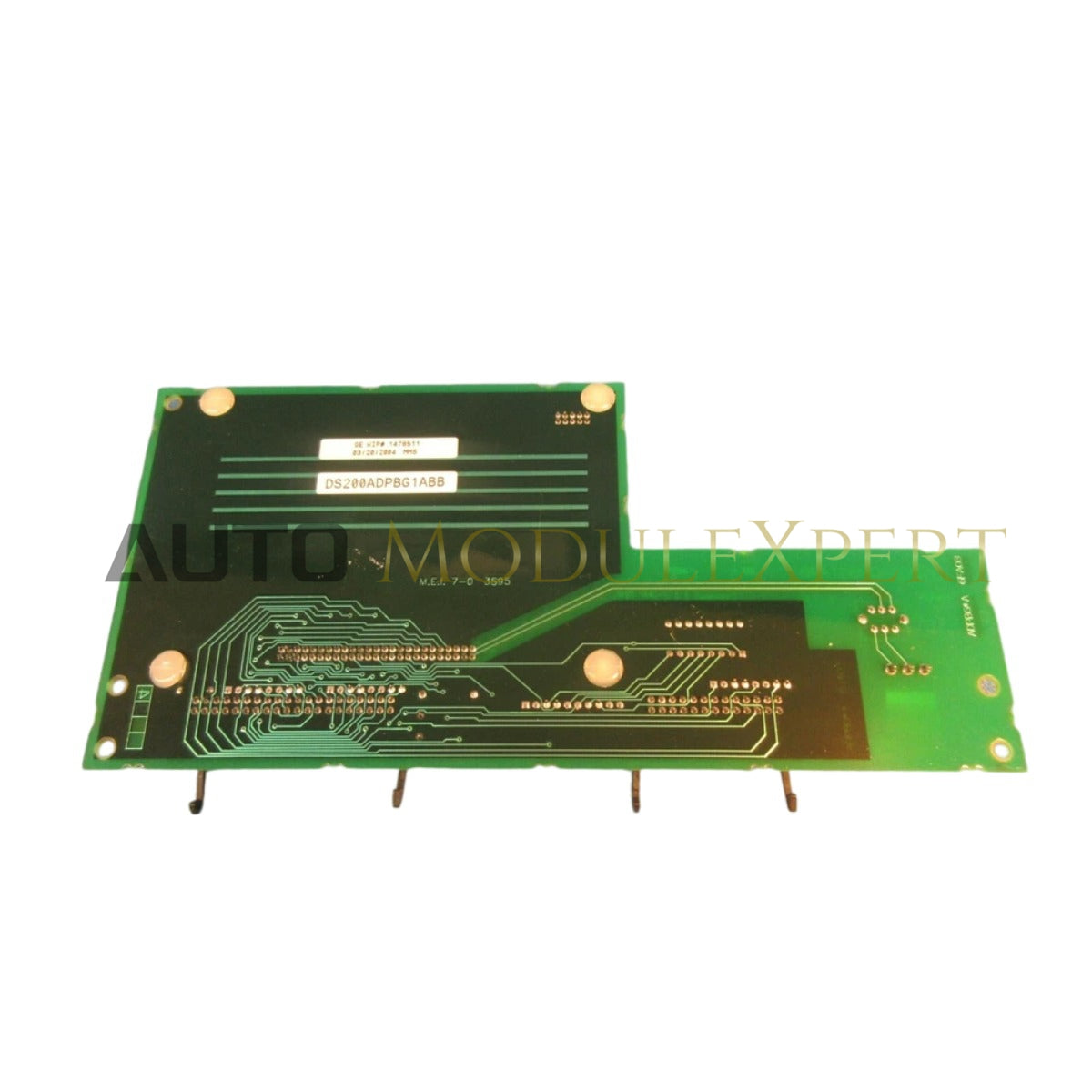

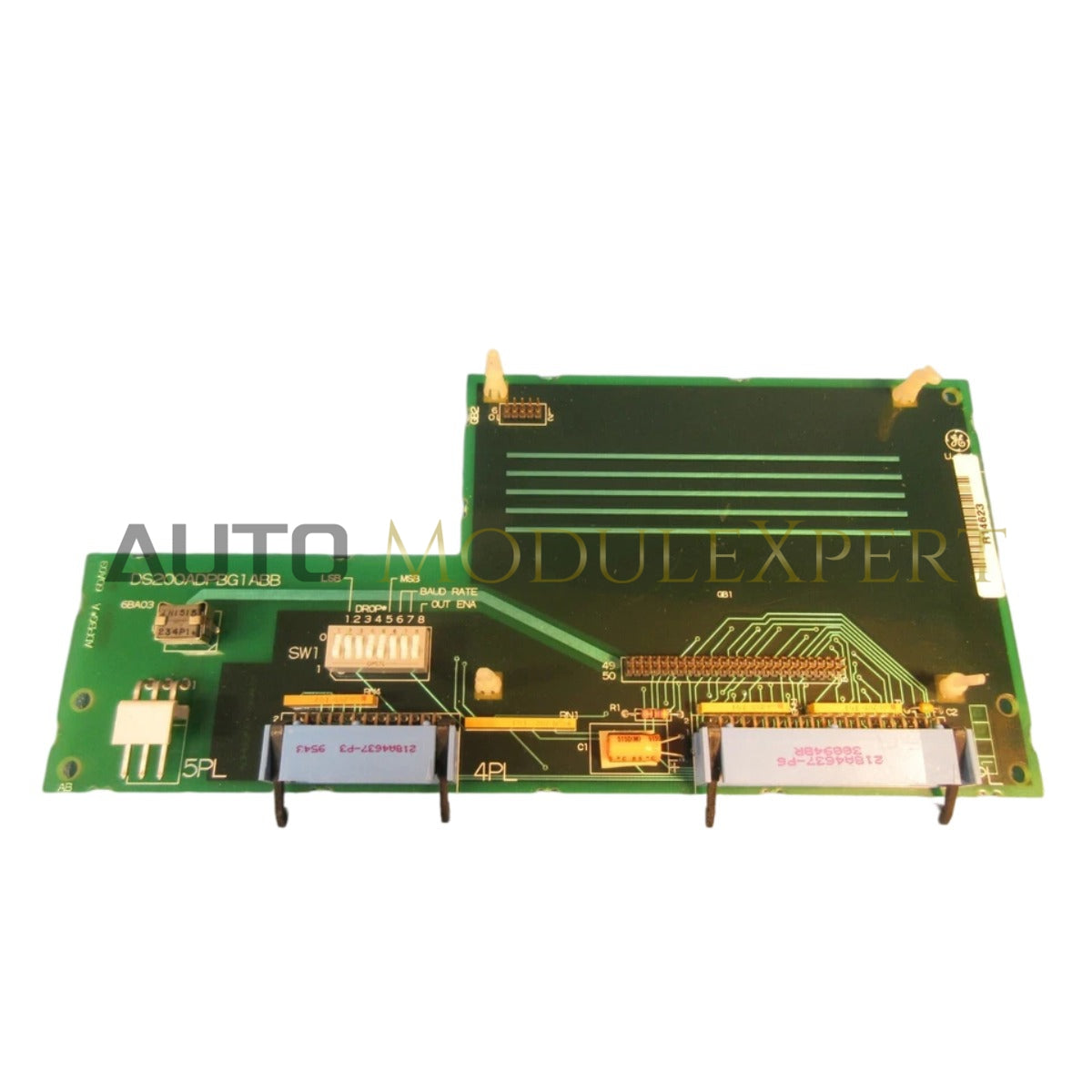

The General Electric DS200ADPBG1ABB, also cataloged as the DS200ADPBG1ABB Genius I/O Adapter Board, operates as a dedicated hardware component for relay-based signal distribution within Genius I/O network platforms.
Suffix Breakdown & Model Matrix
- DS200: Indicates the industrial drive control assembly series.
- ADPB: Specifies the Genius I/O adapter board function with relay integration.
- G1: Denotes the hardware generation or revision level.
- ABB: Defines the specific technical iteration and board layout version.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200ADPBG1ABB |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.8 kg |
| Dimensions | 15.9 cm x 17.8 cm |
| Operating Temp | -30 deg C to +65 deg C |
| Power Consumption | +5 V DC, 6 A |
| Relay Channels | 12 |
| Supply Voltage | 28 V DC |
Backplane Bus and Firmware Compatibility
The General Electric DS200ADPBG1ABB utilizes surface mount technology to maintain compact I/O density scaling on the host backplane. It requires strict adherence to deterministic backplane bus communication velocity to ensure the 12 relay channels respond within the scan time of the Genius I/O network. Firmware flash compatibility is managed via the master controller interface; technicians must confirm the host backplane supports the G1 hardware revision before deployment. The board is designed to interface directly with 28 V DC supply voltages to drive the onboard relay logic without requiring external signal conversion.
Frequently Asked Questions (FAQ)
Q: Can the onboard relays be individually controlled via the Genius network?
A: Yes. The board is mapped as an I/O adapter on the Genius network, allowing the host controller to address each of the 12 relay channels independently.
Q: Is this board capable of hot-swapping?
A: Hot-swapping is not supported. The backplane power must be fully isolated before installing or removing the board to prevent electrical transient damage to the surface mount components.
Field Installation Guidelines
- Preparation: Ensure the DIN-rail is securely mounted and grounded. Verify that the system is de-energized to prevent short circuits during terminal connection.
- Mounting: Snap the board onto the standard DIN-rail. Ensure the locking mechanism is engaged for long-term vibration resistance.
- Wiring: Terminate signal wiring to the 12 relay channel terminals. Maintain proper separation between high-voltage relay outputs and low-voltage control signals to prevent crosstalk.
- Power Connection: Provide a stable +5 V DC, 6 A source to the logic power inputs. Ensure the 28 V DC supply is connected to the appropriate relay common pins.
- Grounding: Connect the board chassis ground to the cabinet common ground point using a low-impedance braided strap to protect against surge voltage.
- Verification: After power-up, verify that the diagnostic status indicators on the board signal normal network communication.
