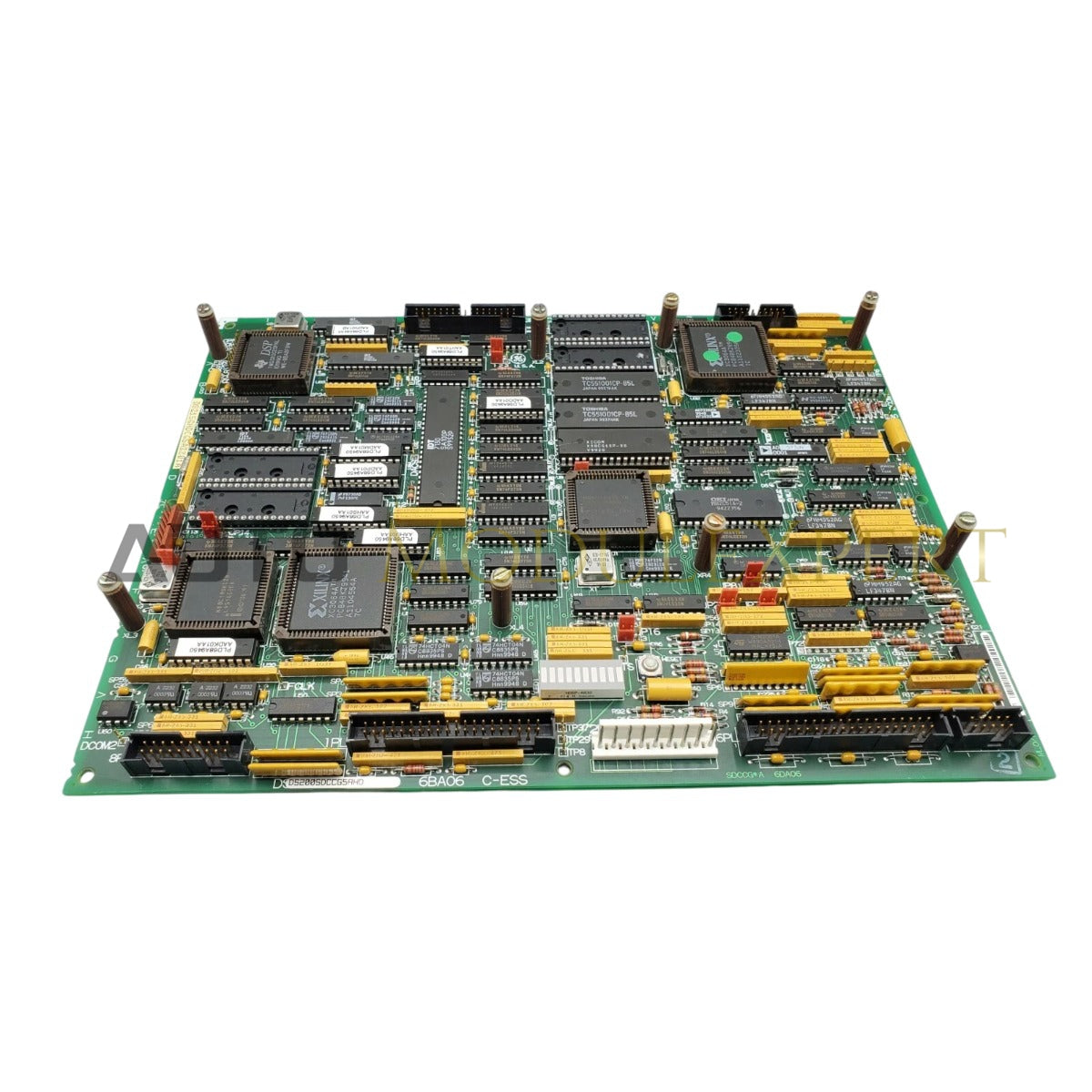

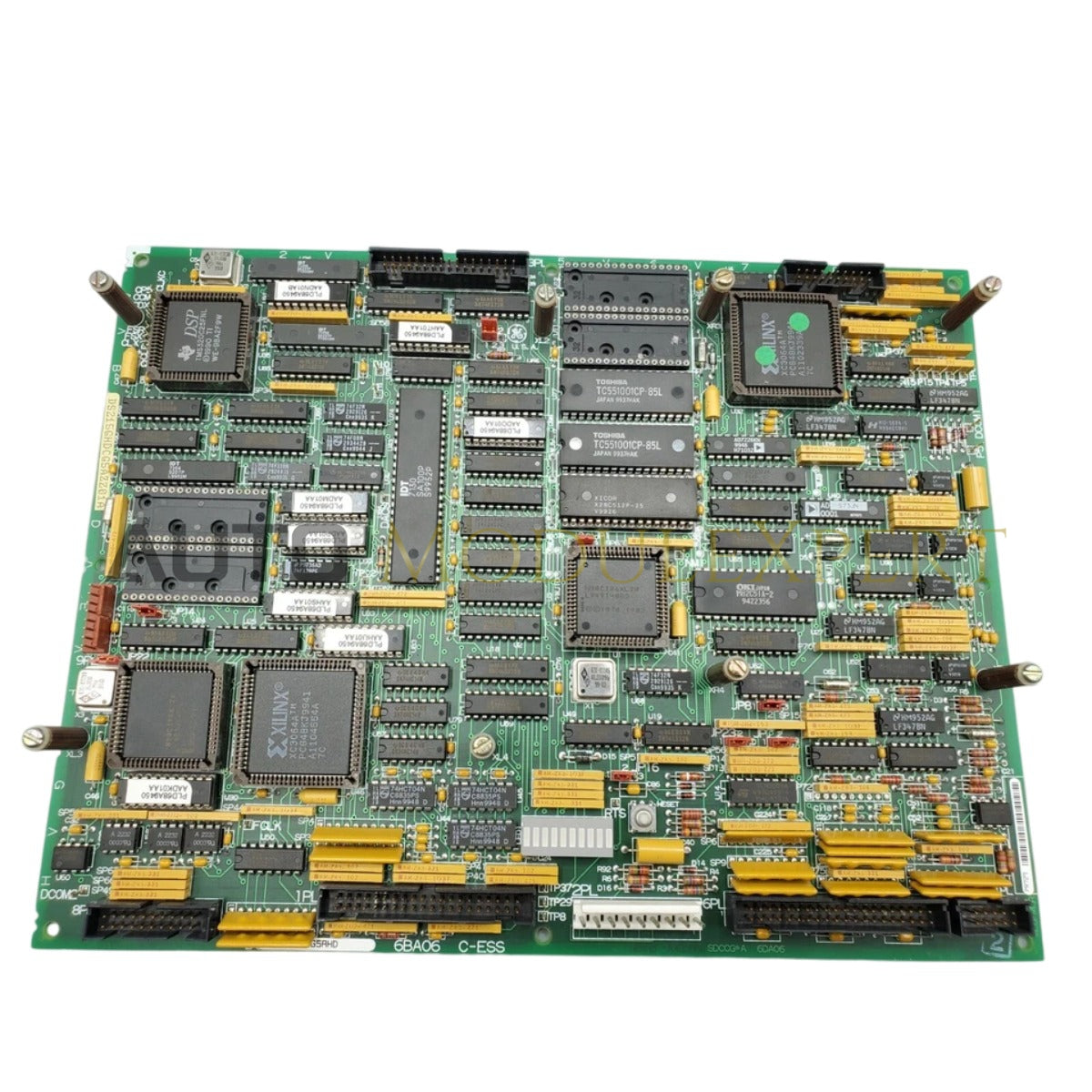

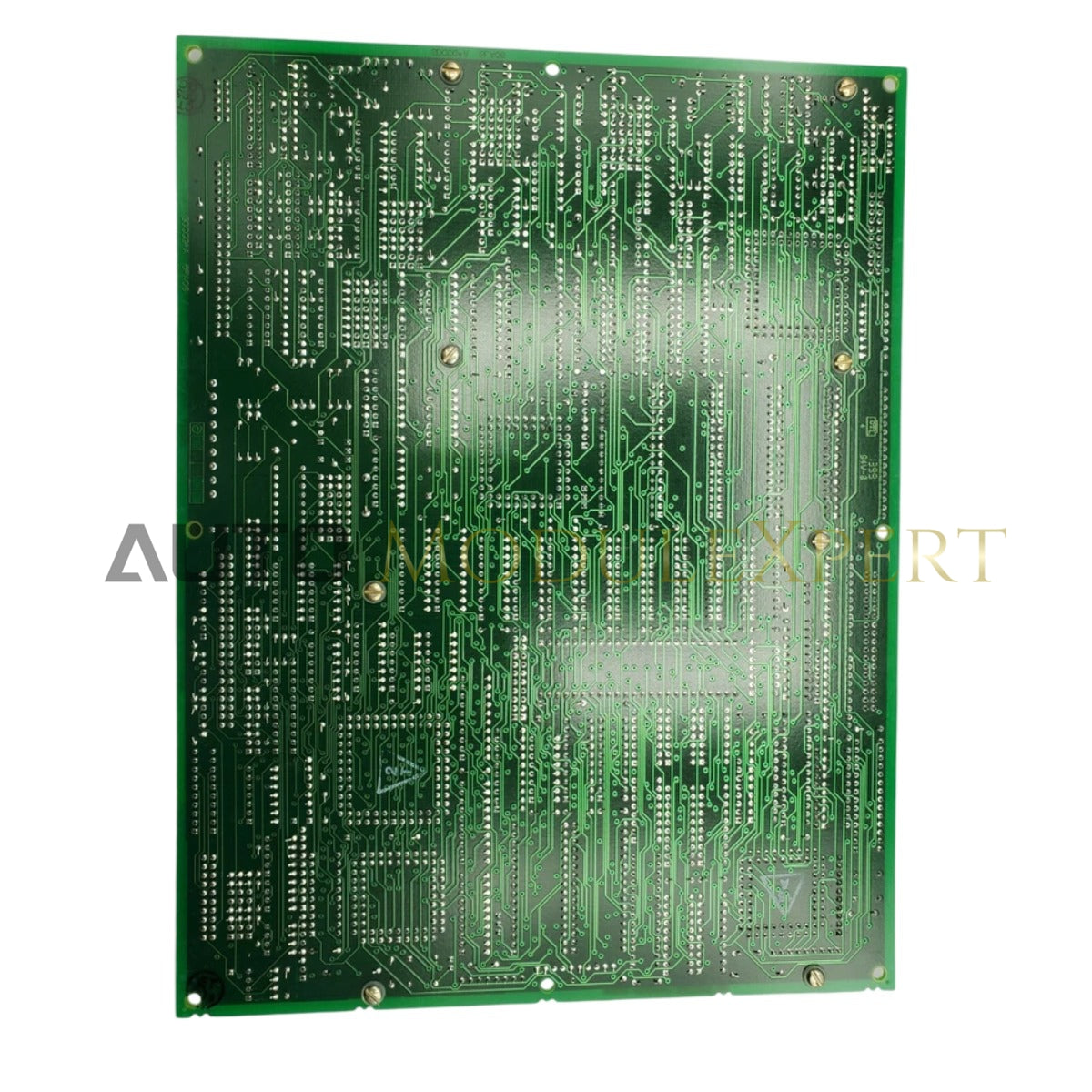

Configured for high-speed pulse-width modulation (PWM) and regulator management in industrial drive architectures, the General Electric DS200SDCCG5A (DS200SDCCG5A Inverter Drive Control Board) provides direct physical/electrical execution.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The General Electric DS200SDCCG5A operates as the primary logic interface for inverter drive systems, managing deterministic I/O density scaling and motor control sequences. The module utilizes high-speed internal circuitry to process feedback signals, ensuring the drive maintains precise velocity and torque output. Firmware flash compatibility is strictly mapped to the specific drive platform revision; installation of the board requires strict adherence to the system's firmware compatibility matrix to prevent bus communication latencies or synchronization failures. The hardware facilitates real-time monitoring of drive parameters, and any interruption in the backplane communication velocity will trigger an immediate drive inhibit or fault state to protect the power-switching components.

Frequently Asked Questions

Q: Does this board support hot-swapping while the inverter drive is energized?

A: No. The DS200SDCCG5A must be completely isolated from the DC bus and control power before insertion or extraction to prevent electrical arcing and damage to the backplane communication buffers.

Q: How do the onboard jumpers affect the board's operational configuration?

A: Physical jumper settings on the DS200SDCCG5A define the hardware-level addressing and mode selection. Ensure that the jumper configuration on the replacement board matches the original unit exactly to ensure proper integration with the existing drive logic.

Field Installation Guidelines

• Mounting Stability: Secure the board into the drive control chassis using all provided mounting fasteners to guarantee consistent contact with the backplane grounding system.
• Cabling: All interface cabling must be verified for secure seating within the board connectors. Use high-quality shielded cabling for feedback signals to mitigate the impact of electromagnetic interference generated by the drive’s power switching section.
• Grounding: Establish a low-impedance connection between the board chassis and the drive earth ground to ensure transient protection.
• Environmental: Maintain the operating environment within the drive cabinet free of excessive moisture and conductive particulates, as these can accumulate on the PCB and lead to parasitic current leakage.
