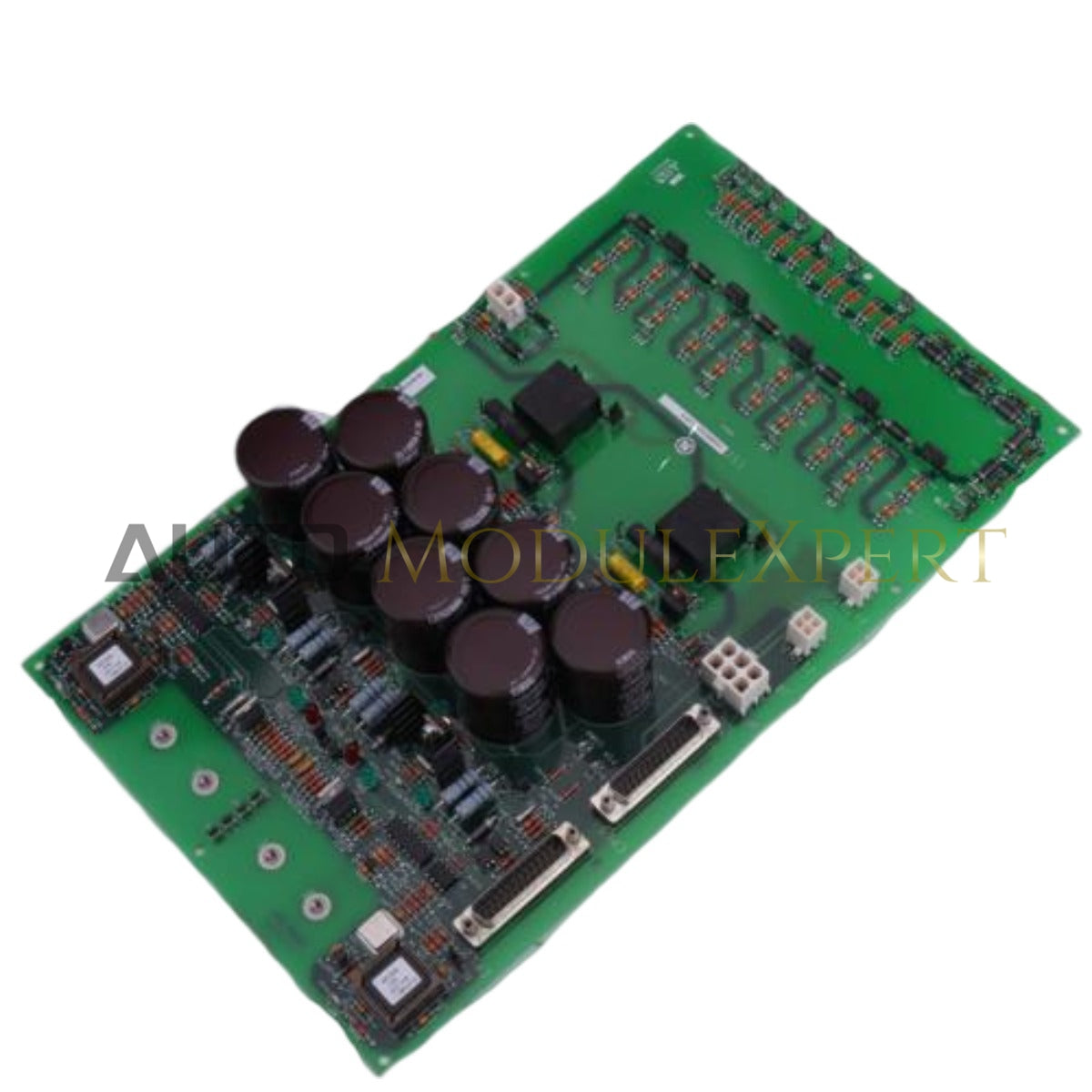

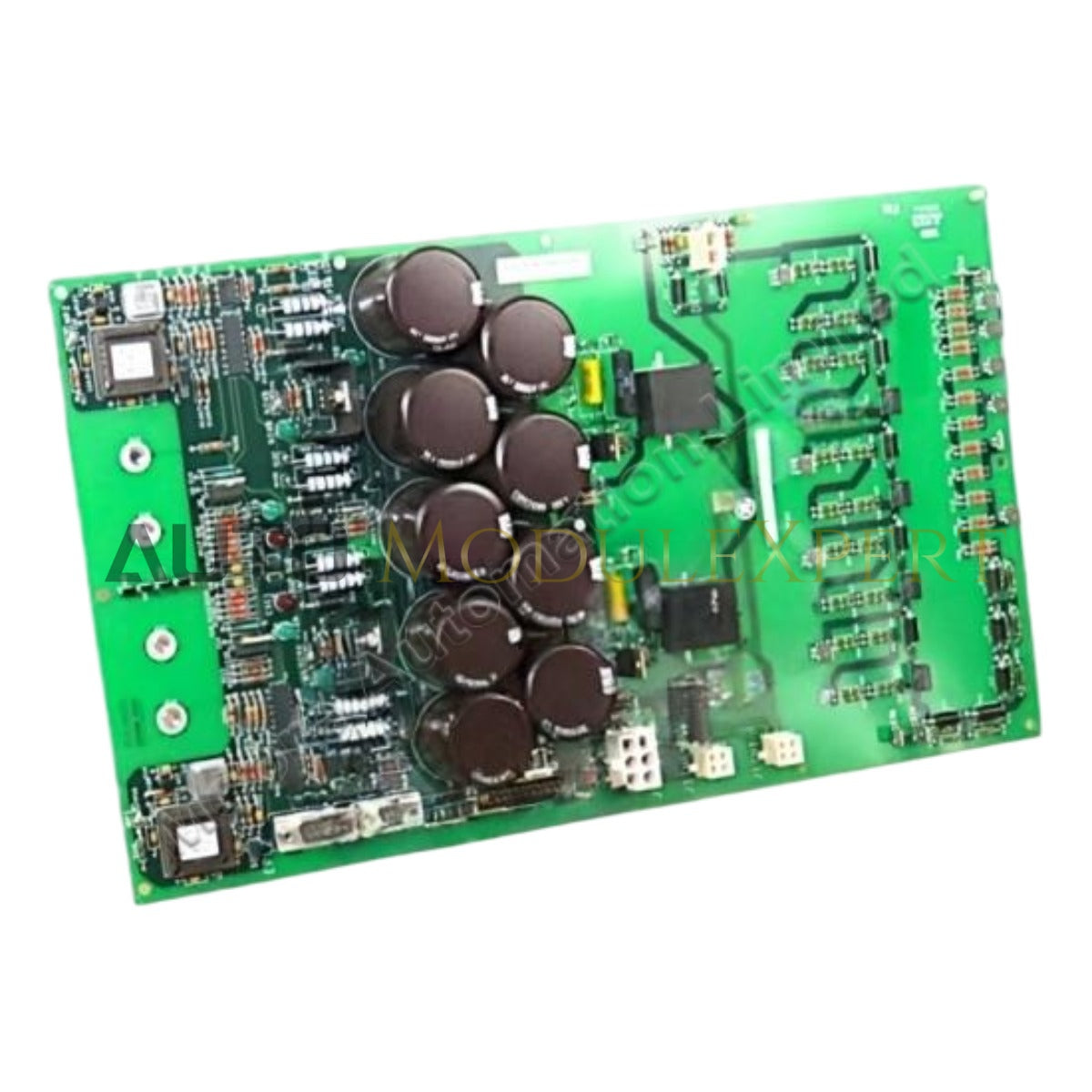

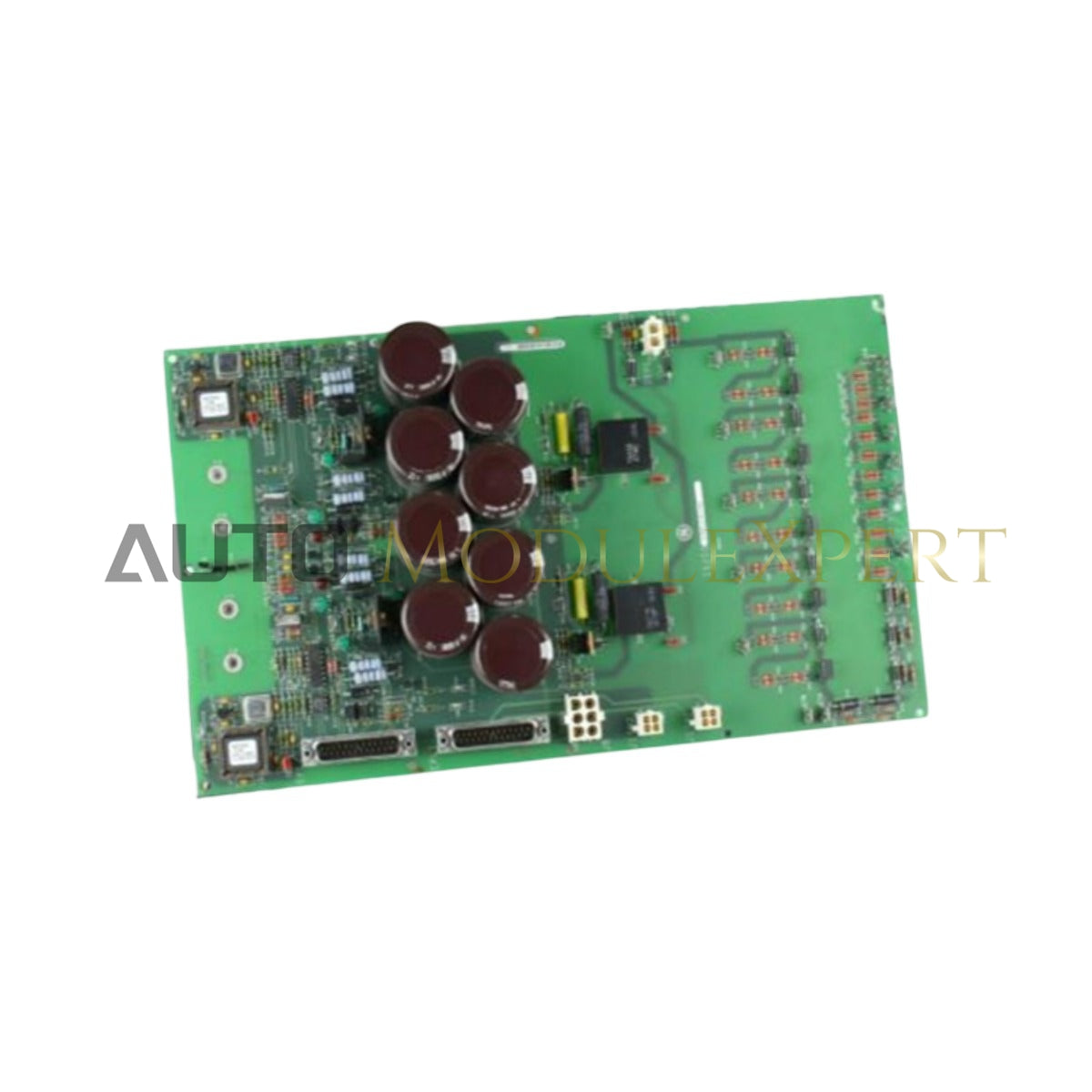

Configured for energy dissipation and SCR firing control in EX2100 excitation systems, the General Electric IS200EDEXG1AFA (IS200EDEXG1AFA Exciter De-Excitation Board) provides direct physical/electrical execution of generator shutdown sequences.

Suffix Breakdown & Model Matrix

• IS200: Base hardware series designation for GE excitation control components.
• EDEX: Exciter De-Excitation circuit board architecture.
• G1AFA: Revision identifier; indicates specific configuration for SCR de-excitation groups and control interface compatibility.

Hardware Specifications

Backplane Bus Communication Velocity Licences

The IS200EDEXG1AFA integrates into the EX2100 architecture to manage high-energy transitions during generator field discharge. The module facilitates I/O density scaling by providing local conduction sensing feedback, which is critical for maintaining deterministic response times during SCR de-excitation initiation. Firmware flash compatibility ensures that the control logic remains aligned with the master EXT B processor, while the onboard circuitry maintains voltage retention capabilities during transient power failures. This architecture supports high-velocity communication across the backplane bus to ensure that de-excitation firing commands are executed within millisecond thresholds.

Frequently Asked Questions

Q: Can the IS200EDEXG1AFA initiate a de-excitation sequence without a signal from the EXT B board? A: Yes. The board is designed with independent logic capability to initiate de-excitation firing if a loss of communication or a failure in the primary EXT B controller is detected.

Q: How are the configurable jumpers (JP1–JP6) utilized during setup? A: These jumpers are used to define the specific excitation path configuration and operational modes. They must be set according to the site-specific generator field discharge requirements and the excitation system architecture defined in the technical manual.

Field Installation Guidelines

1. Ensure all excitation field power is isolated and capacitors are fully discharged before handling or installing the board.
2. Align the board within the EX2100 excitation cabinet slot, ensuring all bayonet connectors are firmly seated to prevent high-current arcing.
3. Configure the JP1–JP6 jumpers strictly according to the original system commissioning documentation to ensure correct SCR firing alignment.
4. Verify that the EPSM module is delivering the stable 24 VDC output from the 125 VDC input bus prior to energizing the control logic.
5. Inspect all circuit protection elements for signs of thermal fatigue or mechanical damage following any high-energy dissipation event.
