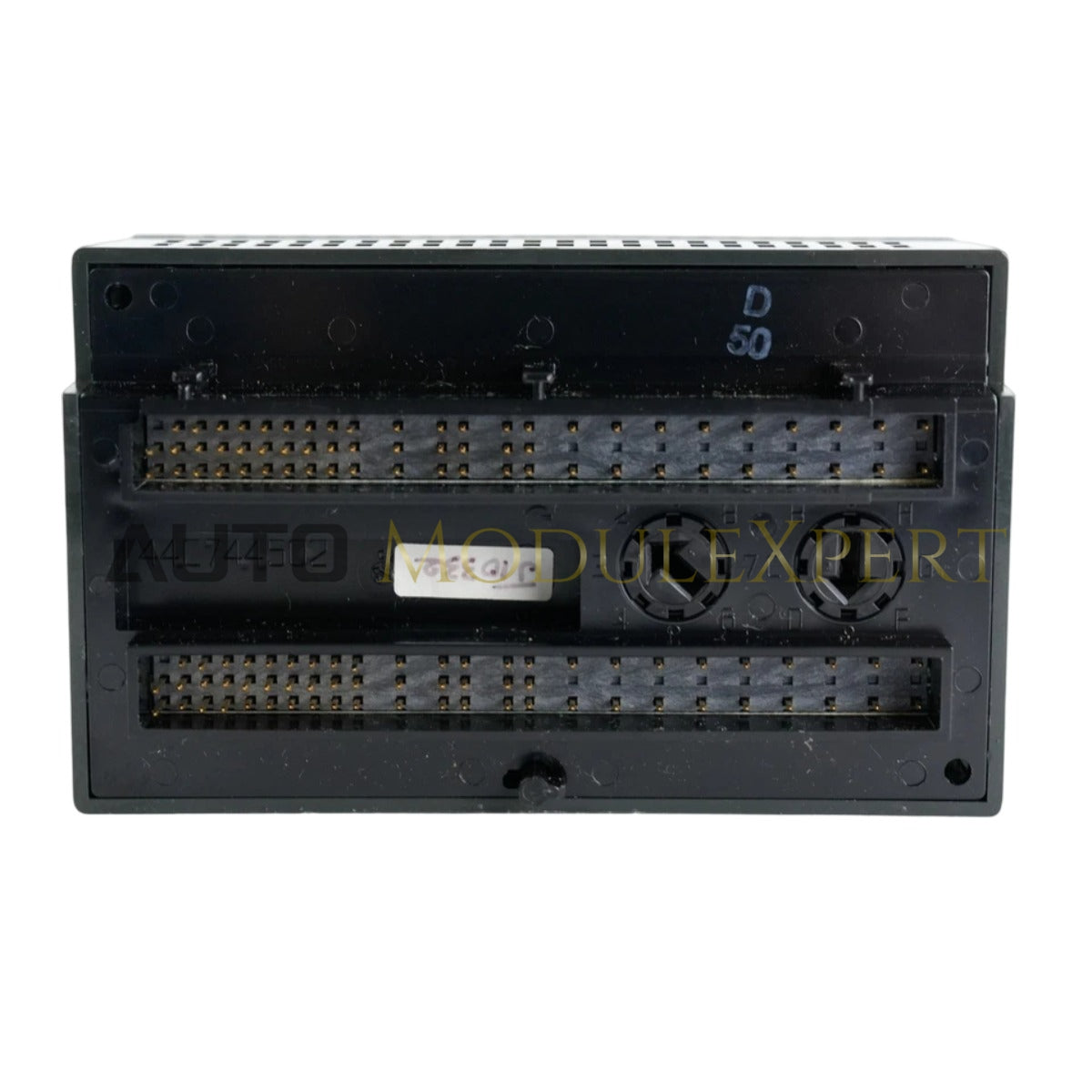

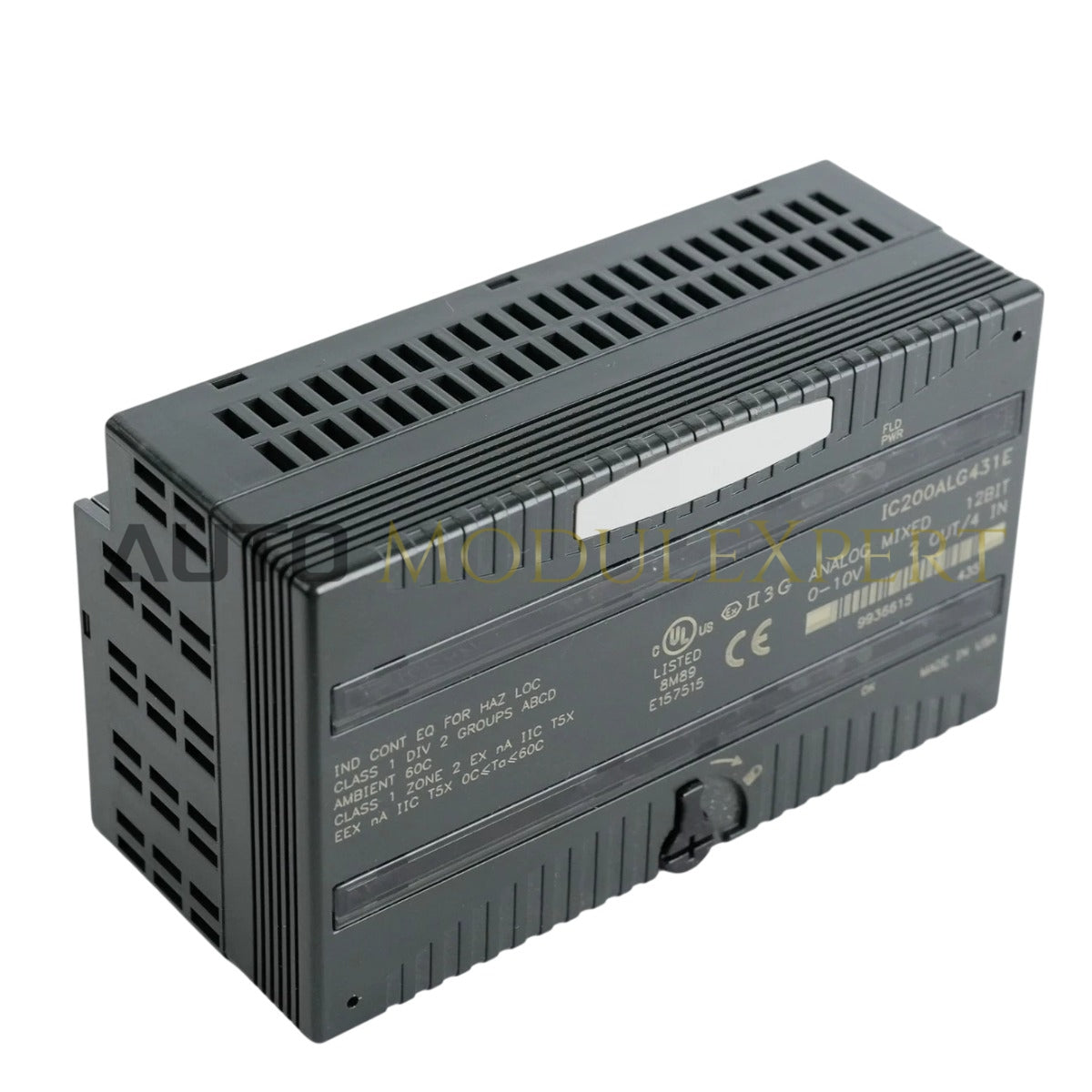

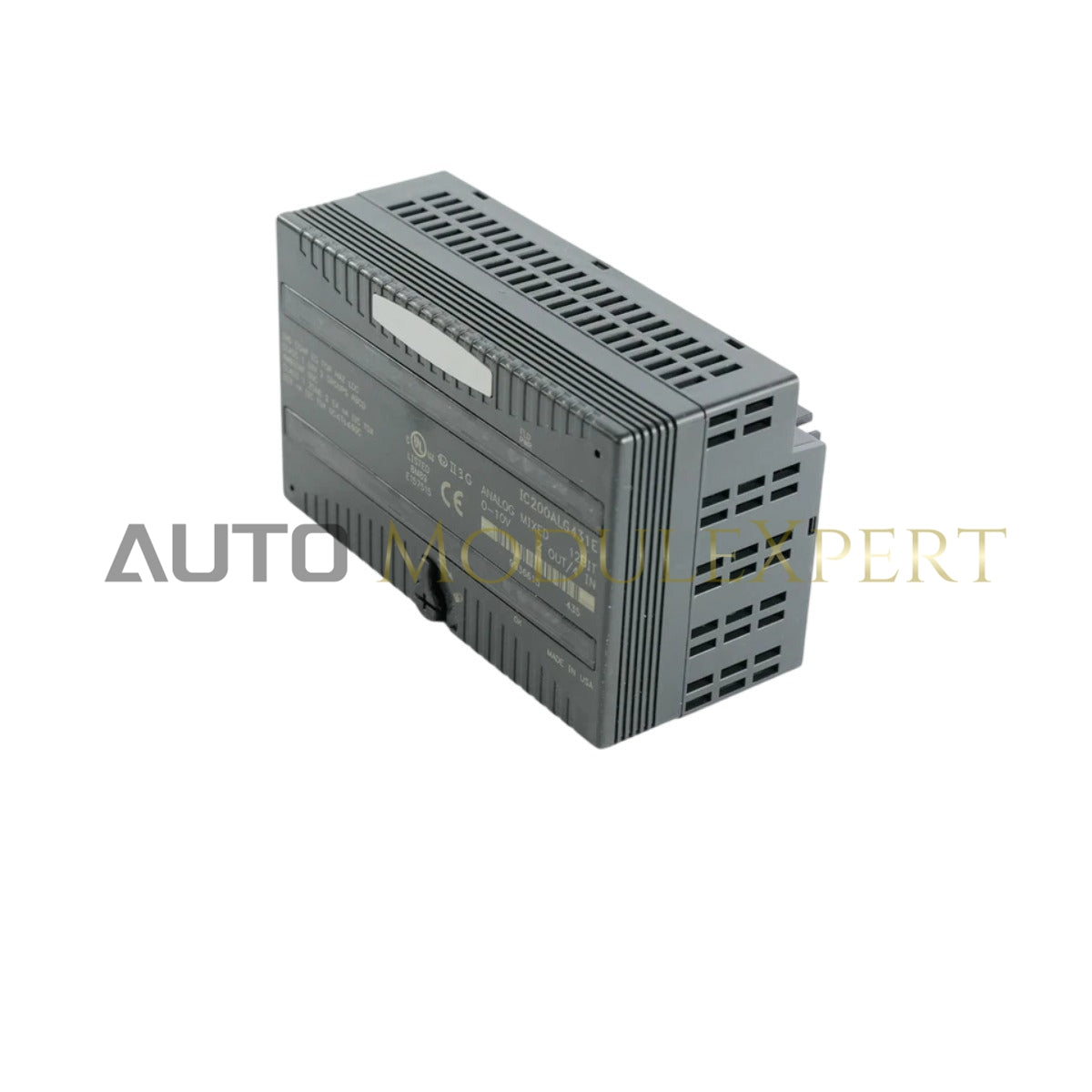

The GE General Electric IC200ALG431, also cataloged as the IC200ALG431 Mixed Module, operates as a dedicated hardware component for integrated analog signal conversion and control within VersaMax platform networks.

Hardware Specifications

Backplane Bus Communication and Firmware Compatibility

The module facilitates signal processing by interfacing directly with the VersaMax backplane, utilizing high-speed bus arbitration to maintain deterministic data throughput. The unit supports I/O density scaling by consolidating multiple analog functions into a single module slot, optimizing rack space and wiring requirements. Firmware flash compatibility is managed via the host CPU, allowing for transparent integration. Backplane bus communication velocity is maintained across the local bus, ensuring precise synchronization of analog values with the PLC scan cycle, which is essential for maintaining process stability in sensitive instrumentation loops.

Frequently Asked Questions

Q: Does this module require external power for the analog loops?

A: Yes, analog modules typically require a clean, stable 24 VDC supply to power the input/output loop circuitry. Users should ensure this supply is common-referenced to the system ground where applicable.

Q: Can the input/output ranges be reconfigured?

A: The operating modes for the analog channels are configured via the system software; ensure that the selected ranges (current or voltage) match the field device specifications to avoid signal clipping or hardware damage.

Field Installation Guidelines

• Mount the module securely onto a standard VersaMax I/O carrier, ensuring that the backplane connector is fully seated to prevent signal noise or communication faults.
• Utilize high-quality shielded, twisted-pair cabling for all analog signal runs to minimize electromagnetic interference (EMI) and common-mode noise.
• Connect the cable shield to a single-point chassis ground at the cabinet entry to prevent ground loops that could introduce offset errors in analog readings.
• Separate analog signal conductors from high-power AC lines and inductive load switching circuits by at least 15 cm to prevent signal degradation.
• Verify the channel-to-channel isolation specifications before connecting signals from different process zones to prevent potential potential differences.
• Observe the diagnostic LEDs during system startup to confirm that the module is communicating with the host processor and that no channel-level faults are detected.
