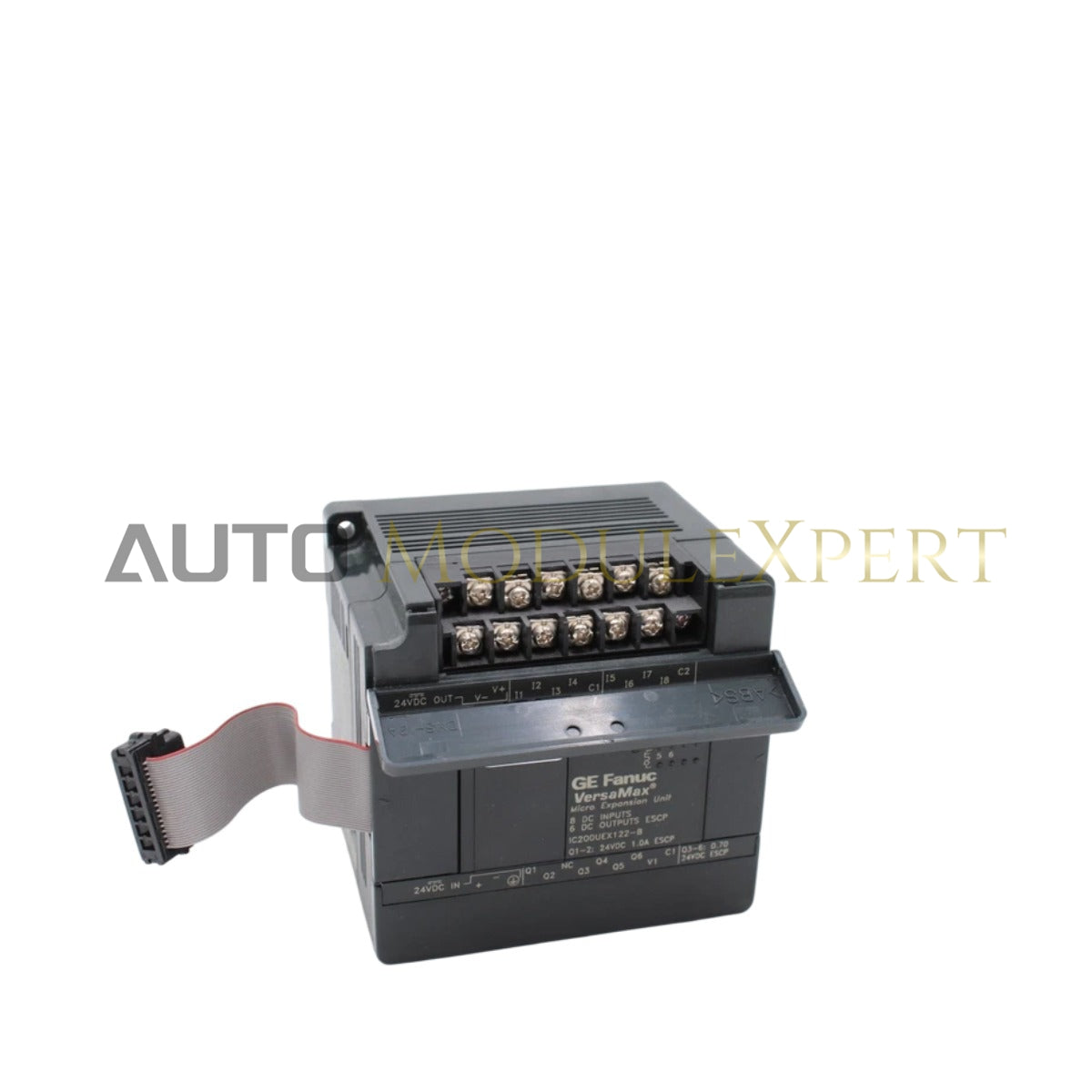

The GE Fanuc IC200UEX122B, also cataloged as the IC200UEX122 Micro Expansion Unit, operates as a dedicated hardware component for I/O capacity scaling within Versamax micro control networks. This unit provides direct physical/electrical execution, extending the discrete I/O capabilities of the primary PLC by interfacing with the local expansion bus.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The IC200UEX122B module is engineered to integrate seamlessly into deterministic control architectures, ensuring that extended I/O points are updated within the host controller's defined scan-cycle timing. By utilizing the dedicated Versamax micro expansion bus, the unit maintains synchronized data transmission with the primary CPU, preventing bottlenecks in signal processing. The module hardware handles local signal state buffering to ensure that remote expansion nodes communicate status data without introducing jitter into the broader network environment.

Frequently Asked Questions

Q: Can this expansion unit be powered independently of the host PLC?

A: The IC200UEX122B requires a 24 VDC power supply for operation; verify the power distribution scheme of your backplane to ensure it is correctly integrated with the host controller's power segment.

Q: How many expansion units can be connected to a single micro PLC?

A: The maximum number of expansion units supported depends on the specific base model's capacity and the total I/O point limit defined by the controller firmware.

Field Installation Guidelines

• DIN-Rail Mounting: Secure the expansion unit onto a standard 35 mm DIN rail. Ensure the interlocking mechanism is fully engaged with the adjacent module or CPU to maintain continuous electrical connectivity of the expansion bus.
• Power Wiring: Connect a regulated 24 VDC supply to the designated terminals. Use appropriate wire gauges to ensure minimal voltage drop and prevent logic errors at the expansion unit.
• Bus Cable Routing: Keep expansion bus cabling away from high-voltage conduits or electromagnetic interference sources to maintain the integrity of the data signals.
• Grounding: Ensure the unit's chassis ground terminal is connected to the common system ground. This step is necessary to prevent potential differences between nodes and to protect the module from static discharge.
