Product Overview

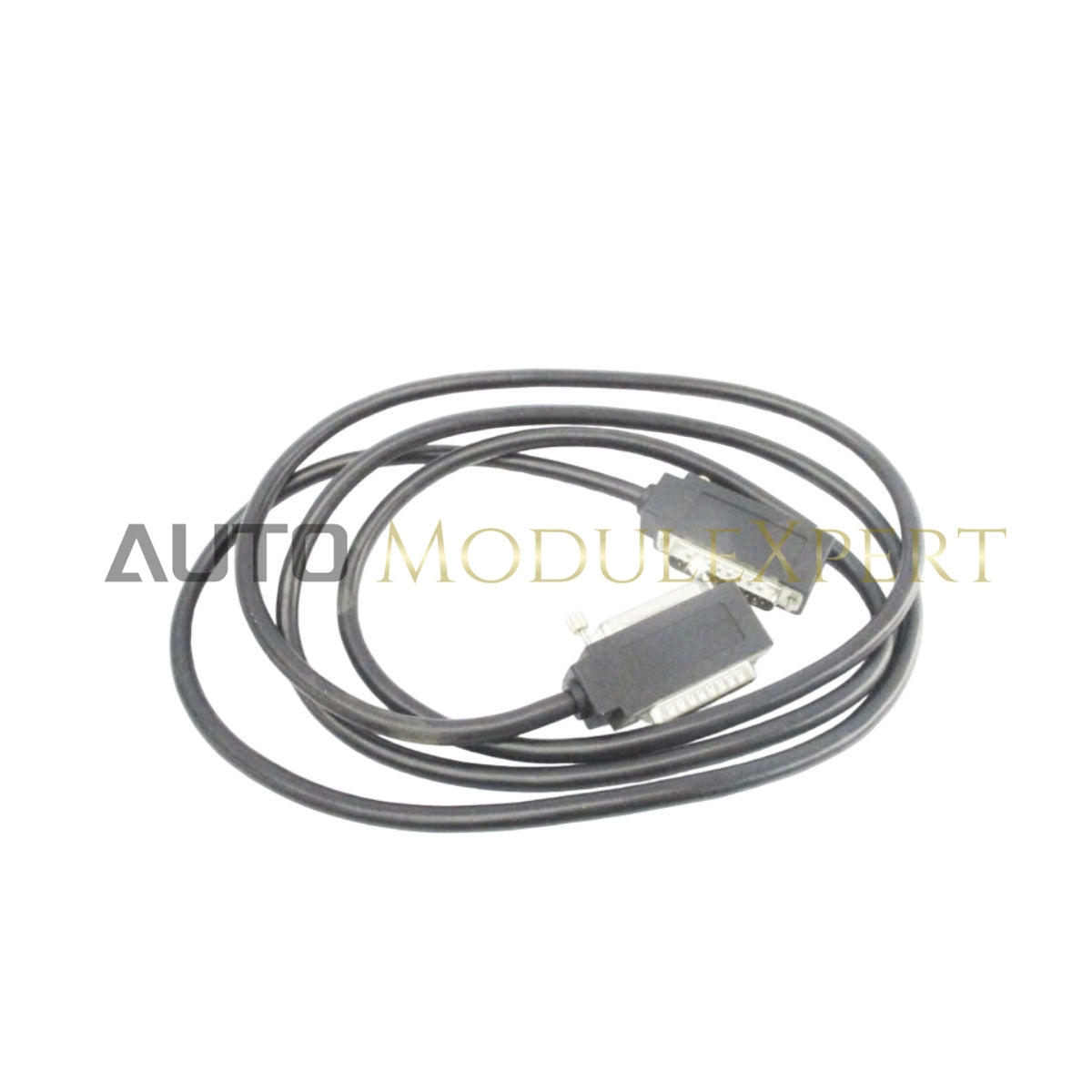

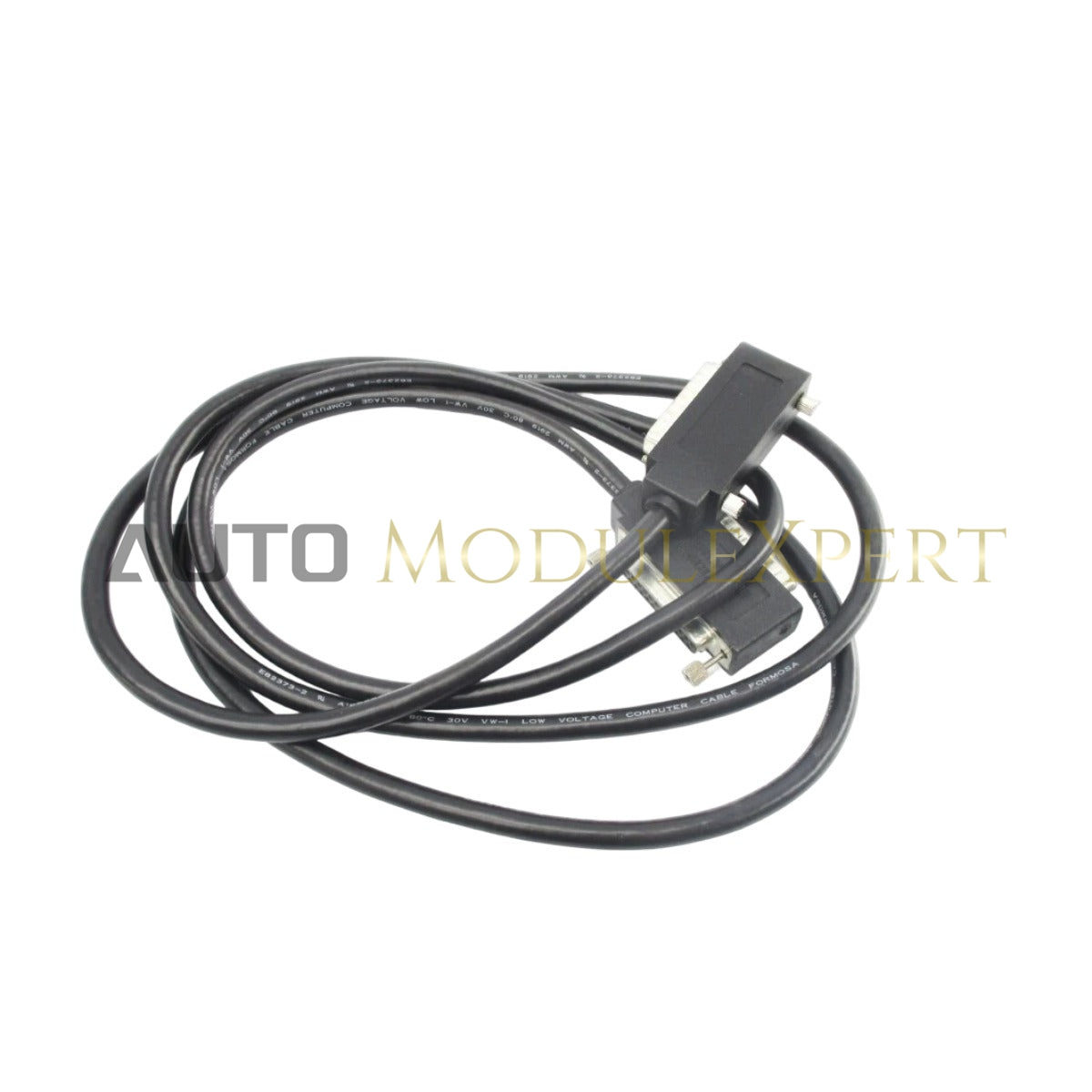

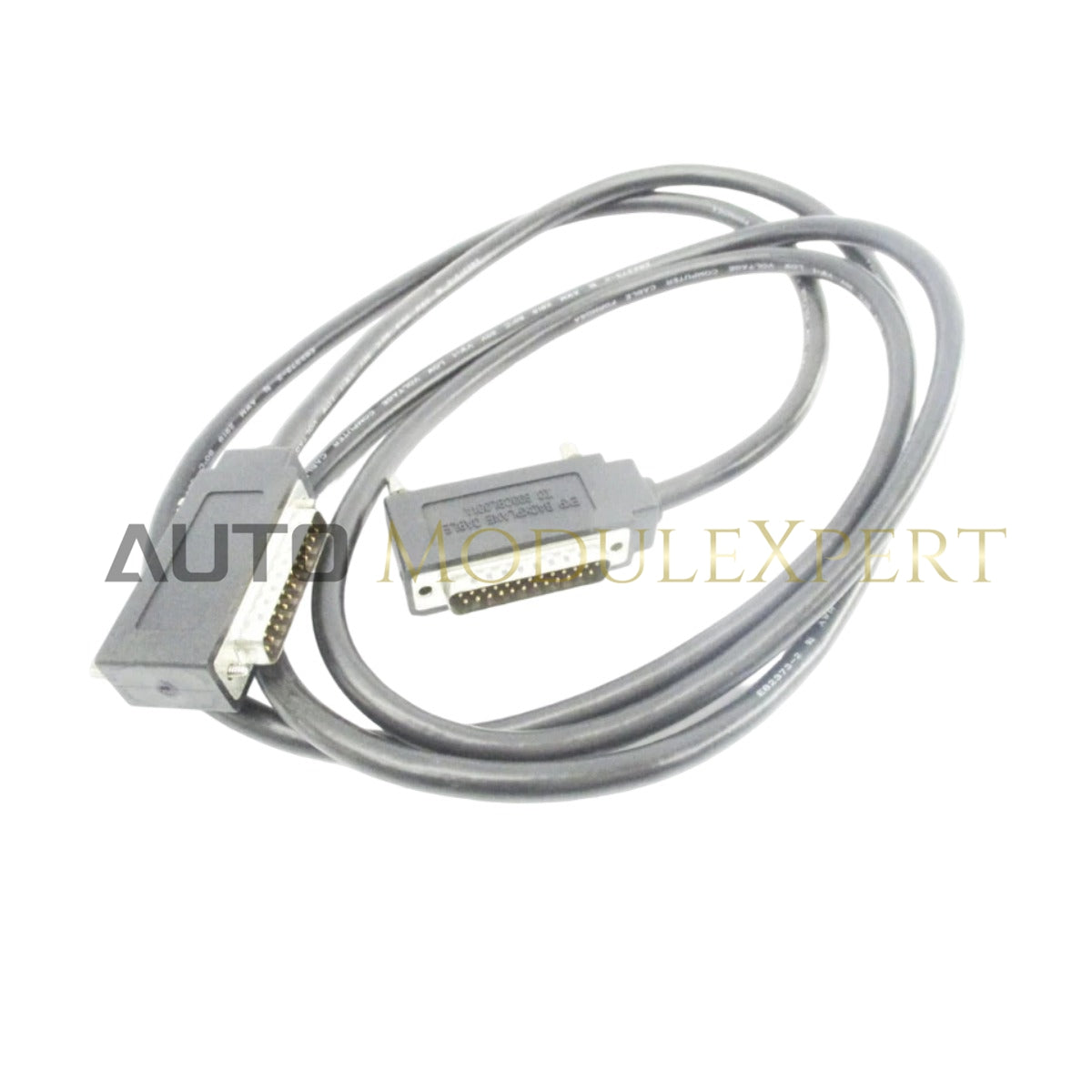

The IC693CBL301 is a high-performance I/O expansion Wye cable for GE Fanuc Series 90-30 PLC systems. With a 6-foot (1.83 m) length and branched connector design, it enables reliable communication between the CPU baseplate and multiple expansion or remote baseplates. Its fully shielded construction ensures strong EMI protection and stable data transmission in industrial environments. Supplied as 100% Brand New original stock, it guarantees dependable connectivity for scalable automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | I/O Expansion Wye Cable |
| Length | 6 ft (1.83 m) |
| Shielding | 100% Continuous Shield Coverage |
| Connector Configuration | 1× 25-pin D-type Male (Source) |
| 1× Male + 1× Female (Wye/Expansion End) | |
| Max Expansion Distance | 50 ft (Total expansion baseplates run) |
| Max Remote Distance | 700 ft (Total remote baseplates run) |
| System Capacity | Up to 7 cable runs per system |
| Compatibility | Series 90-30 PLC Systems |
Engineering Advantages
Flexible Topology Support
Wye configuration allows both linear and branched system layouts, supporting complex multi-rack architectures.
Superior Noise Immunity
Full shielding protects high-speed communication signals from EMI, ensuring reliable data transfer near high-power equipment.
Plug-and-Play Integration
Pre-configured 25-pin connectors eliminate wiring errors and significantly reduce installation and commissioning time.
Mechanical Durability
Industrial-grade jacket and molded strain relief enhance resistance to vibration, bending, and long-term wear.
FAQs
What is the difference between expansion and remote baseplates?
Expansion baseplates are installed within 50 ft of the CPU using the standard I/O bus. Remote baseplates can be installed up to 700 ft away but require dedicated remote power supplies for signal integrity.
Can this cable connect Series 90-30 to RX3i systems?
No. This cable is designed specifically for Series 90-30 architectures. Cross-platform use should follow official migration guidelines.
Can the Wye connector link multiple racks?
Yes. The dual connector end allows connection to one rack while providing an additional port to extend the network to another rack.
How is the cable shielding grounded?
Shield grounding is achieved through the D-shell connectors. Ensure proper grounding of the baseplate mounting hardware to maintain effective EMI protection.
