Product Overview

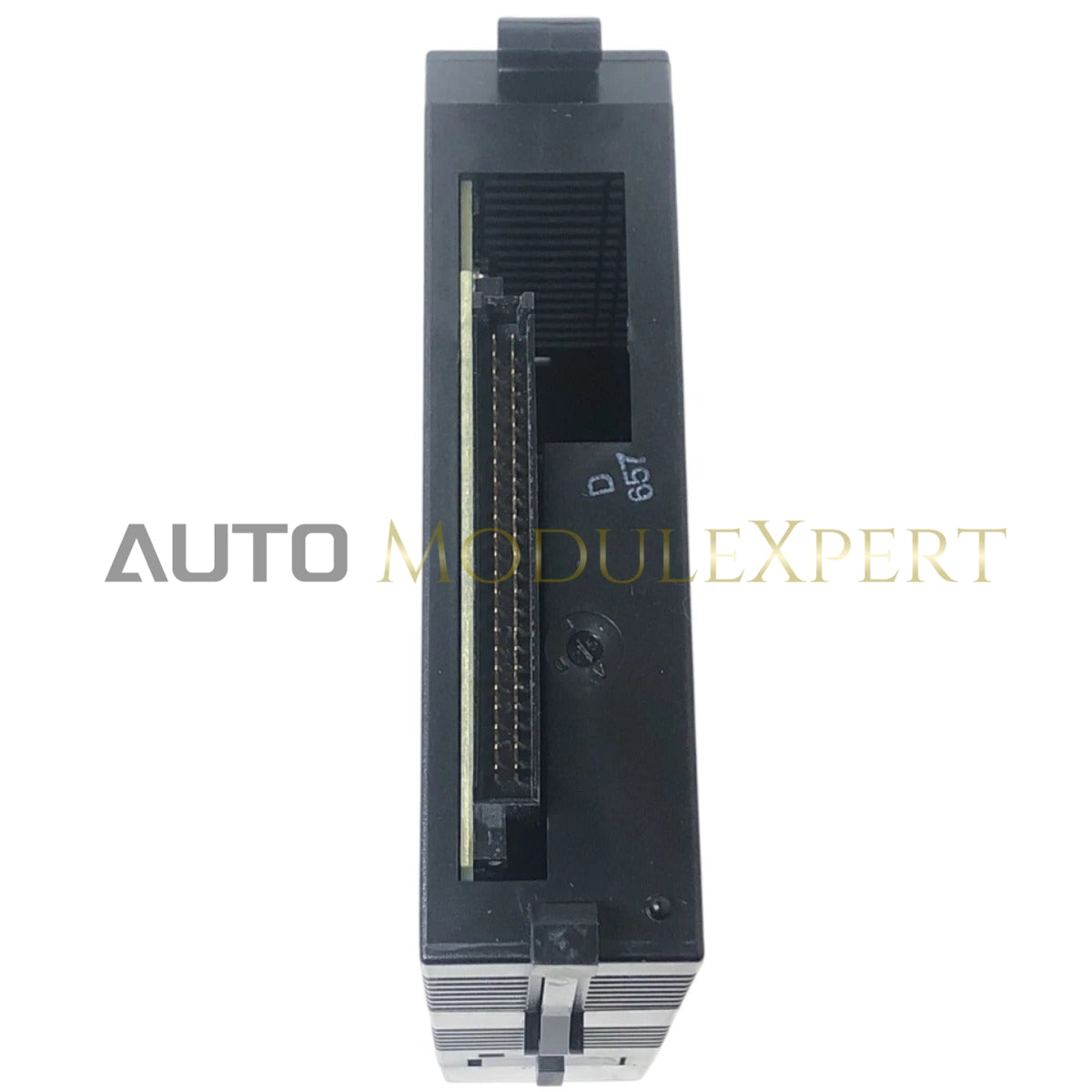

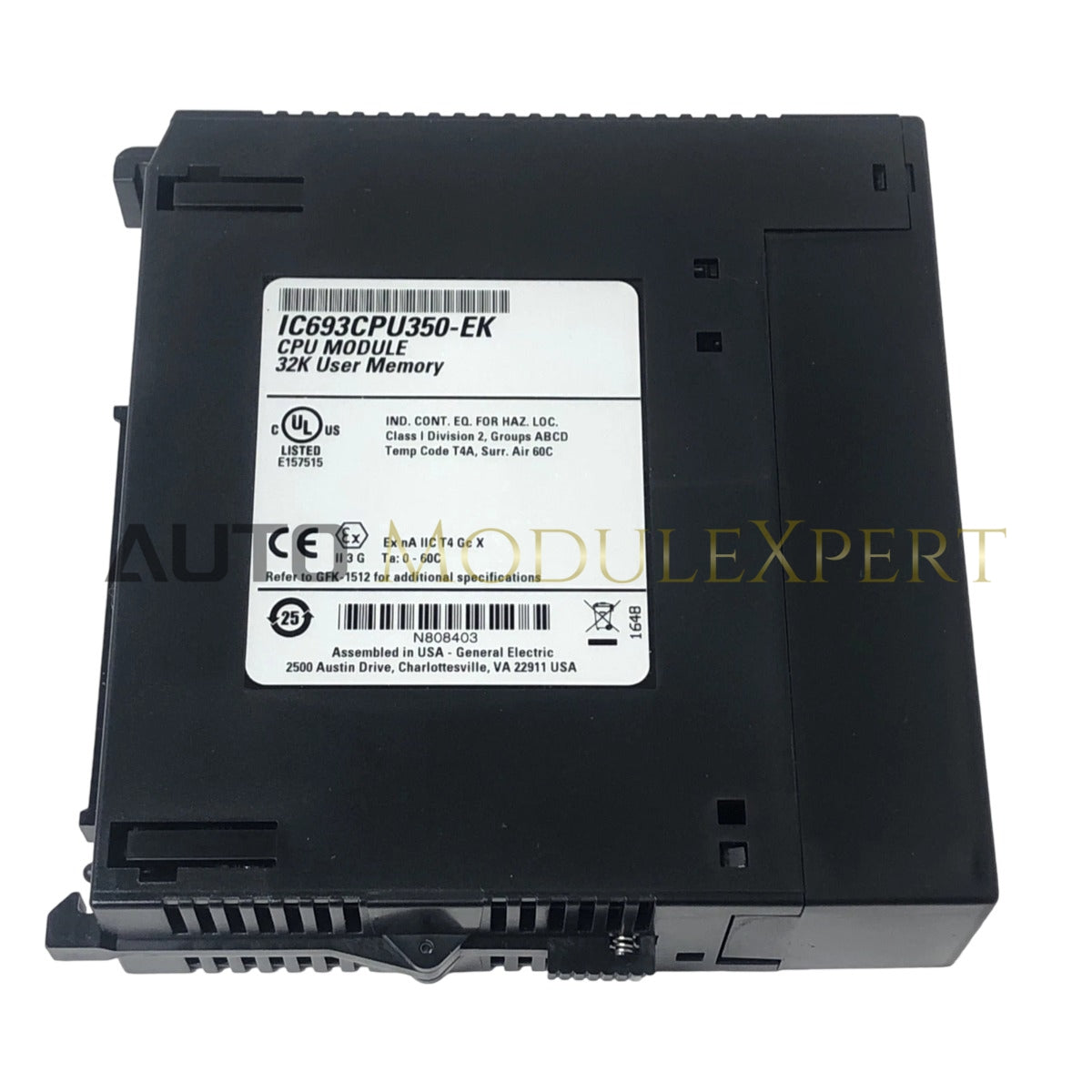

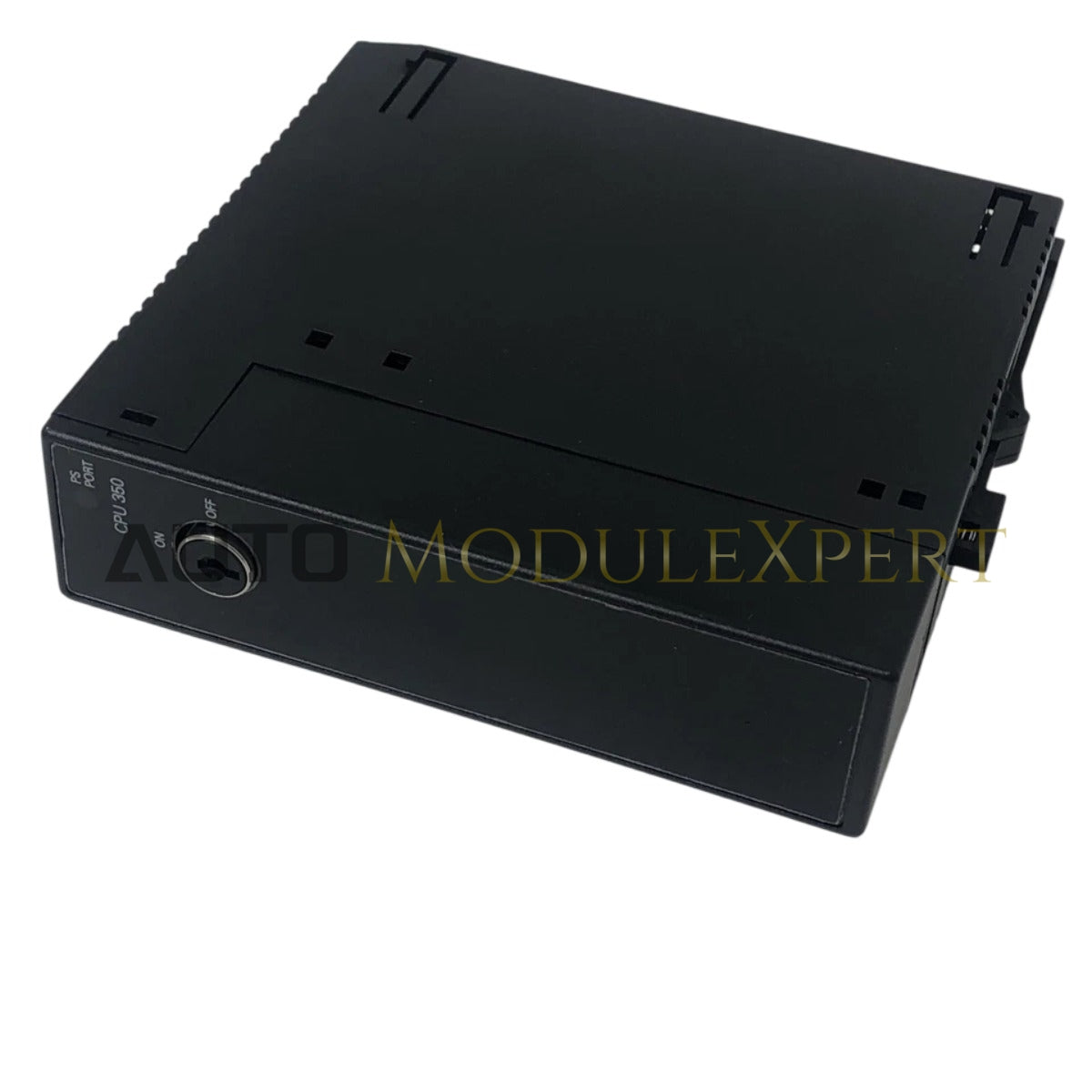

The IC693CPU350-EK is a mid-range processor for the GE Fanuc Series 90-30 PLC system. It executes control logic for both discrete and analog applications and is designed for reliable industrial automation performance. Based on the 80186EX microprocessor, it offers improved processing capability in a compact single-slot design. Supplied as 100% brand new, original factory condition for maximum stability and service life.
Technical Specifications
| Specification | Details |
|---|---|
| Processor Type | 80186EX |
| User Memory | 32K Bytes |
| Processing Speed | 0.22 ms per 1K Boolean logic |
| Discrete I/O Capacity | 2,048 Inputs / 2,048 Outputs |
| Analog I/O Capacity | 1,024 Inputs / 512 Outputs |
| Register Memory | 9,999 words |
| Communication | SNP / SNP-X via power supply port |
| Dimensions | 3.3 × 13.5 × 12.7 cm |
| Weight | 0.2 kg |
Engineering Advantages
Efficient Logic Processing
80186EX architecture enables fast scan times for high-speed control applications.
Simple Software Configuration
All settings are handled via software, eliminating hardware jumpers and reducing setup errors.
Stable Memory Operation
32K user memory supports reliable program execution and data retention in mid-size systems.
Low Thermal Design
Optimized power consumption ensures stable 24/7 operation in standard industrial enclosures.
FAQs
Is it compatible with Series 90-30 racks?
Yes, it is a direct Slot 1 replacement CPU for standard 90-30 baseplates.
What software is required?
Compatible with Proficy Machine Edition and Logicmaster 90.
How is data protected during power loss?
Memory is backed up via the system battery in the power supply module.
