Product Overview

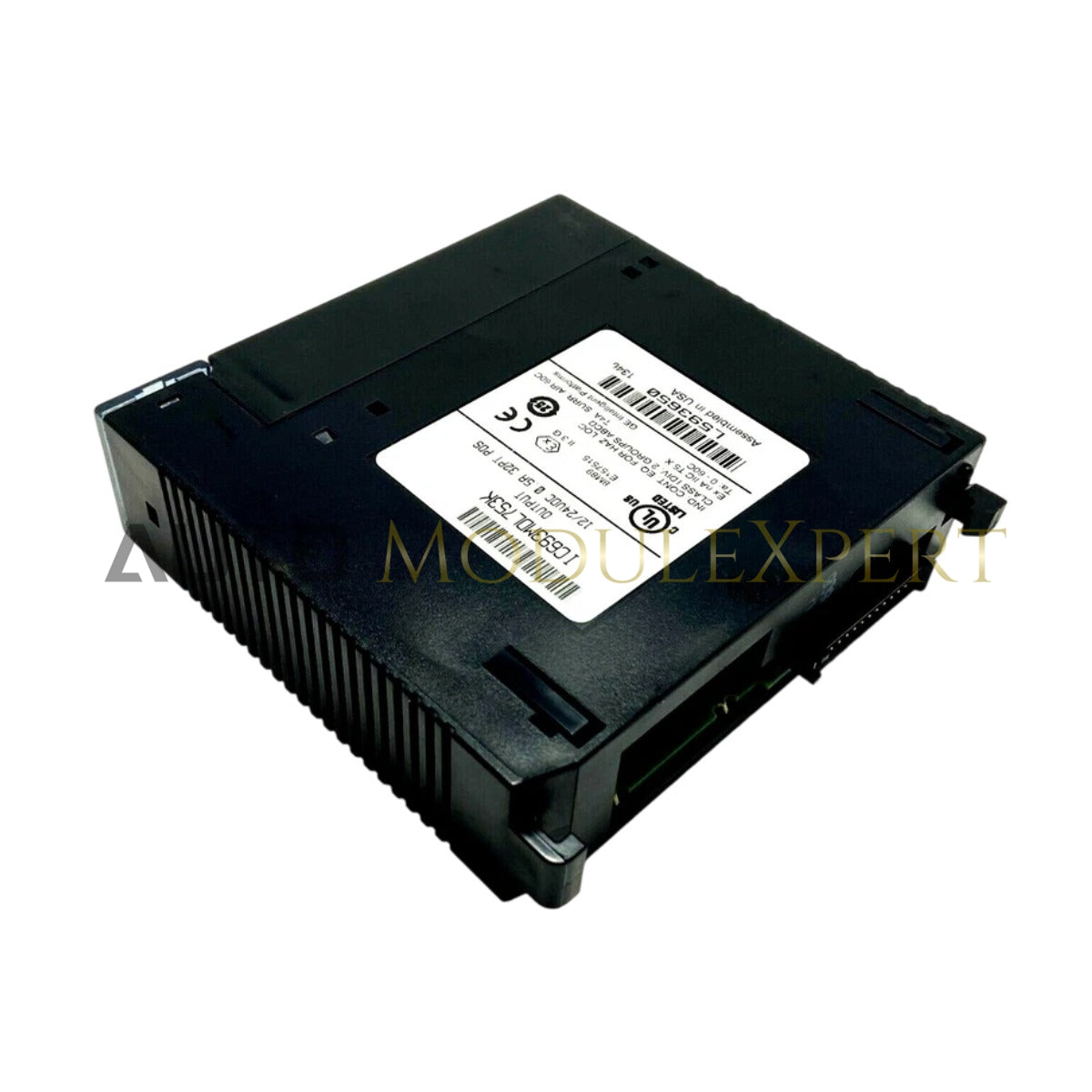

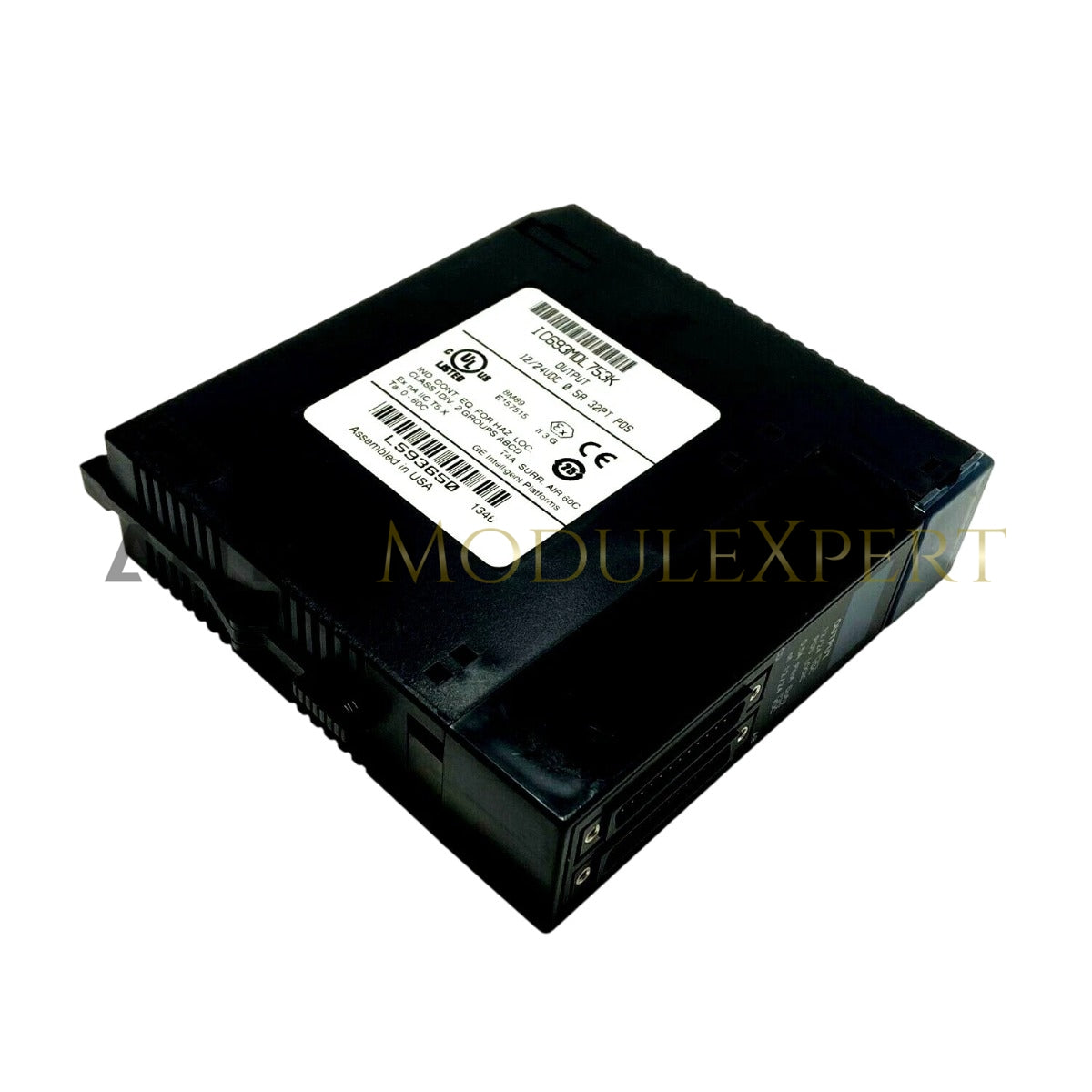

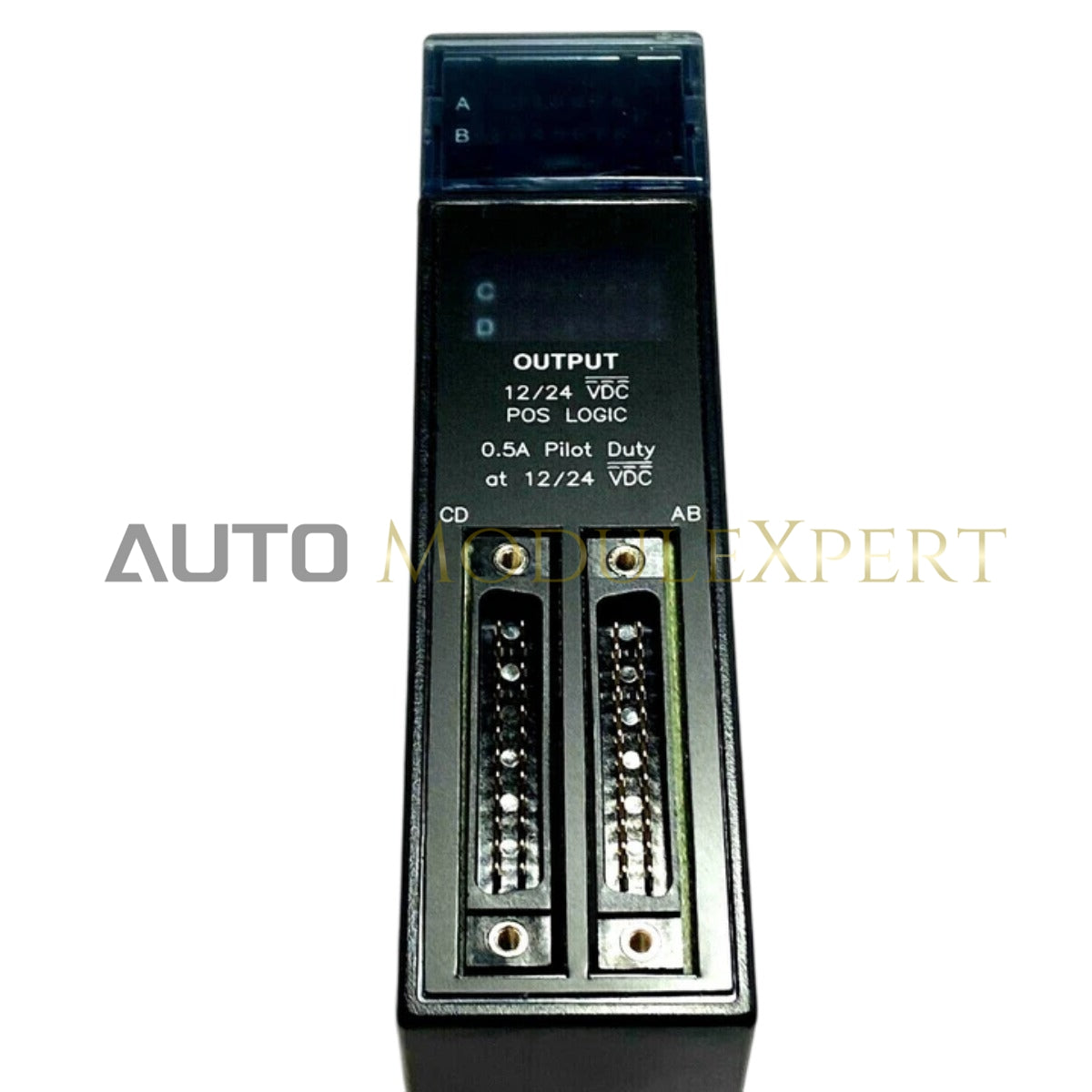

The IC693MDL753K is a high-density 32-point discrete output module for the GE Fanuc Series 90-30 PLC system. It provides sourcing-type DC outputs for controlling devices such as solenoids, pilot lights, and interposing relays. Designed for compact, high-I/O applications, it reduces cabinet space requirements while maintaining reliable switching performance. Supplied as 100% brand new, original factory condition for stable long-term operation.
Technical Specifications
| Specification | Details |
|---|---|
| Output Type | 12/24 VDC Discrete (Sourcing) |
| Operating Voltage | 12–24 VDC (+20%, -15%) |
| Number of Points | 32 (4 groups of 8) |
| Output Current | 0.5 A per point max |
| Max Current per Group | 2.0 A |
| Response Time | ≤ 2 ms (ON/OFF) |
| Backplane Consumption | 260 mA @ 5 VDC |
| Weight | 0.36 kg |
Engineering Advantages
High-Density Output Design
32 outputs in a single slot significantly reduce rack space and system complexity.
Sourcing Output Architecture
Switches positive DC voltage, simplifying wiring for standard industrial DC loads.
Group Isolation Protection
Four isolated groups of eight outputs improve fault containment and system reliability.
LED-Based Diagnostics
32-channel LED indicators allow fast troubleshooting of field devices and logic status.
FAQs
What connector is required?
A 50-pin high-density connector is required for field wiring.
Can it switch AC loads?
No, it is DC-only. For AC loads, use relay output modules.
Is it backward compatible?
Yes, fully compatible with earlier MDL753 revisions.
