Product Overview

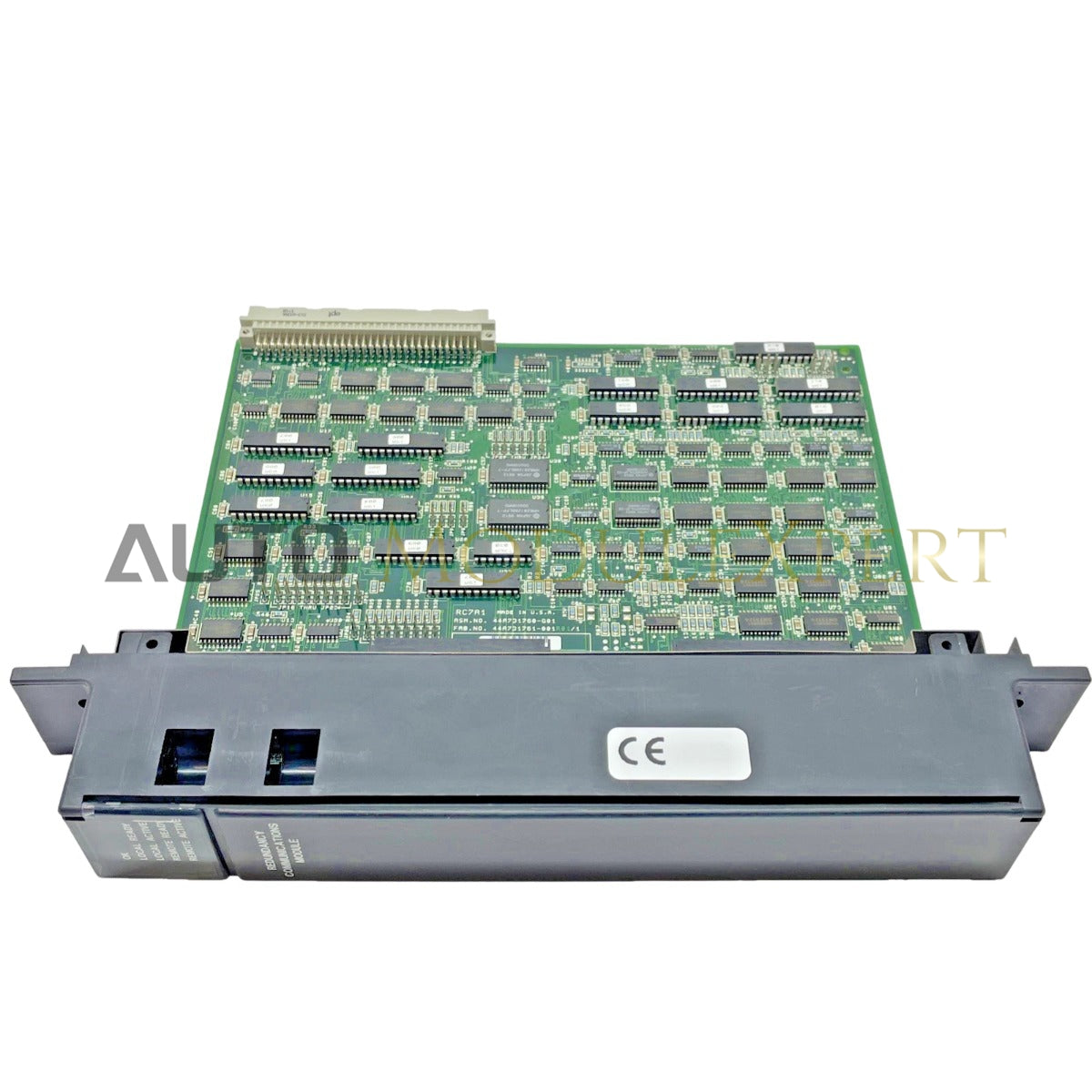

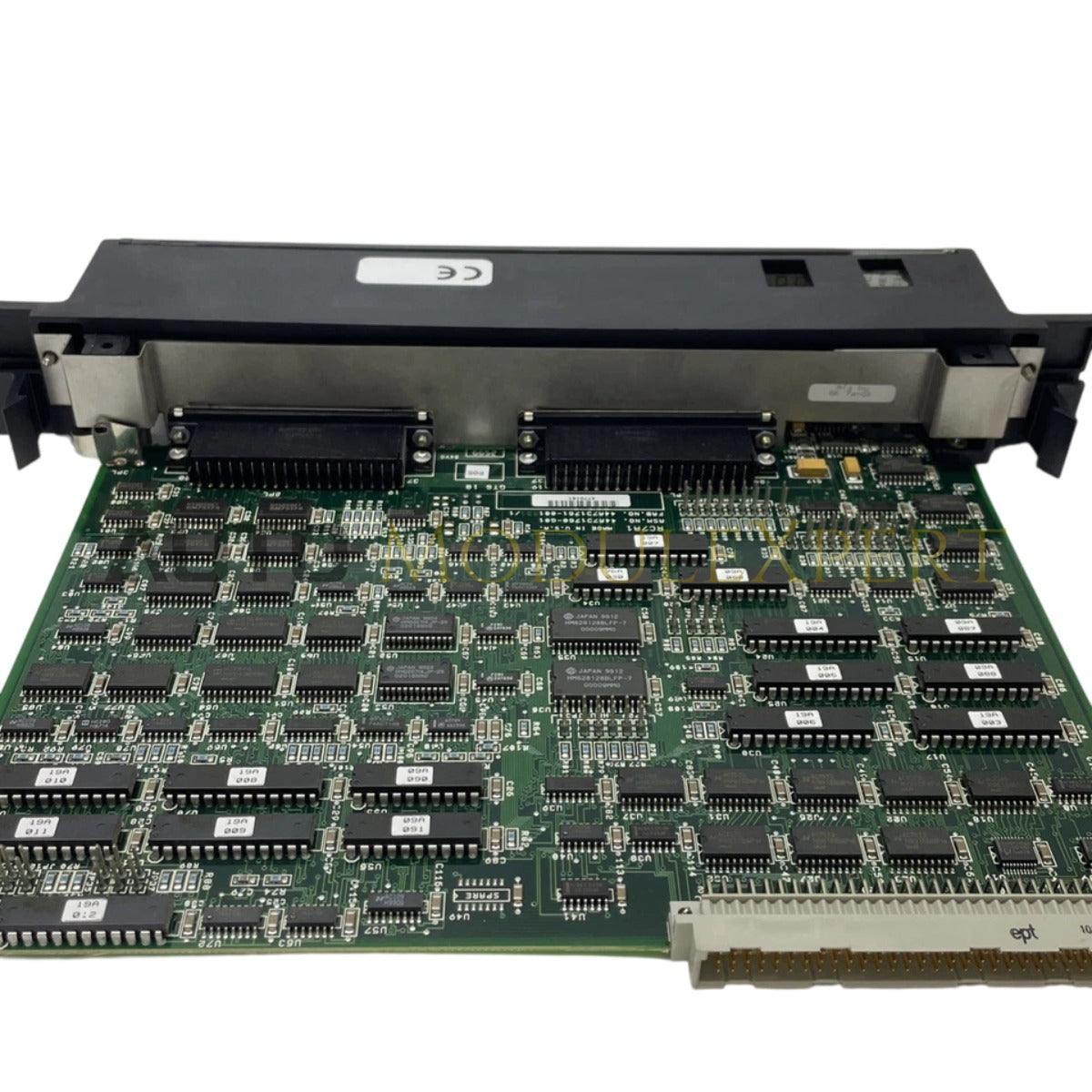

The GE Fanuc IC697RCM711C is a Redundancy Communication Module for the Series 90-70 PLC platform. It enables synchronization between primary and secondary CPUs in a Hot Standby redundant system, ensuring both processors maintain identical runtime data. This allows near-instant failover in the event of a CPU or system fault. Supplied 100% brand new in factory-sealed packaging.
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | Redundancy Communication Module (RCM) |
| Slot Requirement | Single slot (Rack 0, slots 2–9) |
| Current Consumption | 0.7–1.2 A @ 5 VDC |
| Sync Data Rate | 500 KB/s |
| Indicators | 5 status LEDs |
| Control | Manual transfer pushbutton |
| Interface | High-speed parallel backplane |
| Max Distance | 15 m (50 ft) |
| Weight | 0.5 kg |
Engineering Advantages
-
Hot Standby redundancy support for continuous plant operation
-
Fast failover (<100 ms typical) to minimize process interruption
-
Real-time CPU synchronization of memory and I/O states
-
Manual transfer control button for maintenance and testing without shutdown
-
Dedicated high-speed sync channel independent of normal I/O traffic
FAQs
What is required for a redundant system?
Two CPUs, two RCM modules, two racks, and appropriate bus transmitter modules.
Is it backward compatible?
Yes, the “C” revision is compatible with earlier IC697RCM711 versions.
What cables are used?
IC697CBL811 or IC697CBL826 redundancy cables, depending on distance.
How is it configured?
Through legacy 90-70 configuration tools or Proficy Machine Edition following redundancy setup procedures.
