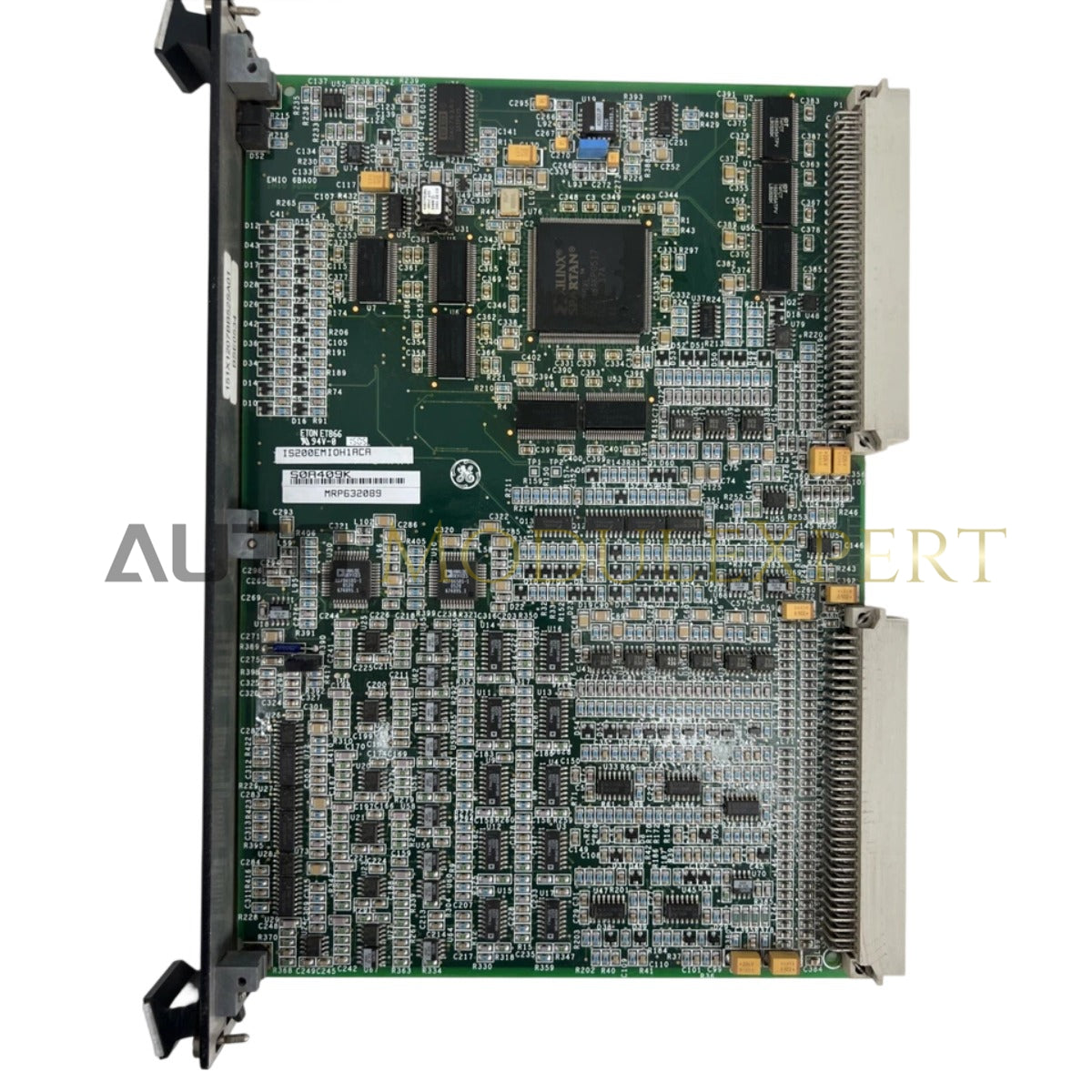

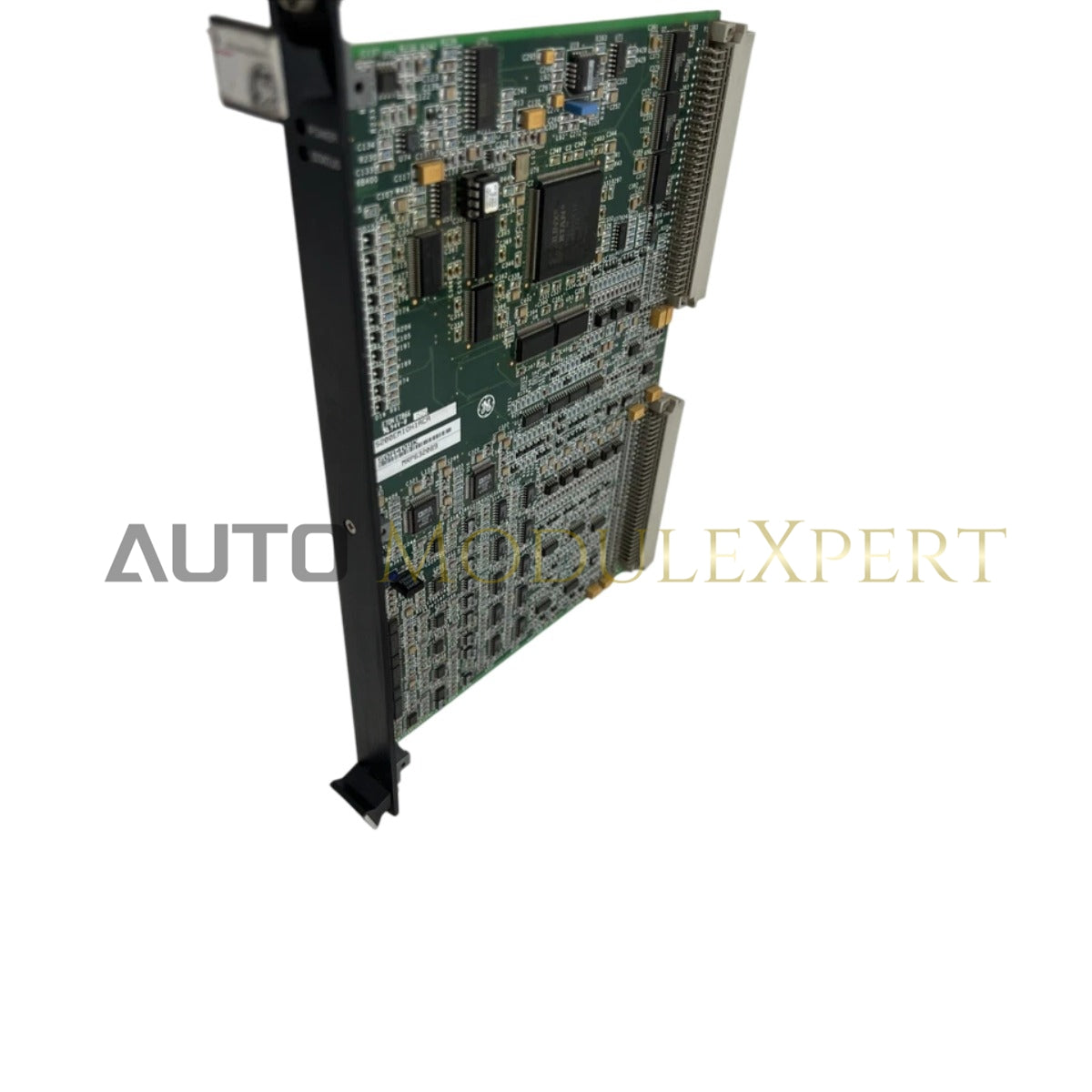

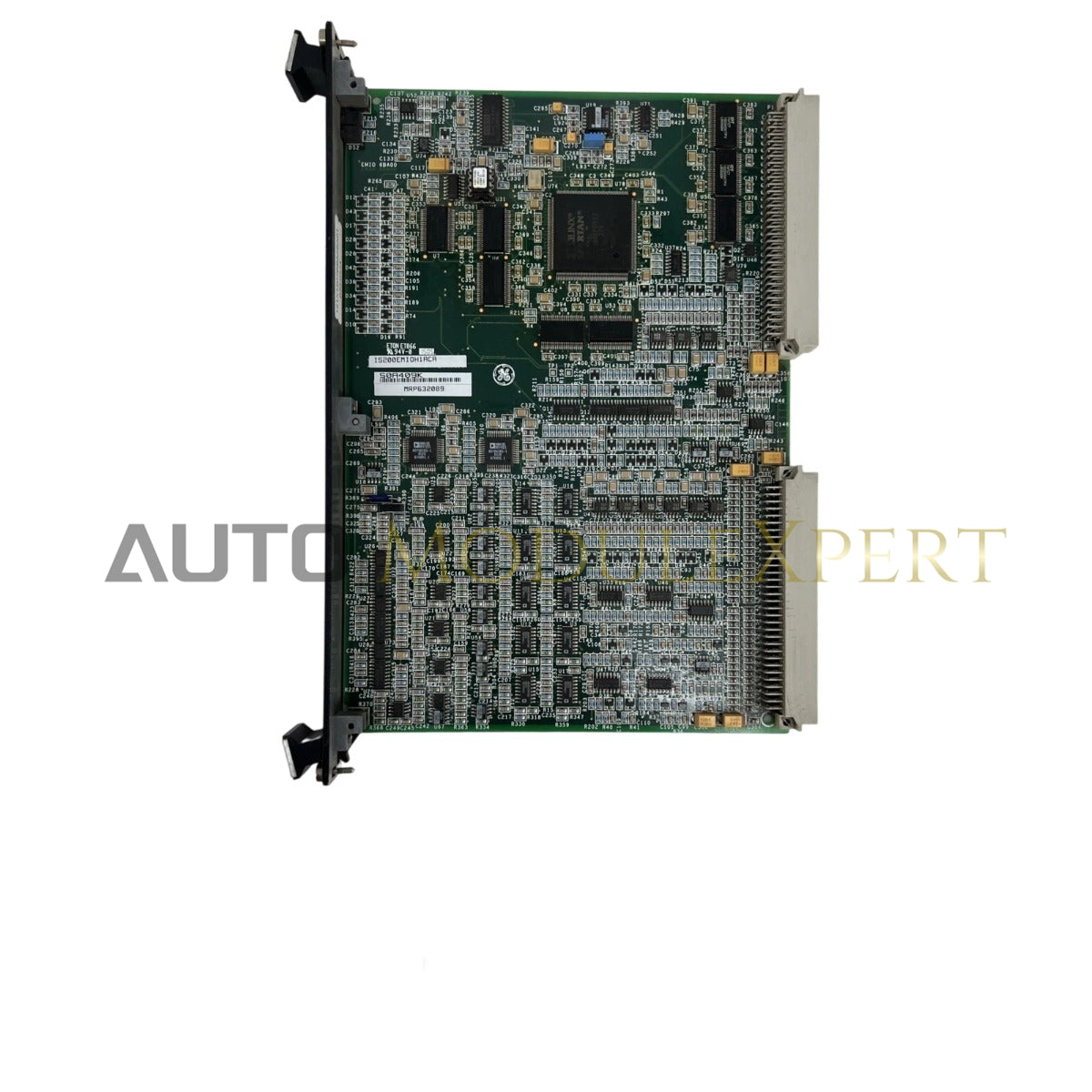

The GE IS200EMIOH1ACA, also cataloged as the EMIOH1A Printed Circuit Board, operates as a dedicated hardware component for digital and analog I/O signal processing within Mark VI control system platforms.

Hardware Specifications

PLC and Control System Communication Architecture

The EMIOH1A module integrates into the Mark VI backplane bus, facilitating deterministic communication between field instrumentation and the primary controller. The board utilizes high-speed backplane bus communication velocity to synchronize I/O scanning cycles. Firmware flash compatibility is managed through the host controller's software environment, ensuring that the module maintains version parity with the system configuration. Data integrity during transit is preserved through standard hardware-level protocols, supporting real-time deterministic monitoring without latency degradation.

Frequently Asked Questions (FAQ)

Q: What are the primary power requirements for this module when installed in a loaded rack?

A: The module requires a nominal 24 VDC supply. Total power consumption is approximately 10 W; however, system designers must account for additional load from connected field devices when calculating total backplane power distribution.

Q: Is this board compatible with live insertion or hot-swapping?

A: Like most high-density I/O boards in the Mark VI series, the module is not designed for hot-swapping. Ensure the associated rack slot power is disabled before installation or extraction to prevent electrical damage to the backplane pins.

Field Installation Guidelines

• Static Precautions: Always use an ESD-safe wrist strap connected to the designated system ground point before handling the PCB to prevent damage to sensitive CMOS components.
• Mounting: Ensure the board is fully seated within the rack card guides. Secure the top and bottom retaining screws to ensure proper grounding to the chassis and mechanical stability against vibration.
• Wiring: Maintain a minimum distance of 100 mm between signal cabling and high-voltage AC power lines to minimize electromagnetic interference (EMI) on the analog I/O channels.
• Shielding: Terminate cable shields at the designated system common ground point. Avoid floating shields, as they can act as antennas for high-frequency noise in industrial environments.
