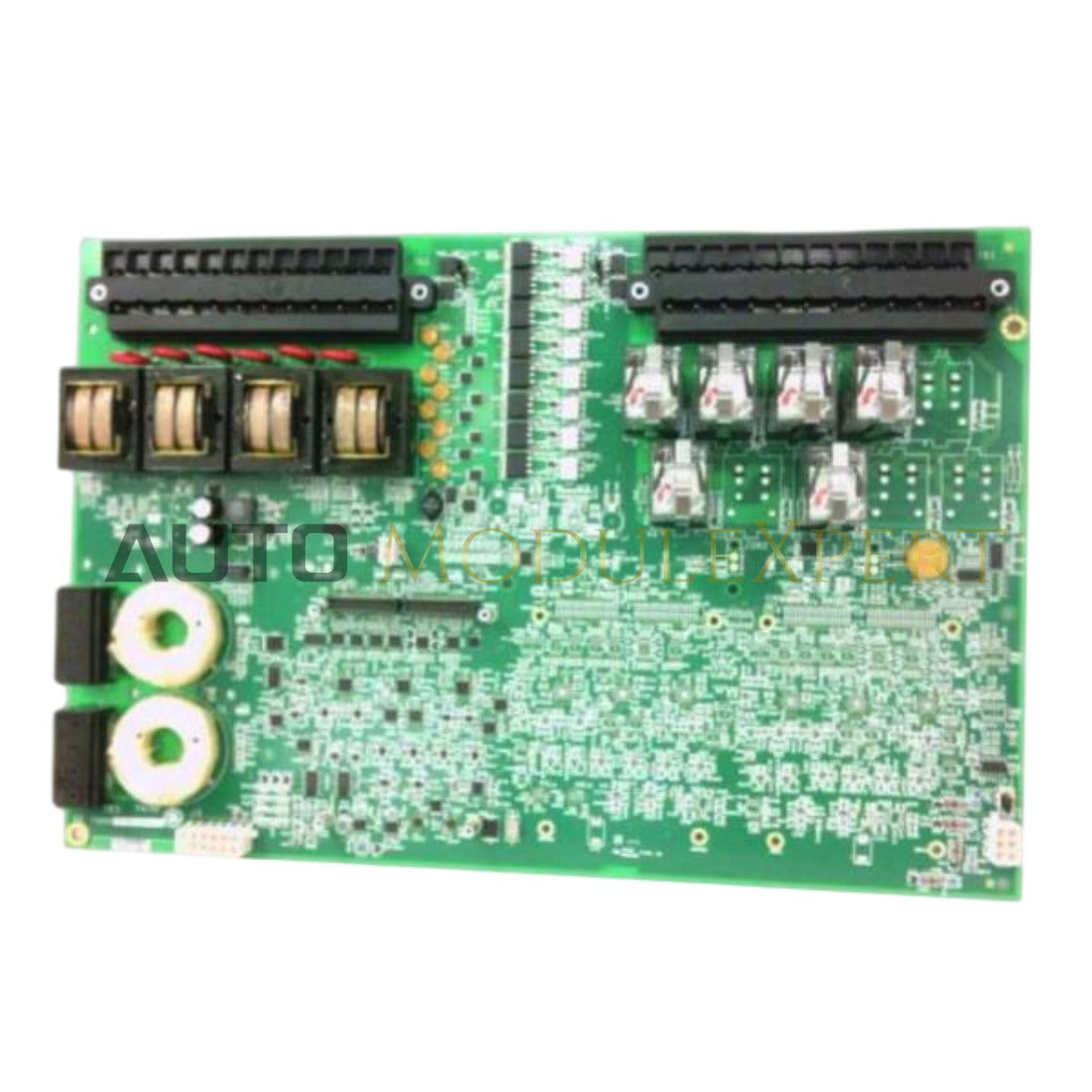

The GE IS200ESYSH3A, also cataloged as the IS200ESYS Interface Board, operates as a dedicated hardware component for high-speed serial link communication within EX2100E control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200ESYSH3A |
| Brand | GE |
| Origin | USA |
| Weight | 0.45 kg |
| Dimensions | Standard EX2100E form factor |
| Operating Temp | Standard Industrial |
| Power Consumption | System bus nominal |
| Core Function | High-speed serial communication |
Firmware and Backplane Communication
The IS200ESYSH3A facilitates deterministic data exchange by managing the high-speed serial link between the EX2100E controller and auxiliary drive interface modules. The module utilizes backplane bus communication velocity settings optimized for low-latency feedback transmission. Firmware flash compatibility is strictly managed through the EX2100E control suite, requiring users to verify hardware revisions against the current system firmware version to ensure successful handshaking. I/O density scaling is maintained by the board's ability to aggregate multi-channel serial data into a unified stream for the primary processor.
Frequently Asked Questions
Q: Is the IS200ESYSH3A module backwards compatible with previous versions of the EX2100 system?
A: Compatibility is dependent on the specific firmware version and backplane revision. Consult the EX2100E system manual for the specific hardware/firmware matrix requirements before attempting to install this module as a replacement for older interface boards.
Q: What are the primary indicators of a communication failure on this board?
A: Diagnostic LEDs on the module indicate link status and internal fault conditions. A loss of communication or a "Bus Error" message in the controller diagnostic software typically indicates either a physical failure of the serial link cable or an internal synchronization fault within the interface board.
Field Installation Guidelines
- Verify that all high-speed serial cabling is properly shielded and grounded to prevent electromagnetic interference from the drive's power section.
- Ensure the module is fully seated in the designated backplane slot to prevent intermittent data loss caused by poor pin contact.
- Before initialization, verify that the module's physical address settings or configuration jumpers match the requirements of the EX2100E cabinet map.
- Confirm that the board is protected against electrostatic discharge (ESD) during handling to prevent damage to the high-density serial transceiver components.
- Once installed, perform a system diagnostic scan to verify that the high-speed serial link is established and that no frame errors are being reported by the host controller.
